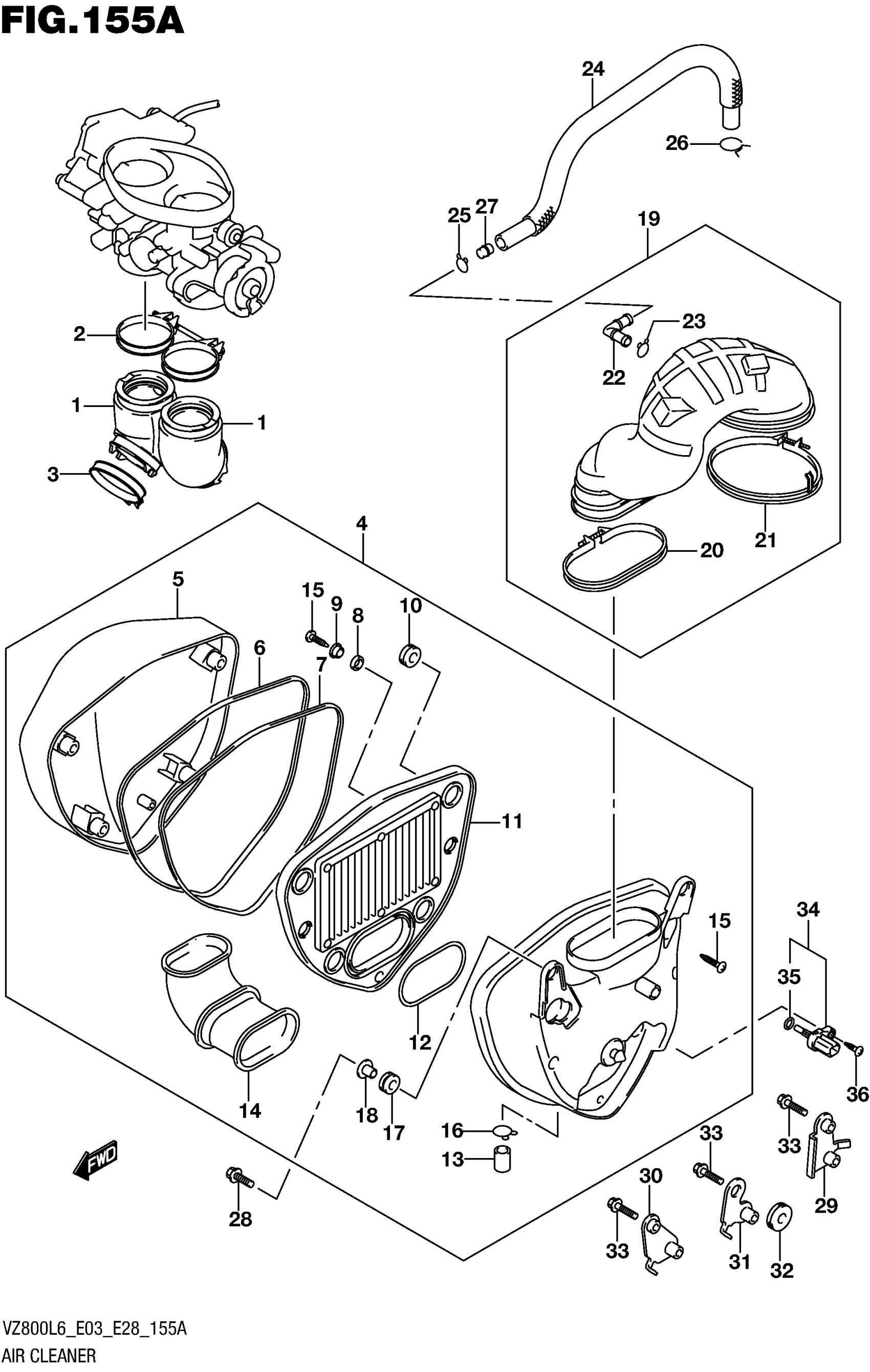

Suzuki VZ800L6 (2016) AIR CLEANER Diagram

#

Description
Price

1

PIPE,INTAKE This part replaces 13111-41F11.

13111-41F12

$34.28

2

CLAMP, INTAKE PIPE

13170-39G00

$29.83

3

CLAMP, INTAKE PIPE HEAD

13170-15G00

$6.42

4

CASE ASSY

13701-39G30

$421.85

5

.CAP

13741-39G30

$204.88

6

.GASKET

13727-39G20

$14.78

7

.GASKET

13726-39G20

$17.70

8

.CUSHION

13747-39G20

$3.78

9

.WASHER

09169-06082

$4.32

10

.CUSHION

13747-41F00

$3.11

11

.FILTER

13780-39G20

$52.34

12

.GASKET, FILTER

13746-39G20

$12.40

13

.PLUG

13859-41B10

$7.38

14

.TUBE, INLET

13891-39G20

Unavailable

15

.SCREW

03541-0525B

$2.32

16

.CLIP

09401-14301

$2.35

17

.CUSHION

09320-09016

$1.97

18

.COLLAR

13812-29C50

$2.70

19

TUBE ASSY, OUTLET

13880-39G21

Unavailable

20

.CLAMP

13826-41F20

$25.03

21

.CLAMP

13826-39G21

Unavailable

22

.JOINT

13858-14D20

$7.22

23

.CLIP

09401-15101

$2.26

24

TUBE, BREATHER

13853-39G20

Unavailable

25

CLIP

09401-15101

$2.26

26

CLIP

09401-16301

Unavailable

27

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.40

28

SCREW (6X20)

09139-06056

$3.23

29

BRACKET, NO.1

13761-39G20

$17.17

30

BRACKET, NO.2

13762-39G20

$17.17

31

BRACKET, NO.3

13763-39G20

$16.38

32

CUSHION

09320-08028

$3.04

33

BOLT

01547-0625A

$2.01

34

SENSOR, AIR TEMP

13650-41F10

$63.25

35

O-RING

13655-41F10

Unavailable

36

SCREW

03511-0516B

$2.28
