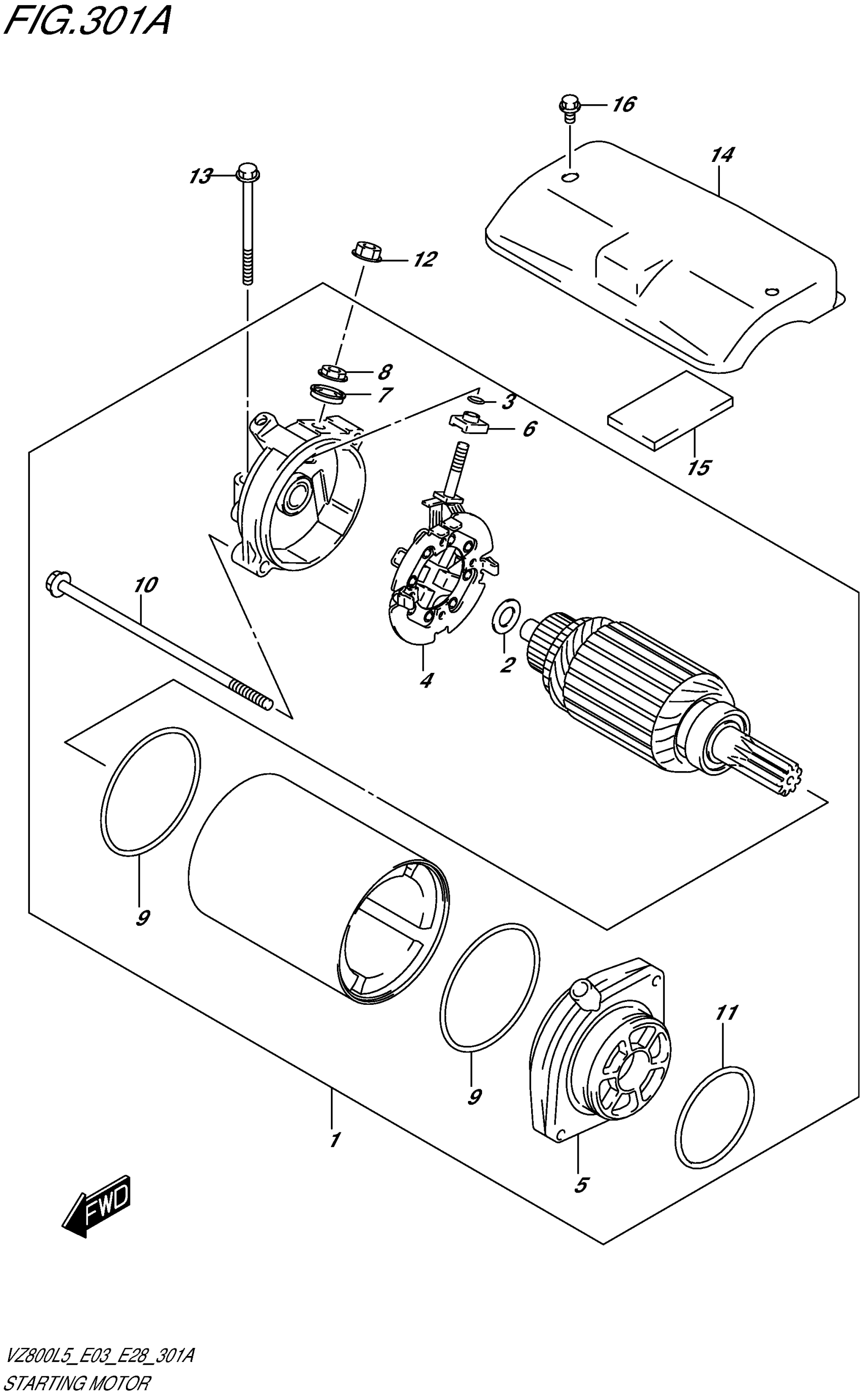

2015 Suzuki VZ800L5 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2015 Suzuki VZ800L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VZ800L5 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$616.93

In stock

2

SHIM SET

31170-43400

1
Out of stock

3

O RING

31143-38300

1

$5.75

In stock

4

BRUSH HOLDER SET (-)

31132-45C00

1

$80.57

In stock

5

BRACKET SET

31150-38A00

1
Out of stock

6

BUSHING

31172-38300

1

$5.71

In stock

7

BUSHING

31173-88C00

1
Out of stock

8

.NUT

08310-00067

1

$1.82

In stock

9

O RING

31264-44110

2

$13.40

In stock

10

BOLT

31281-31D00

2

$9.77

In stock

11

O RING

31156-38A00

1

$14.07

In stock

12

NUT

08361-3506A

1
Out of stock

13

BOLT (6X60)

09103-06261

2
Out of stock

14

COVER, STARTING MOTOR

31210-41F00

1

$19.68

In stock

15

DAMPER, MOTOR COVER

31212-38A10

1
Out of stock

16

BOLT

01547-0508A

—
Out of stock
