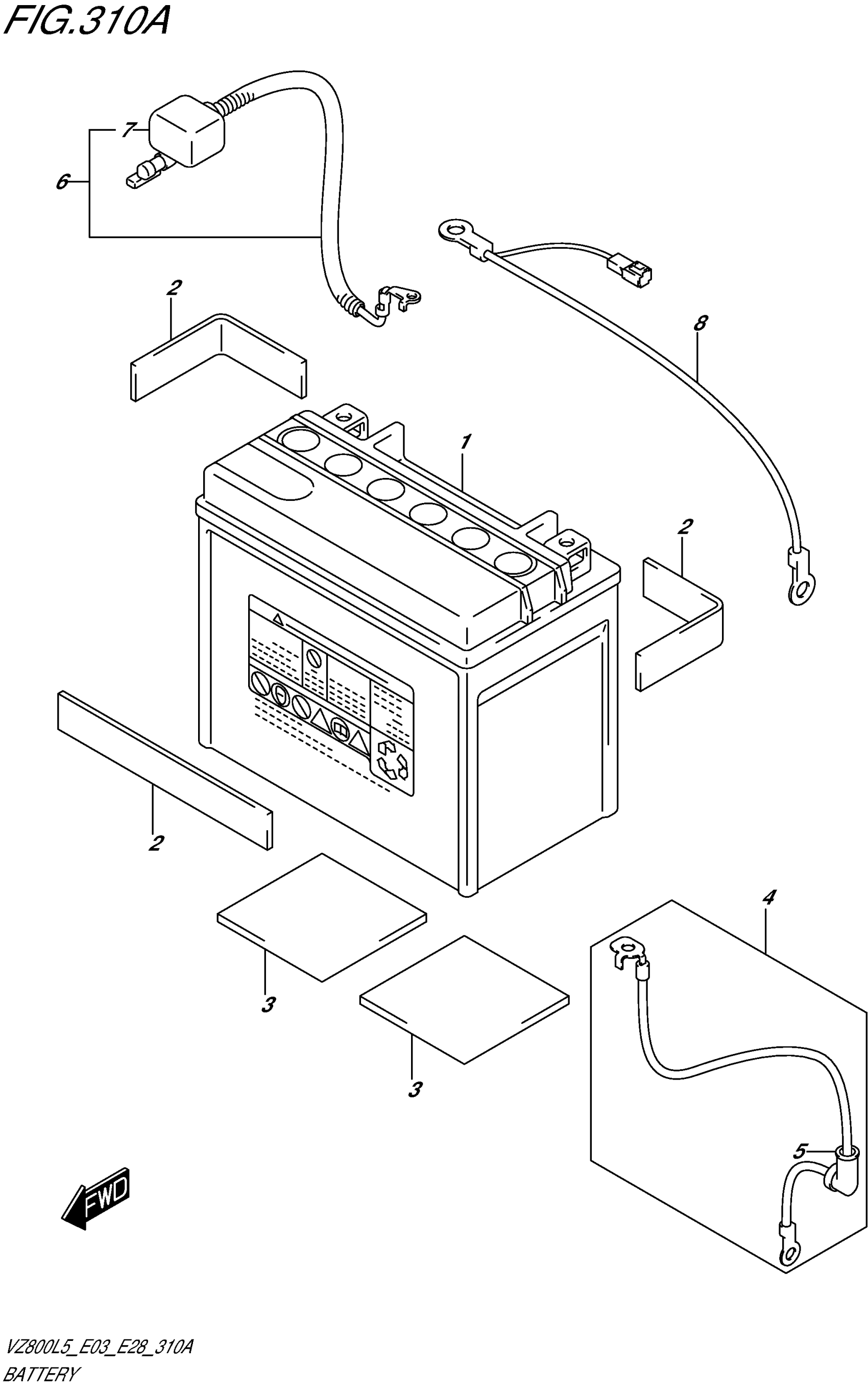

Suzuki VZ800L5 (2015) BATTERY Diagram

#

Description

Price

1

BATTERY (FTX12-BS,12V,10AH) This part replaces 33610-48E21.

33610-48E20

$124.92

2

CUSHION (170X95X3.0) | CUT AS REQUIRED

33651-37000

$4.09

3

CUSHION (50X50X5)

33652-20C00

$2.80

4

WIRE,STARTER MOTOR LEAD This part replaces 33810-41F00.

33810-41F01

$25.63

5

CAP, STARTER MOTOR

31861-48B10

$7.40

6

WIRE,BATTERY PLUS LEAD This part replaces 33820-48E00.

33820-48E01

$22.57

7

CAP, BATTERY PLUS

33624-16E00

$6.77

8

WIRE, BATTERY MINUS (-)

33860-41F00

$35.23
