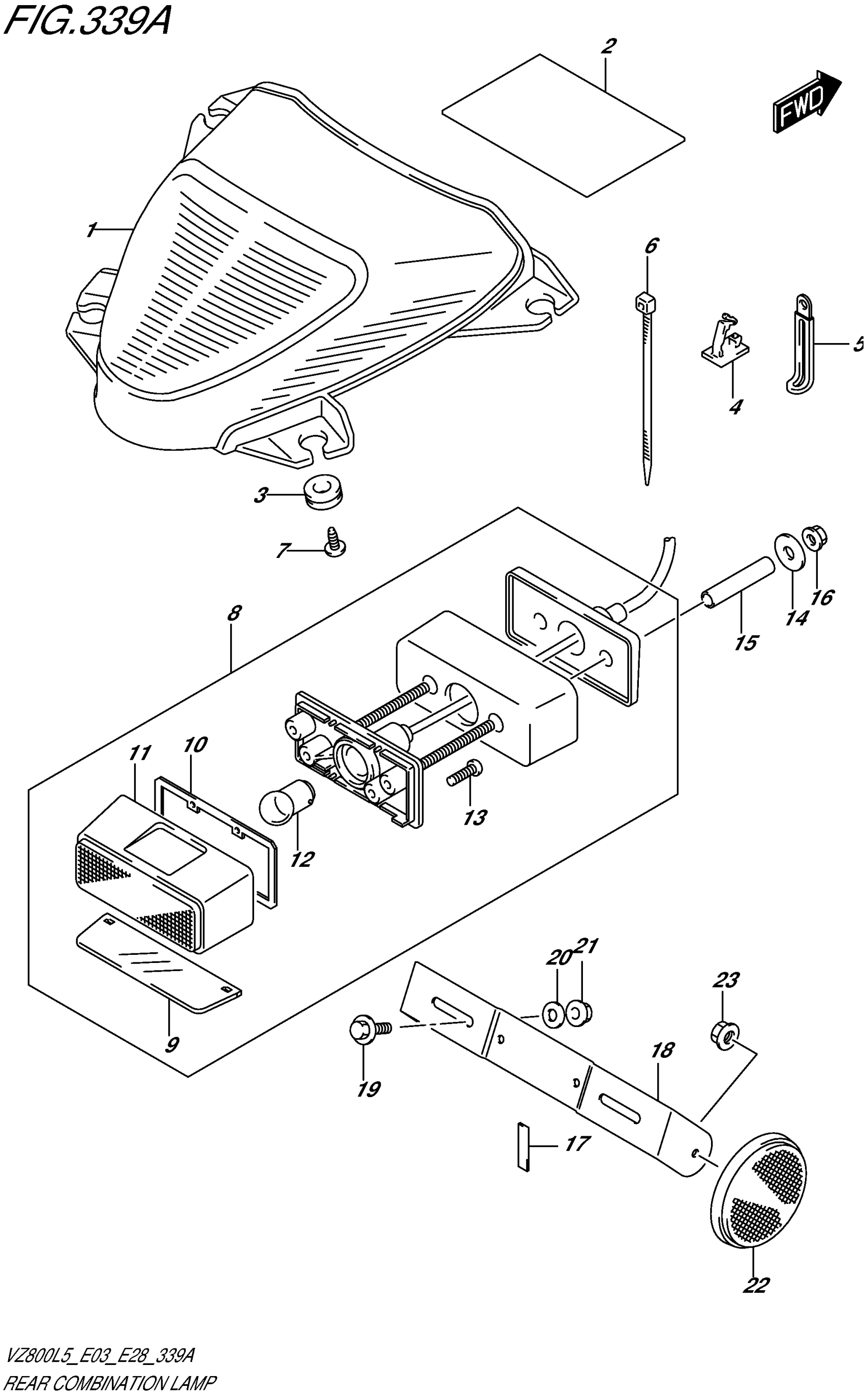

Suzuki VZ800L5 (2015) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-40H40

$607.07

2

CUSHION, LICENSE LEAD

35940-39G00

$5.00

3

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

4

CLAMP

09403-04310

$5.82

5

CLAMP (L:45)

09404-06429

$1.88

6

CLAMP (L:145)

09407-14407

$2.84

7

SCREW

03541-0512A

$1.41

8

LAMP ASSY, LICENSE This part replaces 35910-41G01.

35910-41G02

$83.48

9

LENS, LICENSE

35912-41G01

$14.98

10

GASKET

35913-41G00

$16.07

11

COVER, LICENSE LAMP

35917-41G00

$39.85

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

13

SCREW

03211-0416A

$1.48

14

WASHER (6.5X20X1.2)

09160-06077

$1.97

15

SPACER (6.5X9X8)

09180-06261

$1.97

16

NUT

08316-1006A

$2.25

17

CUSHION (10X30X6)

33652-47F00

$3.53

18

BRACKET, LICENSE PLATE

35927-39G30

$17.78

19

BOLT (6X16)

09116-06168

$2.57

20

WASHER (6.5X20X1.2)

09160-06077

$1.97

21

NUT

08316-1006A

$2.25

22

REFLECTOR ASSY, REAR SIDE

35970-14A10

$21.23

23

NUT

08316-1005A

$2.25
