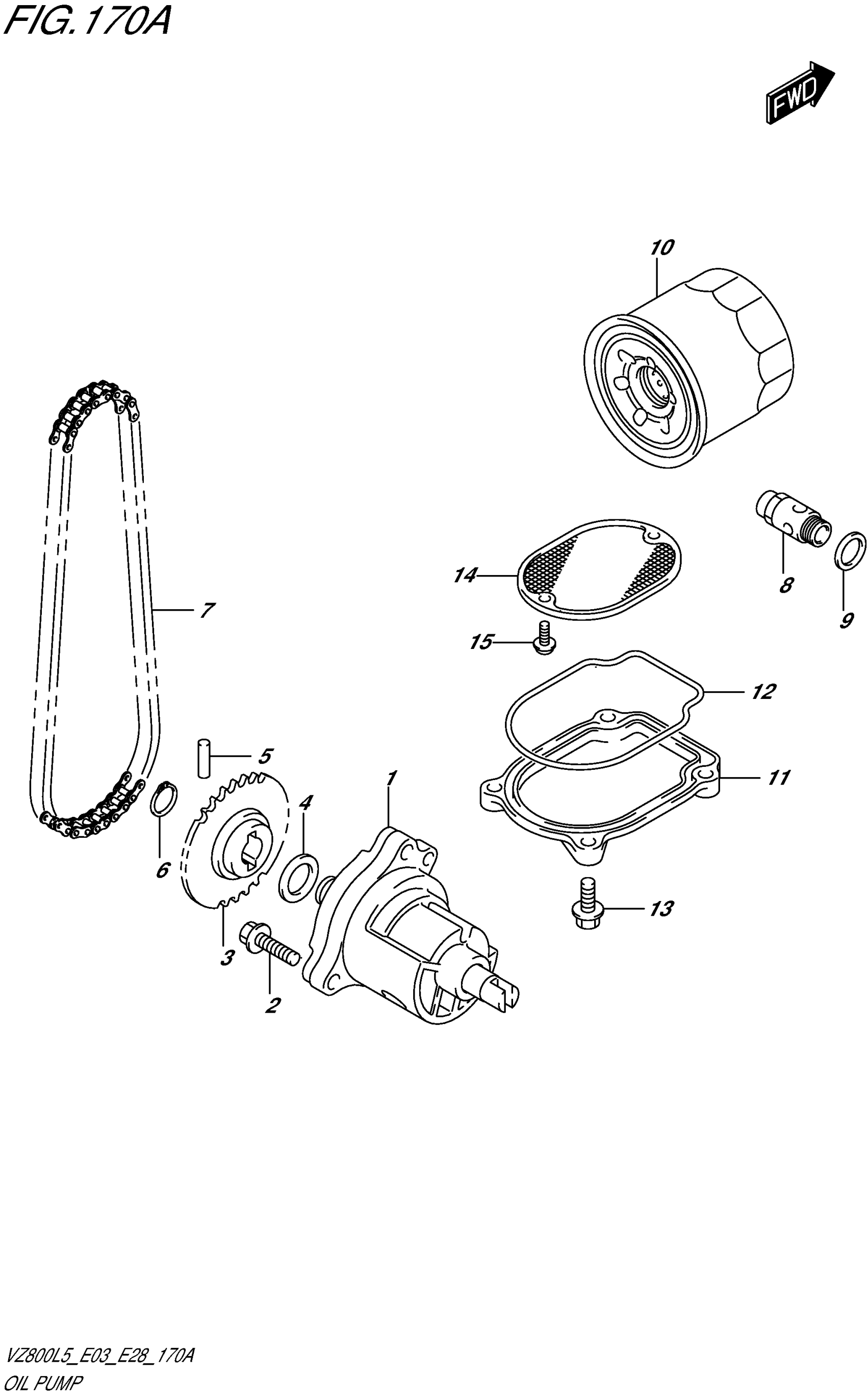

Suzuki VZ800L5 (2015) OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY, ENG OIL

16400-38A01

$224.88

2

BOLT

01547-0625A

$2.01

3

SPROCKET, OIL PUMP DRIVEN (NT:29)

16331-38A10

Unavailable

4

SHIM (12X20X0.5)

09181-12158

$2.26

5

PIN (5X18)

09261-05006

$1.49

6

CIRCLIP

08331-3112A

$1.78

7

CHAIN ASSY, OIL PUMP DR

16310-38A00

$33.93

8

VALVE ASSY,OIL RELIEF

16440-17C20

$63.47

9

GASKET (16X22X2)

09168-16002

$1.91

10

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10

11

CAP, OIL STRAINER

16523-38A00

$31.70

12

O RING, OIL STRAINER CA

16528-38A00

$11.77

13

BOLT

01547-0620A

$2.03

14

STRAINER, ENG OIL

16520-38A10

$8.60

15

SCREW

02112-7512A

$2.42
