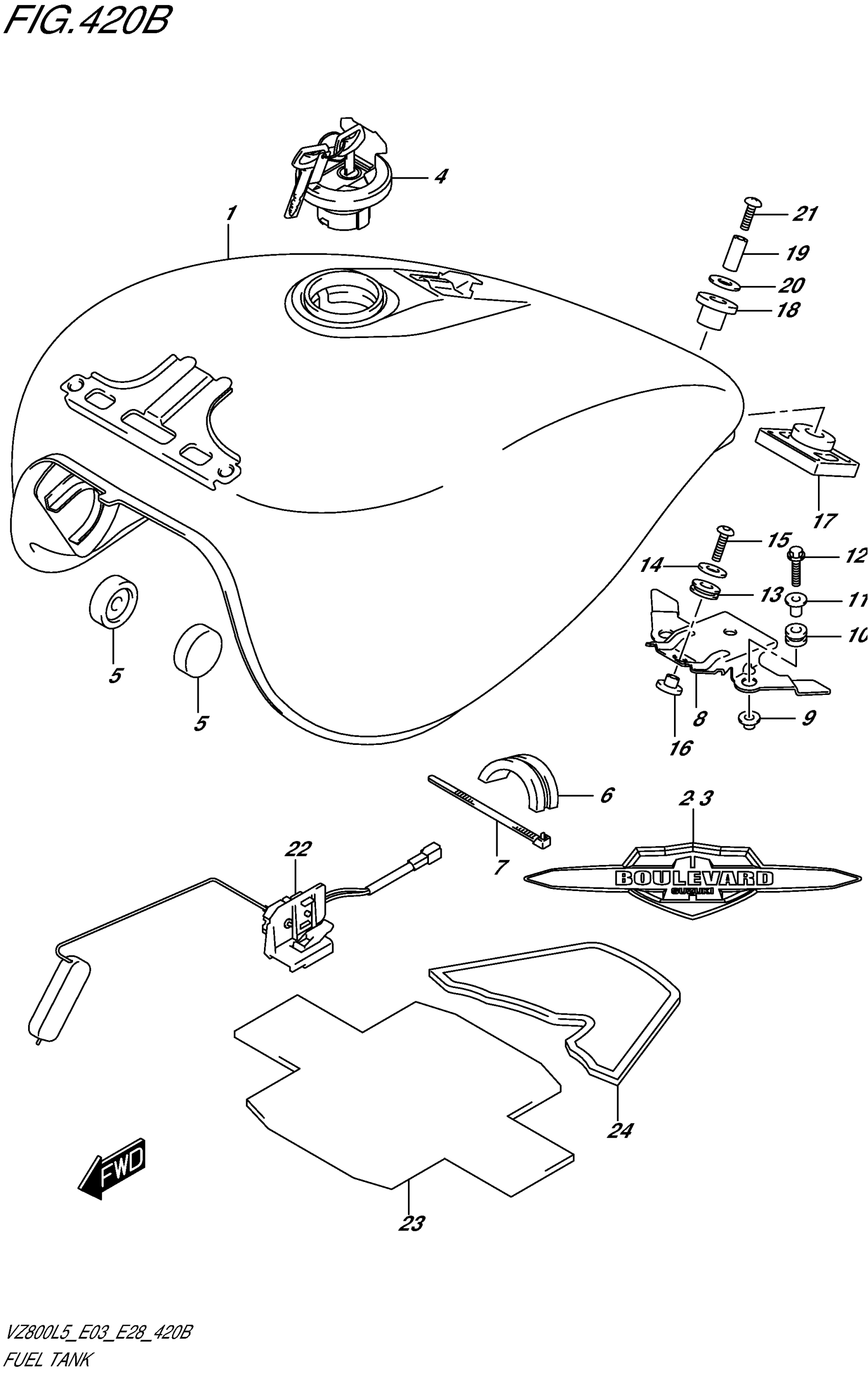

Suzuki VZ800L5 (2015) FUEL TANK (VZ800L5 E28) Diagram

TANK ASSY, FUEL (BLACK)

44100-39GK0-YVB

Unavailable

EMBLEM, RH

68111-39G01

$69.02

EMBLEM, LH

68121-39G01

$67.73

CAP SET,FUEL TA This part replaces 44200-39830.

44200-39832

$110.37

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

CLAMP (L:250)

09407-25402

$4.64

BRACKET, REAR

44530-39G20

Unavailable

WASHER

09169-06076

$3.05

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

WASHER

09169-06070

$4.77

SCREW

02162-0625B

$2.10

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

WASHER (8.5X26X1.6)

09160-08151

$1.99

BOLT (8X23)

09106-08150

$3.42

WASHER

44512-39G00

Unavailable

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

WASHER (8.5X33X1.5)

09160-08146

$2.60

BOLT (8X35)

01550-0835A

$3.04

GUAGE ASSY,FUEL This part replaces 34810-39G00.

34810-39G01

$112.19

SHIELD, TANK HEAT

44192-39G00

$148.62

SHIELD, TANK HEAT NO.2

44193-39G00

$102.17
