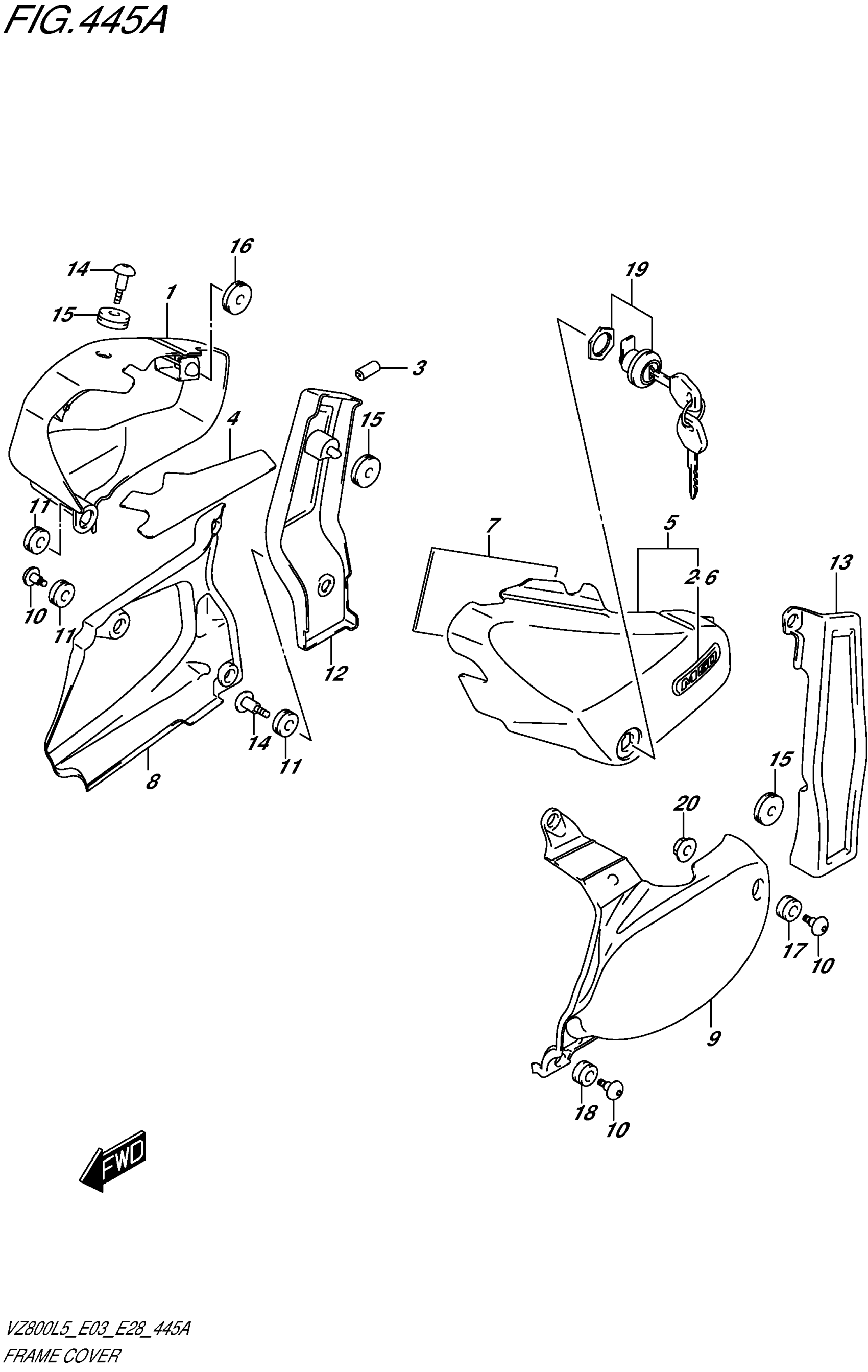

Suzuki VZ800L5 (2015) FRAME COVER (VZ800L5 E03) Diagram

#

Description
Price

1

COVER,SIDE,R(BL This part replaces 47110-39G61-YVB.

47110-39G31-YVB

$238.05

2

EMBLEM, M50

68131-39G01

$40.23

3

MOLDING

94631-35F00

$8.35

4

SHIELD, RH

47166-41F00

$20.13

5

COVER, FRAME LH (BLACK)

47210-39G31-YVB

$274.72

6

EMBLEM, M50

68131-39G01

$40.23

7

CUSHION, SIDE COVER

47217-41F00

$13.53

8

COVER, SIDE LOWER RH

47130-41F00

Unavailable

9

COVER, SIDE LOWER LH

47231-41F00

$429.23

10

SCREW

47133-43H00

$7.98

11

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.70

12

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$155.65

13

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$154.90

14

SCREW (6X20)

09139-06126

$3.65

15

CUSHION

09320-08018

$2.80

16

CUSHION

09320-08028

$2.80

17

CUSHION

09320-09501

$2.06

18

CUSHION This part replaces 09320-09045.

09320-09062

$2.14

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

20

NUT

08316-1006B

$2.50
