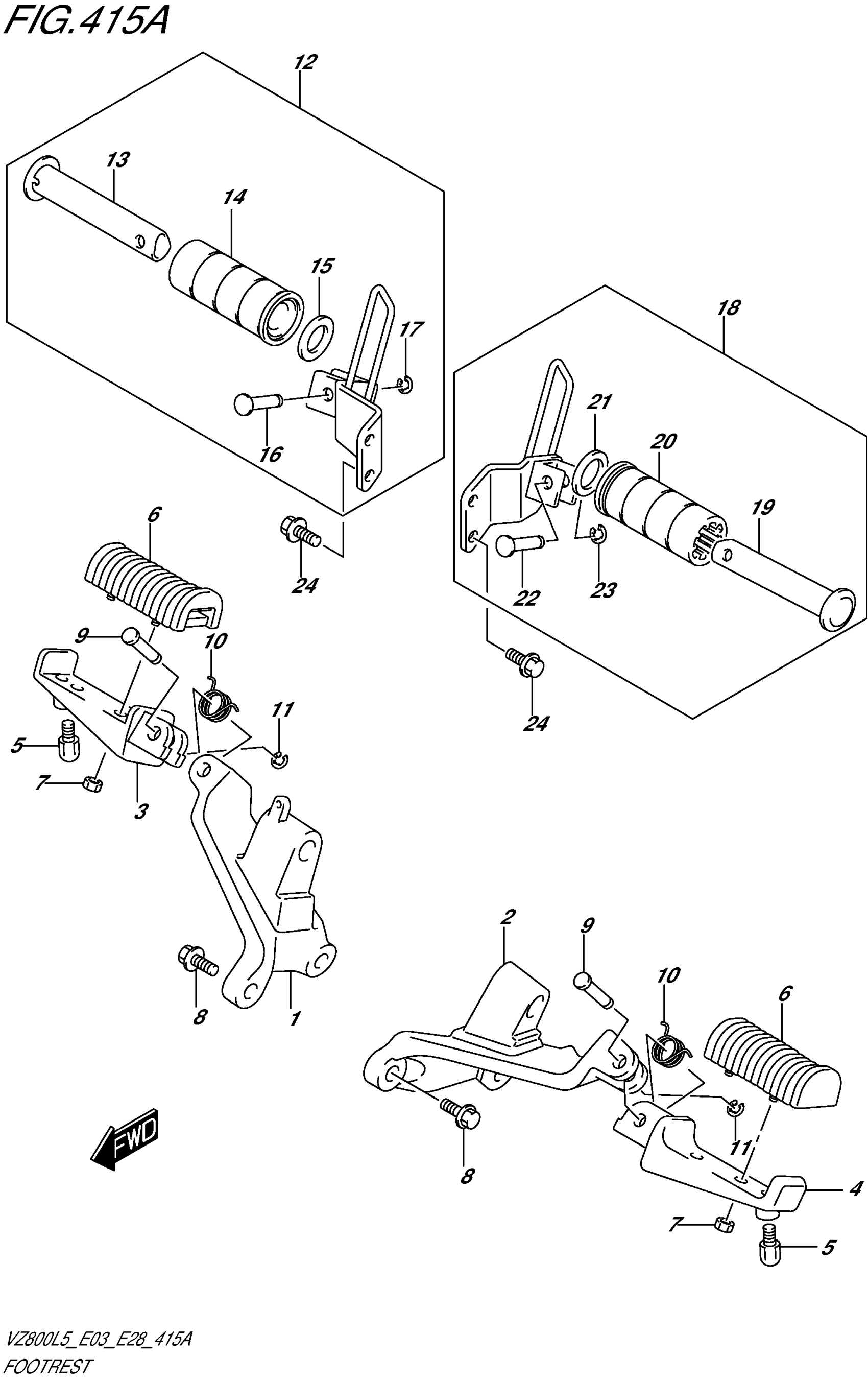

Suzuki VZ800L5 (2015) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-41F00

$200.27

2

BRACKET, FRONT FOOTREST LH

43521-41F10

$244.85

3

BAR, FRONT RH This part replaces 43531-41F01.

43531-41F02

$44.15

4

BAR, FRONT LH This part replaces 43541-41F01.

43541-41F02

$57.73

5

.BOLT,BANK SENSOR

43576-07D01

$8.46

6

RUBBER, FRONT FOOTREST

43550-41F00

$30.12

7

NUT

08319-2106B

$2.38

8

BOLT

01580-1030B

$5.63

9

PIN (8X33.2)

09208-08010

$2.80

10

SPRING

09448-18022

$3.53

11

E RING

08332-1106A

$1.46

12

FOOTREST ASSY, PILLION RH

43600-41F50

$115.30

13

BAR

43610-39G00

$25.42

14

RUBBER

43612-39G00

$7.32

15

WASHER (19.5X32X2)

09160-19024

$3.22

16

PIN

43636-25D00

$12.02

17

E-RING

08332-1104B

$1.86

18

FOOTREST ASSY, PILLION LH

43700-41F50

$114.75

19

BAR

43610-39G00

$25.42

20

RUBBER

43612-39G00

$7.32

21

WASHER (19.5X32X2)

09160-19024

$3.22

22

PIN

43636-25D00

$12.02

23

E-RING

08332-1104B

$1.86

24

BOLT (8X16)

09103-08412

$3.30
