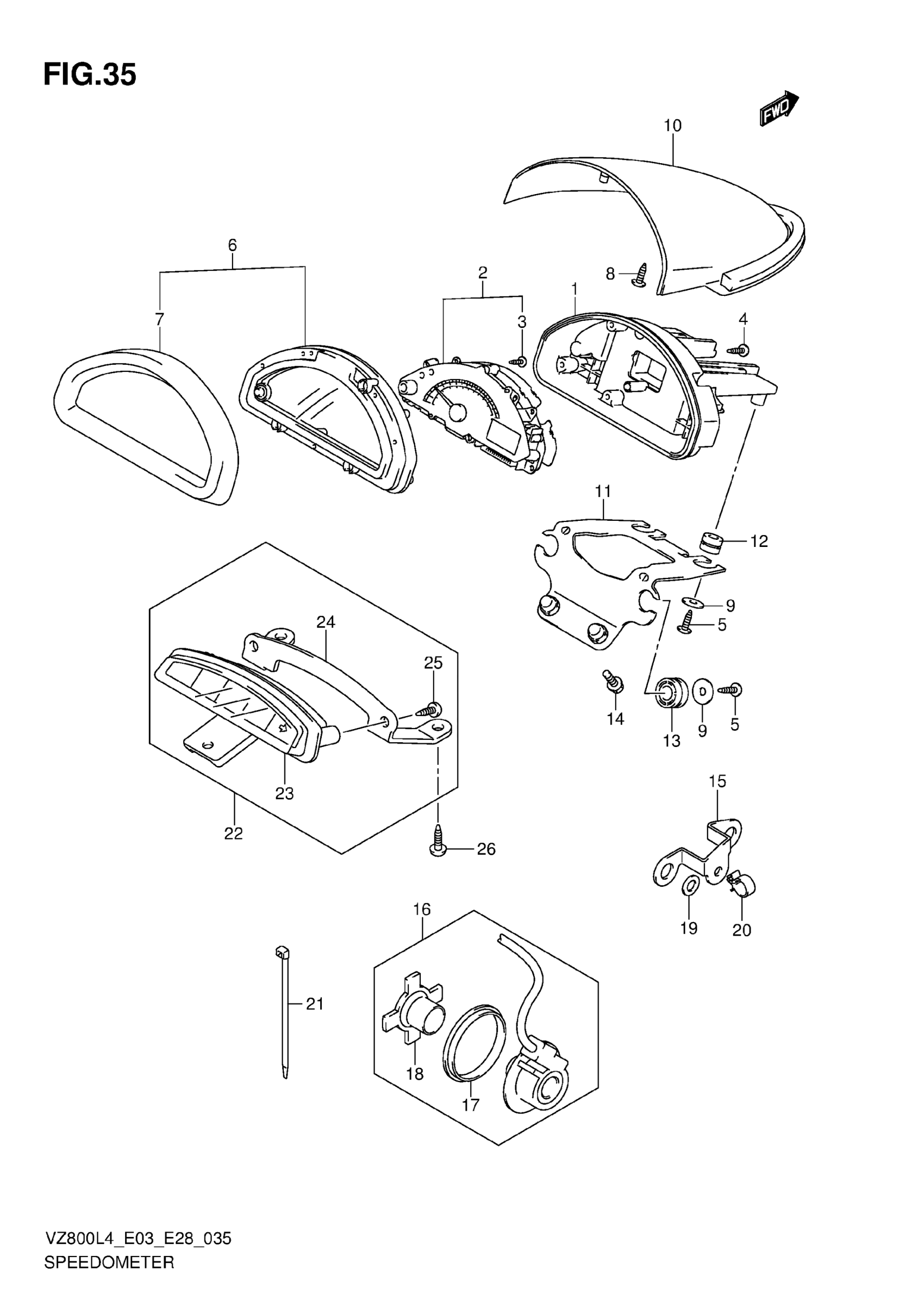

Suzuki VZ800L4 (2014) SPEEDOMETER (VZ800L4 E33) Diagram

#

Description
Price

1

LOWER CASE

34111-40H00

Unavailable

2

SPEEDOMETER

34120-39GD0

$621.63

3

SCREW (3X14)

34149-03G00

$3.71

4

SCREW (3X14)

34149-03G00

$3.71

5

SCREW (5X16)

34149-40H00

Unavailable

6

UPPER CASE

34150-40H00

Unavailable

7

UPPER COVER

34256-40H00

Unavailable

8

SCREW

34184-12B00

$2.45

9

WASHER (5.2X20X1.0)

34189-40H00

Unavailable

10

COVER ASSY, LOWER

34257-39GC0

Unavailable

11

BRACKET

34952-39GC0

Unavailable

12

DAMPER NO.2

34955-39G00

$9.35

13

DAMPER NO.1

34955-39G10

$9.35

14

BOLT

01547-0612A

$2.03

15

GUIDE, SPEED SENSOR LEAD

34938-39G10

Unavailable

16

SENSOR, SPEED

34990-39G00

$258.98

17

OIL SEAL (44X55X6)

09286-44001

$11.67

18

MAGNET

34983-27G00

$32.36

19

WASHER (10.5X18X1)

09160-10121

$2.03

20

CLAMP

09403-06410

$2.53

21

CLAMP (L:145)

09407-14407

$3.57

22

BOX ASSY, PILOT LAMP This part replaces 36380-39G10.

36380-39G11

$221.93

23

.CASE UNIT This part replaces 36381-39G10.

36381-39G11

Unavailable

24

BRACKET, PILOT LAMP

36386-39G00

Unavailable

25

SCREW

03241-0512A

$1.49

26

SCREW

03511-0512B

$2.26
