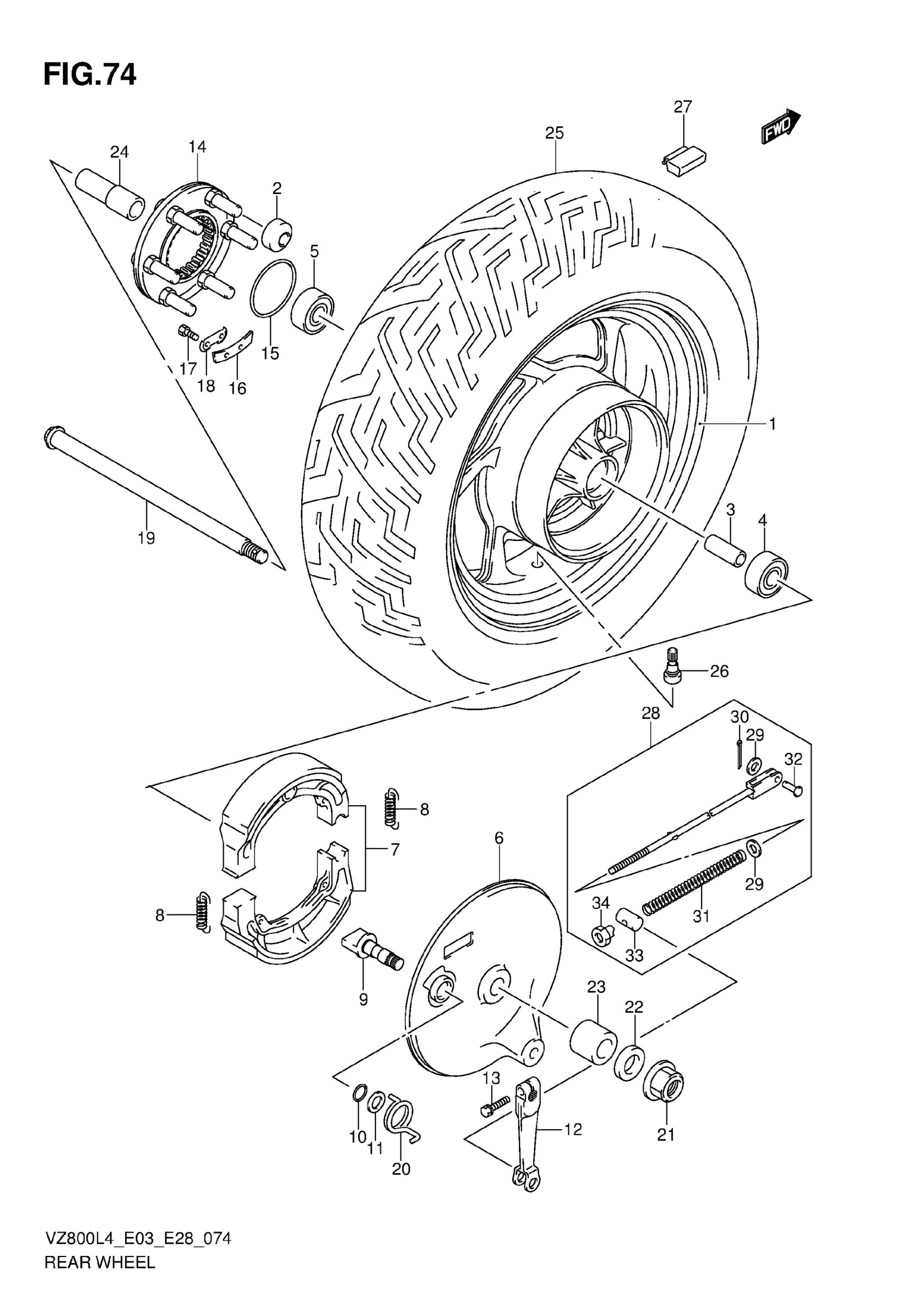

Find the part on the Rear Wheel diagram for your 2014 Suzuki VZ800L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki VZ800L4 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (15M/CXMT4.00) (SILVER)

64150-39G00-20H

1
Out of stock

2

BUSH

09319-12019

6
Out of stock

3

SPACER (17.3X25X99)

09180-17112

1
Out of stock

4

BEARING | RH This part replaces 08123-63037.

08123-6303B

1
Out of stock

5

BEARING | LH

08143-63037

2
Out of stock

6

PANEL, REAR BRAKE ANCHOR (SILVER)

64210-38A70-20H

1
Out of stock

7

SHOE SET, BRAKE

64400-38820

1
Out of stock

8

SPRING, SHOE

55420-30000

2
Out of stock

9

CAM, BRAKE

64441-38A20

1
Out of stock

10

O RING (D:2.4,ID:14.8)

09280-15003

1
Out of stock

11

WASHER (15.5X24X1.6)

09160-15048

1
Out of stock

12

LEVER, BRAKE CAM

64451-38A01

1
Out of stock

13

BOLT

01570-06257

1
Out of stock

14

JOINT, HUB DRIVEN

64680-45113

1
Out of stock

15

O RING (D:2.1,ID:65)

09280-65003

1
Out of stock

16

WASHER, THRUST

64677-45110

3
Out of stock

17

BOLT (6X16)

09119-06049

6
Out of stock

18

WASHER

09169-06030

3
Out of stock

19

AXLE, REAR

64711-19F00

1
Out of stock

20

SPRING

09448-33006

1
Out of stock

21

NUT

08319-2116A

1
Out of stock

22

WASHER (17X30X3.2)

09160-17050

1
Out of stock

23

SPACER, RH

64741-41F00

1
Out of stock

24

SPACER, LH

64772-34201

1
Out of stock

25

TIRE,RR(170/80 This part replaces 65110-41F10.

65110-41F11

1
Out of stock

26

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

27

BALANCER, WHEEL NO.1

43222-73H10

1
Out of stock

27

BALANCER, WHEEL NO.2

43224-73H10

1
Out of stock

27

BALANCER, WHEEL NO.3

43226-73H10

1
Out of stock

28

ROD ASSY, REAR BRAKE

43300-41F00

1
Out of stock

29

WASHER

08322-0106B

2
Out of stock

30

COTTER PIN

04111-2015A

1
Out of stock

31

SPRING

09440-09004

1
Out of stock

32

PIN (10X16)

09200-06013

1
Out of stock

33

PIN (13X18)

09209-13018

1
Out of stock

34

NUT

09150-06010

1
Out of stock
