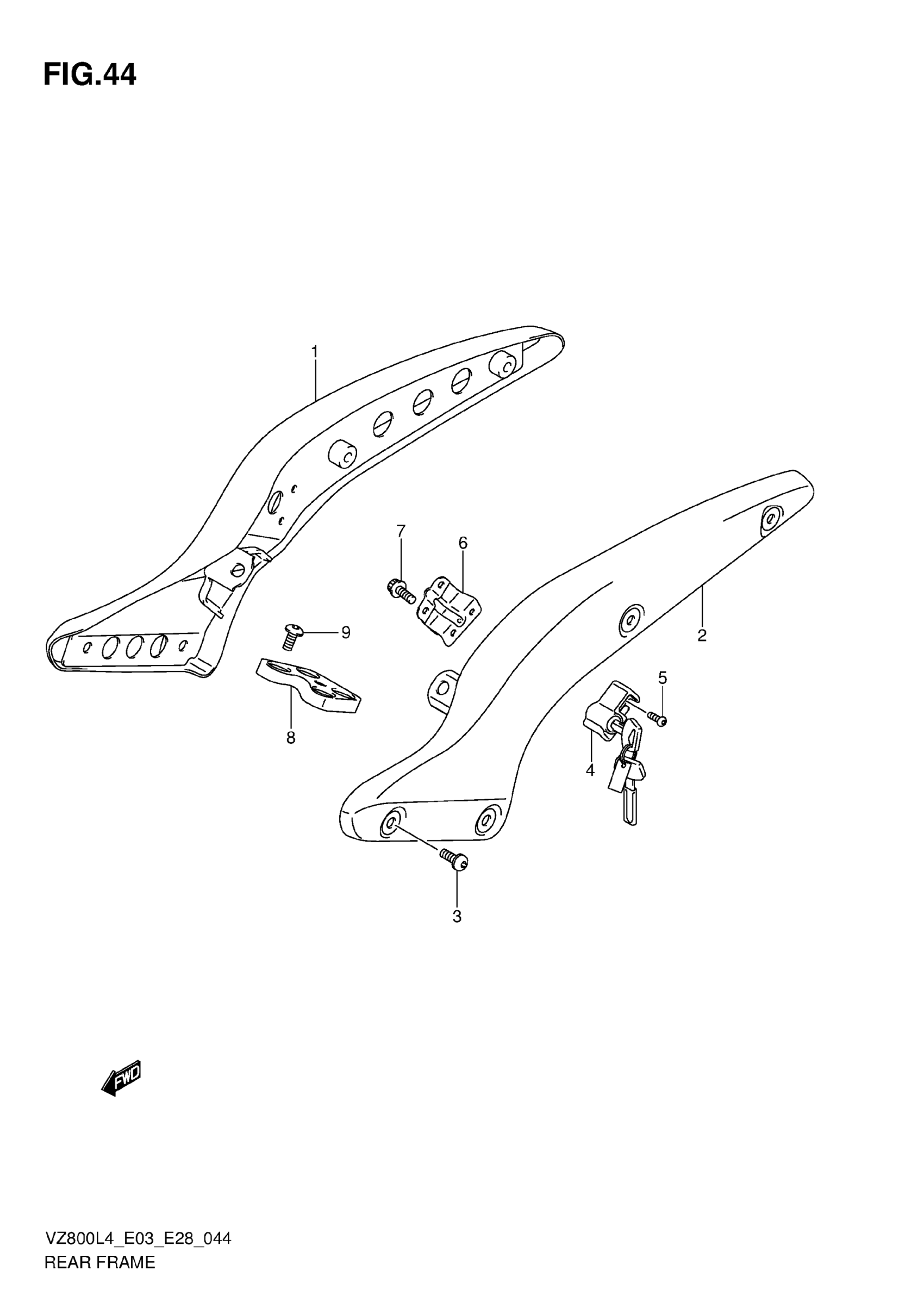

Suzuki VZ800L4 (2014) REAR FRAME Diagram

#

Description
Price

1

FRAME, REAR RH

41210-39G50

Unavailable

2

FRAME, REAR LH

41220-39G50

Unavailable

3

BOLT (10X25)

09139-10003

$6.93

4

LOCK SET HELMET

95700-41821

$152.77

5

SCREW (6X14)

09139-06089

$3.03

6

BRACKET

95710-39G00

Unavailable

7

BOLT

07120-0616A

$2.53

8

PLATE, FUEL TANK

41313-41F61

Unavailable

9

BOLT (8X16)

09106-08140

$6.38
