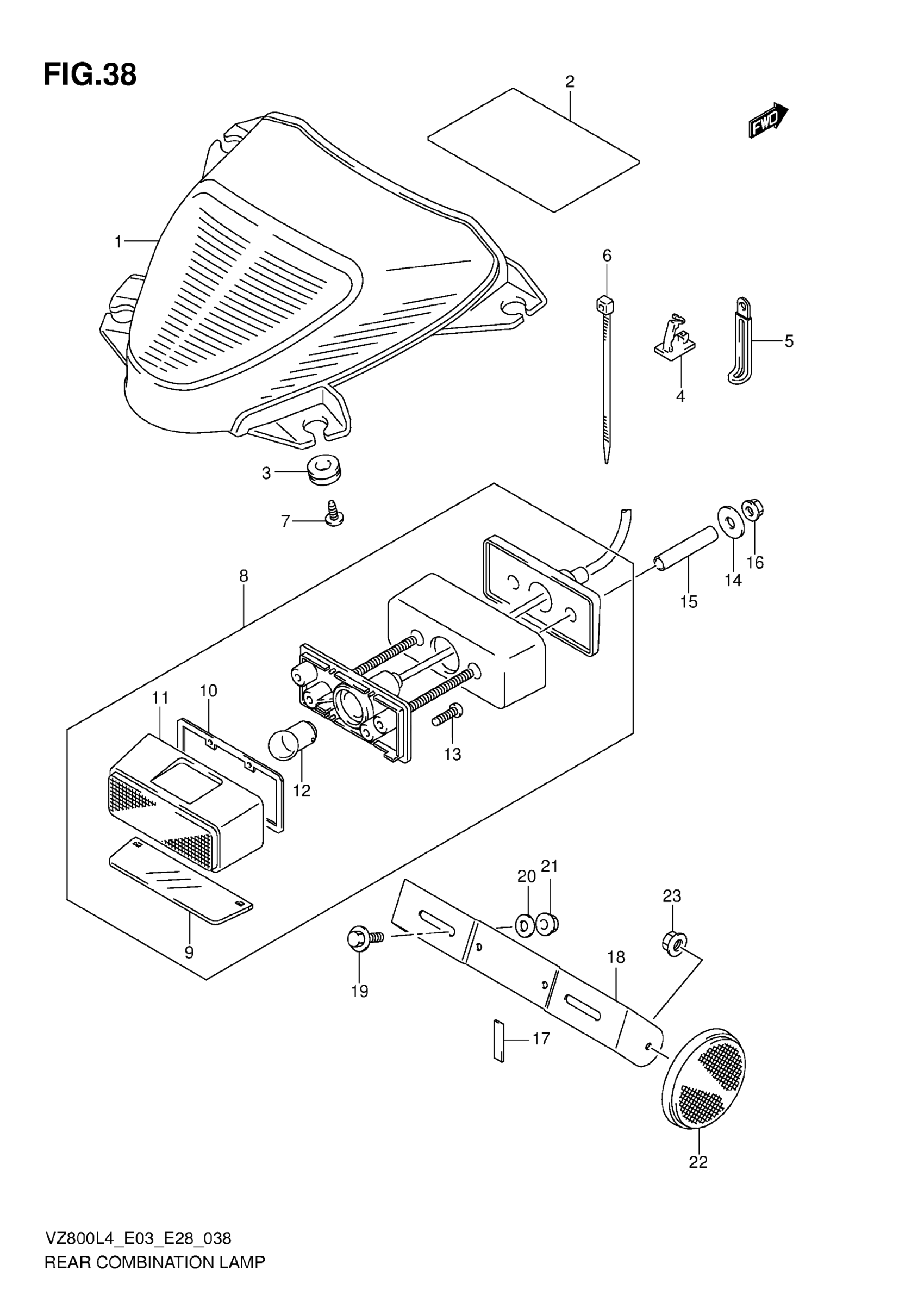

Suzuki VZ800L4 (2014) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-40H40

$561.32

2

CUSHION, LICENSE LEAD

35940-39G00

$4.43

3

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

4

CLAMP

09403-04310

$5.35

5

CLAMP (L:45)

09404-06429

$1.83

6

CLAMP (L:145)

09407-14407

$3.57

7

SCREW

03541-0512A

$1.49

8

LAMP ASSY, LICENSE This part replaces 35910-41G01.

35910-41G02

$73.97

9

LENS, LICENSE

35912-41G01

$13.28

10

GASKET

35913-41G00

$14.23

11

COVER, LICENSE LAMP

35917-41G00

$35.32

12

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

13

SCREW

03211-0416A

$1.49

14

WASHER (6.5X20X1.2)

09160-06077

$1.91

15

SPACER (6.5X9X8)

09180-06261

$1.91

16

NUT

08316-1006A

$2.19

17

CUSHION (10X30X6)

33652-47F00

$3.70

18

BRACKET, LICENSE PLATE

35927-39G30

$15.75

19

BOLT (6X16)

09116-06168

$2.50

20

WASHER (6.5X20X1.2)

09160-06077

$1.91

21

NUT

08316-1006A

$2.19

22

REFLECTOR ASSY, REAR SIDE

35970-14A10

$18.80

23

NUT

08316-1005A

$2.19
