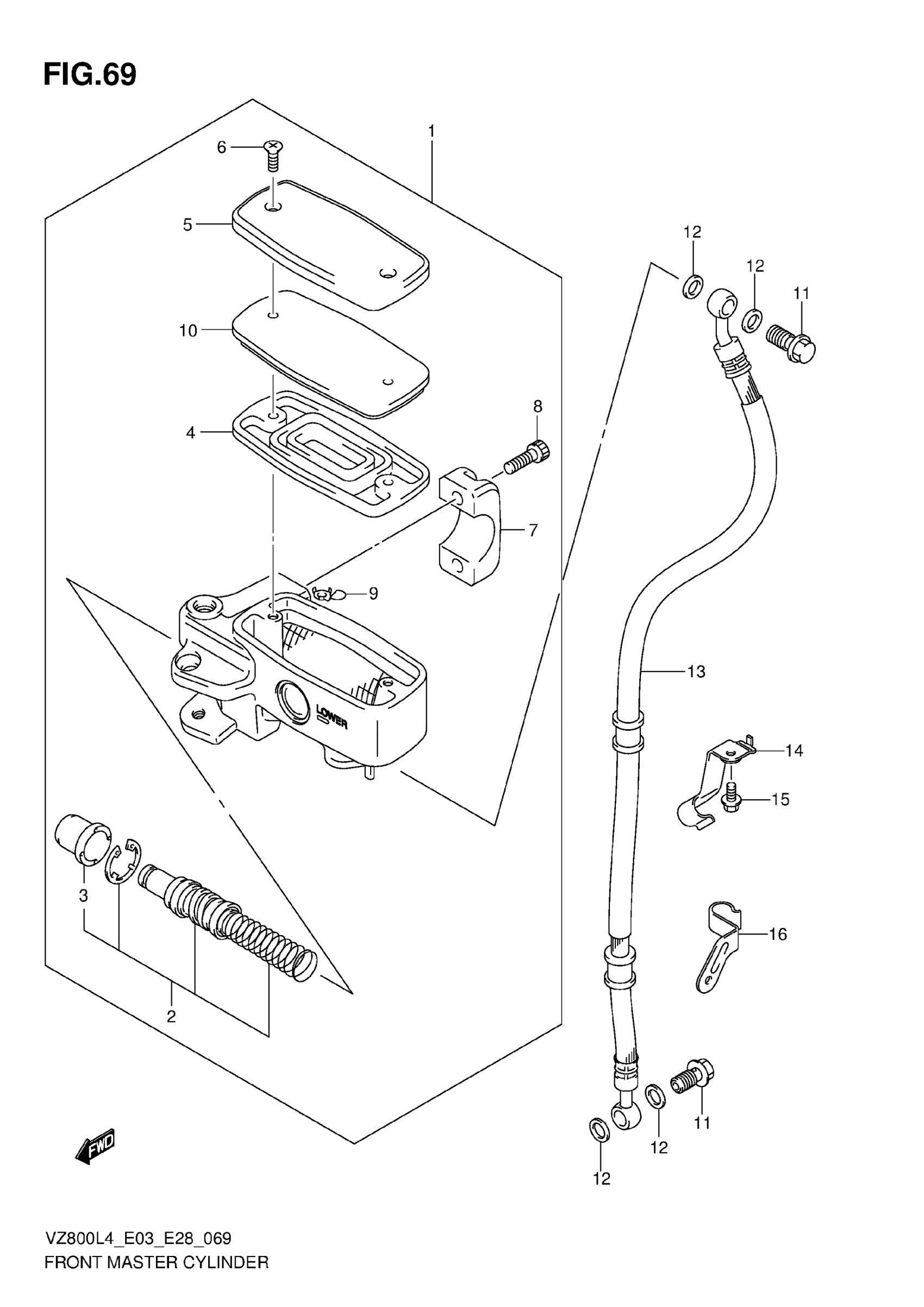

Suzuki VZ800L4 (2014) FRONT MASTER CYLINDER Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER

59600-10F71

$424.60

PISTON/CUP SET

59600-04810

$45.20

BOOT

59666-44300

$5.80

DIAPHRAGM

59667-10F00

$10.10

CAP

59669-10F10

$56.93

SCREW

02122-04127

$1.97

HOLDER

59671-10F00

$49.18

BOLT

07130-06207

$3.04

PROTECTOR

59664-32F00

$11.68

PLATE

57437-10F00

$21.03

UNION

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE This part replaces 59480-39G20.

59480-39G21

$93.95

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

BOLT

01547-0612B

$1.49

CLAMP, FR BRAKE HOSE

59268-39G00

Unavailable
