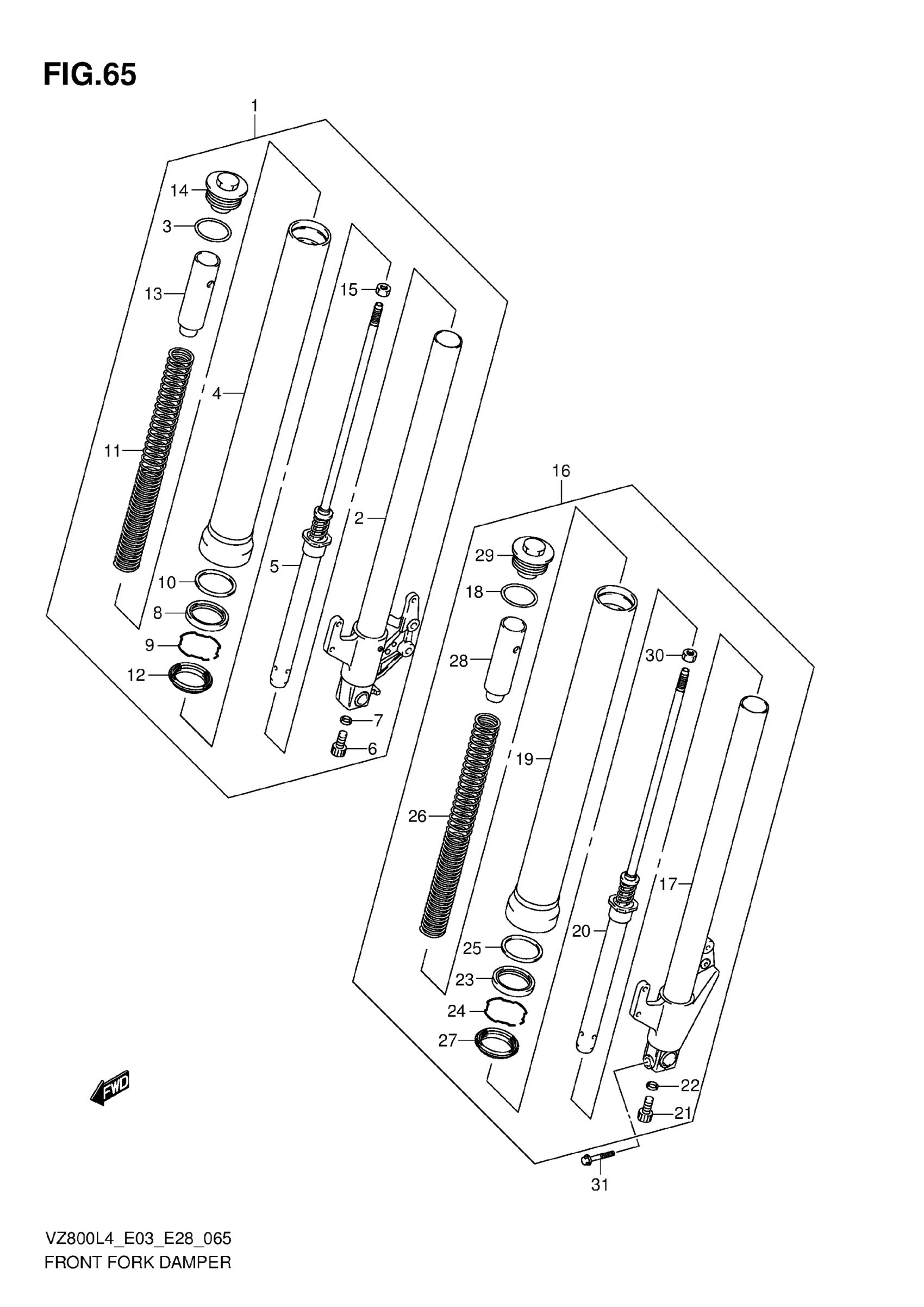

Suzuki VZ800L4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-39G20

Unavailable

2

TUBE, INNER RH

51110-39G20

Unavailable

3

O RING

51117-39G20

$5.84

4

TUBE, OUTER

51130-39G20

$438.12

5

CYLINDER

51146-39G20

$283.07

6

BOLT

51147-05H00

$5.40

7

GASKET

51148-41310

$2.26

8

SEAL, OIL

51153-10G50

$20.70

9

RING, OIL SEAL STOPPER

51156-49440

$5.05

10

WASHER

51158-05A00

$5.83

11

SPRING, FRONT

51171-39G20

$103.52

12

SEAL, DUST

51173-14F00

$23.07

13

SPACER, SPRING

51176-21H00

$27.40

14

CAP

51351-39G20

Unavailable

15

.NUT, ROD

51352-13A60

$3.03

16

DAMPER ASSY, FRONT FORK LH

51104-39G20

Unavailable

17

TUBE, INNER LH

51120-39G20

Unavailable

18

O RING

51117-39G20

$5.84

19

TUBE, OUTER

51130-39G20

$438.12

20

CYLINDER

51146-39G20

$283.07

21

BOLT

51147-05H00

$5.40

22

GASKET

51148-41310

$2.26

23

SEAL, OIL

51153-10G50

$20.70

24

RING, OIL SEAL STOPPER

51156-49440

$5.05

25

WASHER

51158-05A00

$5.83

26

SPRING, FRONT

51171-39G20

$103.52

27

SEAL, DUST

51173-14F00

$23.07

28

SPACER, SPRING

51176-21H00

$27.40

29

CAP

51351-39G20

Unavailable

30

.NUT, ROD

51352-13A60

$3.03

31

BOLT, AXLE STOPPER

51166-10G10

$5.38
