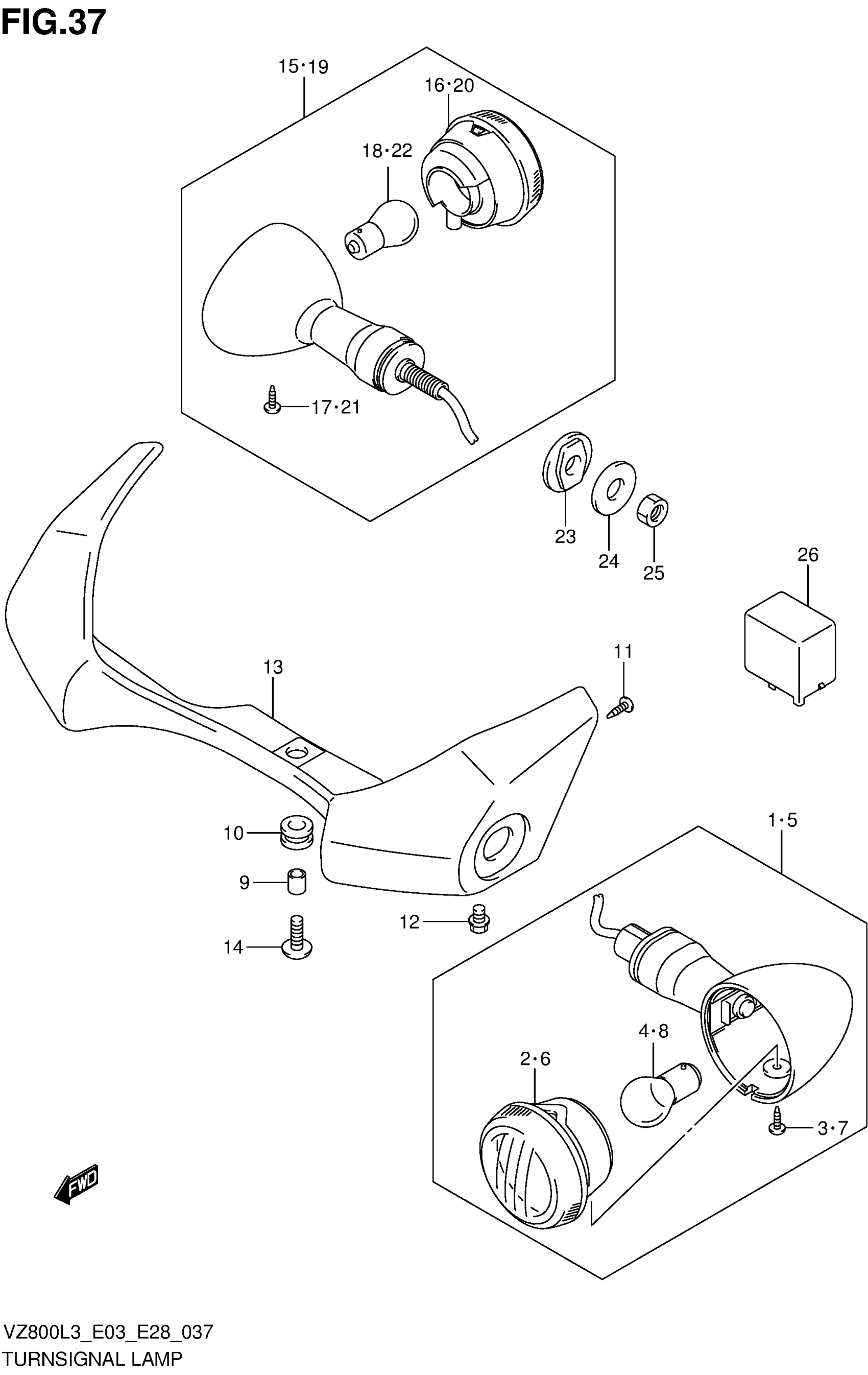

Suzuki VZ800L3 (2013) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-38AF0

$114.67

2

LENS

35610-38AA0

$31.91

3

SCREW (4X10)

35623-38AA0

$5.11

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

5

LAMP ASSY, FRONT TURNSIGNAL LH

35602-38AF0

$114.67

6

LENS

35630-38AA0

$31.91

7

SCREW (4X10)

35623-38AA0

$5.11

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

9

SPACER (6.5X9X9.5)

09180-06350

$2.05

10

CUSHION

09320-09016

$1.97

11

SCREW

03541-0510A

$1.49

12

BOLT (6X8)

09103-06275

$2.07

13

COVER, FRONT TURNSIGNAL

35641-39G00

Unavailable

14

SCREW (6X16)

09139-06109

$2.73

15

LAMP ASSY,RR TU This part replaces 35603-38AG0.

35603-38AG1

$112.23

16

LENS

35630-38AE1

$31.91

17

SCREW (4X10)

35623-38AA0

$5.11

18

BULB (12V,21W)

09471-12045

$3.27

19

LAMP ASSY,RR TU This part replaces 35604-38AG0.

35604-38AG1

$101.17

20

LENS

35610-38AE1

$31.91

21

SCREW (4X10)

35623-38AA0

$5.11

22

BULB (12V,21W)

09471-12045

$3.27

23

SPACER, REAR TURNSIGNAL

35695-17C00

$4.03

24

WASHER (10.5X30X2.3)

09160-10501

$2.33

25

NUT

08310-0010A

$1.84

26

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
