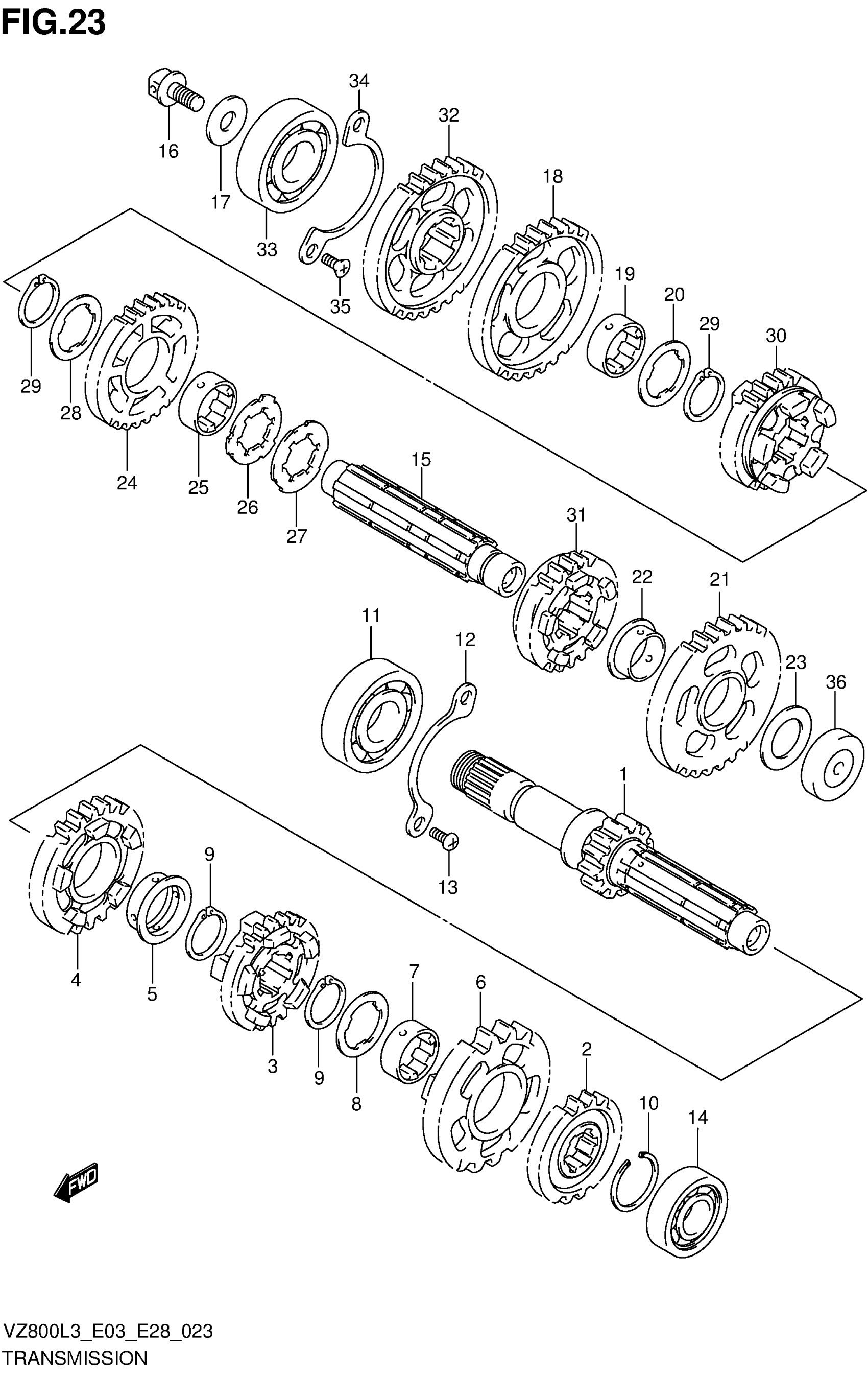

Suzuki VZ800L3 (2013) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-41F00

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-38A01

Unavailable

3

GEAR, 3RD DRIVE (NT:22)

24231-41F00

Unavailable

4

GEAR, 4TH DRIVE (NT:25)

24241-41F00

Unavailable

5

BUSH, 4TH

24322-19F00

$23.78

6

GEAR, 5TH DRIVE (NT:27)

24251-41F00

Unavailable

7

BUSH,6TH DRIVE GEAR

24252-38A10

Unavailable

8

LOCK WASHER

09167-25016

$3.72

9

SNAP RING

09380-25003

$3.04

10

CIRCLIP

09380-25014

Unavailable

11

BEARING (25X62X17) | RH

09262-25080

$38.77

12

RETAINER

24741-38A00

Unavailable

13

SCREW (6X12)

09125-06122

$2.44

14

BEARING (20X47X14) | LH

09262-20139

$44.97

15

DRIVE SHAFT

24131-38A03

Unavailable

16

NOZZLE,DRIVE SHAFT

24135-38A02

$9.17

17

WASHER

08211-10305

$4.25

18

GEAR, 1ST DRIVEN (NT:32)

24311-41F00

Unavailable

19

BUSH

24332-07A00

Unavailable

20

LOCK WASHER

09167-28001

$4.60

21

GEAR, 2ND DRIVEN (NT:31)

24321-41F00

Unavailable

22

BUSH

09301-22002

Unavailable

23

SHIM (20X34X1)

09181-20251

$2.79

24

GEAR, 3RD DRIVEN (NT:27)

24331-41F00

Unavailable

25

BUSH

24332-07A00

Unavailable

26

WASHER | RH

09169-28001

$3.85

27

LOCK WASHER (28.1X43X1.5) | LH

09167-28002

$4.77

28

LOCK WASHER

09167-28001

$4.60

29

CIRCLIP

08331-31289

$2.19

30

GEAR, 4TH DRIVEN (NT:25)

24341-41F00

Unavailable

31

GEAR, 5TH DRIVEN (NT:22)

24351-41F00

Unavailable

32

GEAR, REDUCTION DRIVE (NT:30)

24621-38A00

Unavailable

33

BEARING (20X52X15) | RH

09262-20073

$23.28

34

RETAINER

24751-38A00

Unavailable

35

SCREW (6X12)

09126-06011

$2.03

36

BEARING (20X52X15) | LH

09262-20080

$38.77
