Description

Price

1

BODY, THROTTLE

13401-41F31

$1,365.43

2

PLATE, STAY

13565-41F20

Unavailable

3

SCREW

13601-21H00

Unavailable

4

SCREW

13269-18G00

$11.83

5

SPRING

13271-43E00

Unavailable

6

WASHER

13291-26E00

$2.93

7

O RING

13295-26E00

$4.34

8

.VALVE ASSY, ISC This part replaces 18117-15H11.

18117-15H12

$362.80

9

O RING

18119-05H00

$3.95

10

PLATE, ISC VALVE

13428-15H00

Unavailable

11

SCREW

13605-15H00

$7.12

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

13580-40F22

$249.45

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

13580-41F02

$137.27

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

CLAMP (L:145)

09407-14407

$3.57

17

INJECTOR ASSY

15710-26GA0

$263.01

18

.O-RING

15721-21H00

$9.09

19

.RING,SEAL

15722-21H00

$11.25

20

SCREW

13602-34F50

$3.65

21

PIPE SET, FUEL FR

13473-41FA0

$77.10

22

.O-RING

15721-24F00

$9.09

23

PIPE SET, FUEL RR

13473-41FB0

$103.83

24

SCREW

13602-10F10

$3.70

25

JOINT

13473-41FC0

$13.62

26

O-RING

15721-10G00

$9.09

27

PLUG, STRAIGHT

13474-41F20

$6.88

28

O-RING

15721-41F20

$22.38

29

PLATE

13475-41F20

$5.58

30

HOSE

13683-41FA0

$23.47

31

TUBE, RUBBER

13683-41FD0

Unavailable

32

SENSOR, PRESSURE

18591-42F00

$301.32

33

HOLDER

18595-42F20

Unavailable

34

BRACKET, BOOST SENSOR FR

18598-41F00

Unavailable

35

BRACKET, BOOST SENSOR RR

18599-39G00

Unavailable

36

HOSE

13683-41FC1

Unavailable

37

TUBE,RUBBER This part replaces 13682-41F30.

13682-41F31

$15.48

38

CLIP

13693-24F00

$3.22

39

.NIPPLE

13685-48B00

$12.15

40

VALVE, CANISTER

18117-52G00

$149.32

41

BRACKET, VALVE

18119-39G00

Unavailable

42

CUSHION (10X30X2)

44894-24A00

$1.72

43

BOLT

01550-0612B

$2.39

44

NUT

08316-1006A

$2.19

45

HOSE, CANISTER PURGE

13680-39G00

Unavailable

46

CLIP (ID:10.5,H:8)

09401-10409

$2.26

47

CLAMP

44480-41F00

Unavailable

48

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

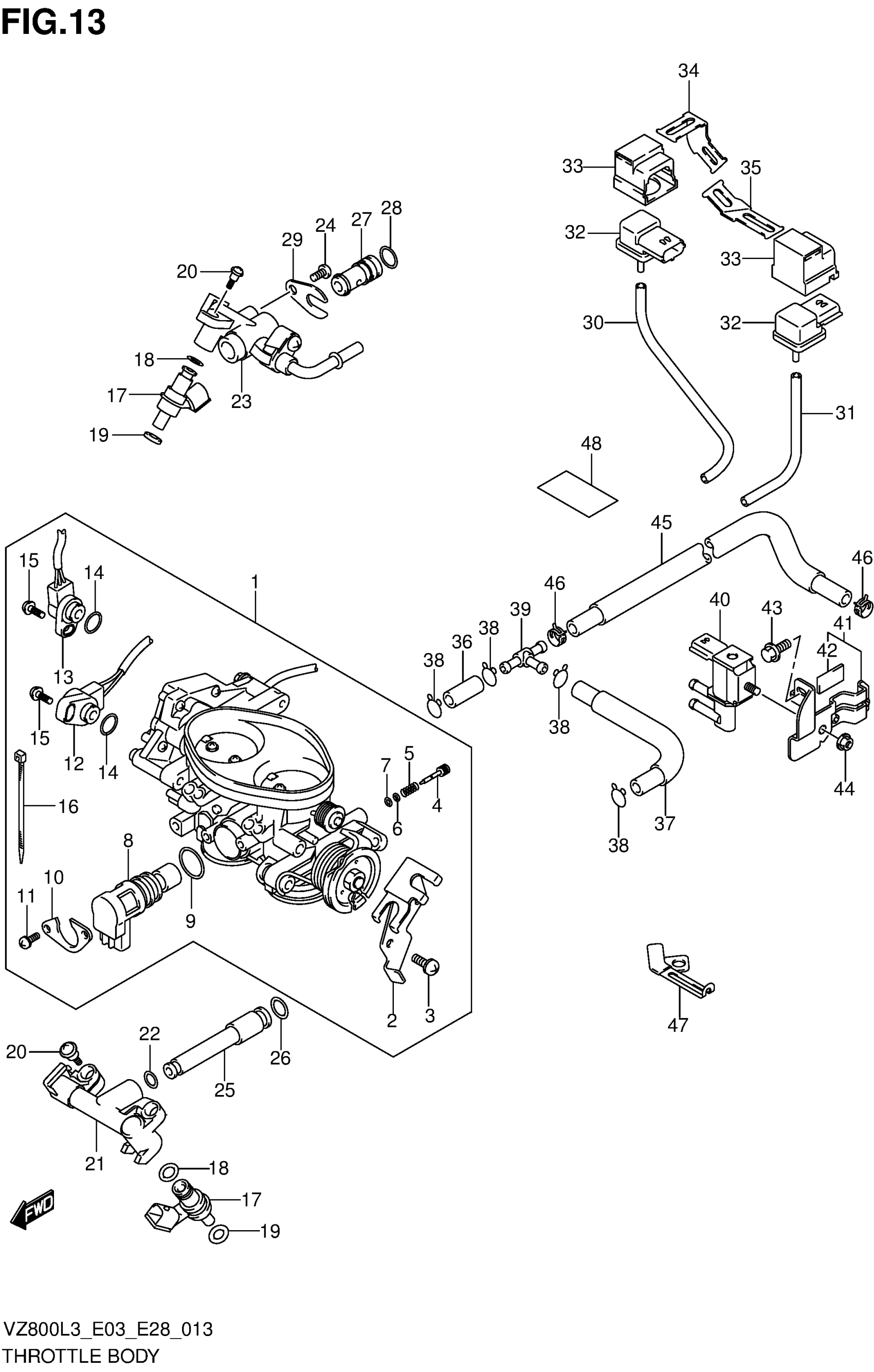

Suzuki VZ800L3 (2013) THROTTLE BODY (VZ800L3 E33) Diagram

BODY, THROTTLE

PLATE, STAY

SCREW

SCREW

SPRING

WASHER

O RING

.VALVE ASSY, ISC This part replaces 18117-15H11.

O RING

PLATE, ISC VALVE

SCREW

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

O RING

SCREW

CLAMP (L:145)

INJECTOR ASSY

.O-RING

.RING,SEAL

SCREW

PIPE SET, FUEL FR

.O-RING

PIPE SET, FUEL RR

SCREW

JOINT

O-RING

PLUG, STRAIGHT

O-RING

PLATE

HOSE

TUBE, RUBBER

SENSOR, PRESSURE

HOLDER

BRACKET, BOOST SENSOR FR

BRACKET, BOOST SENSOR RR

HOSE

TUBE,RUBBER This part replaces 13682-41F30.

CLIP

.NIPPLE

VALVE, CANISTER

BRACKET, VALVE

CUSHION (10X30X2)

BOLT

NUT

HOSE, CANISTER PURGE

CLIP (ID:10.5,H:8)

CLAMP

TAPE,HARNESS (28X50X0.13)
