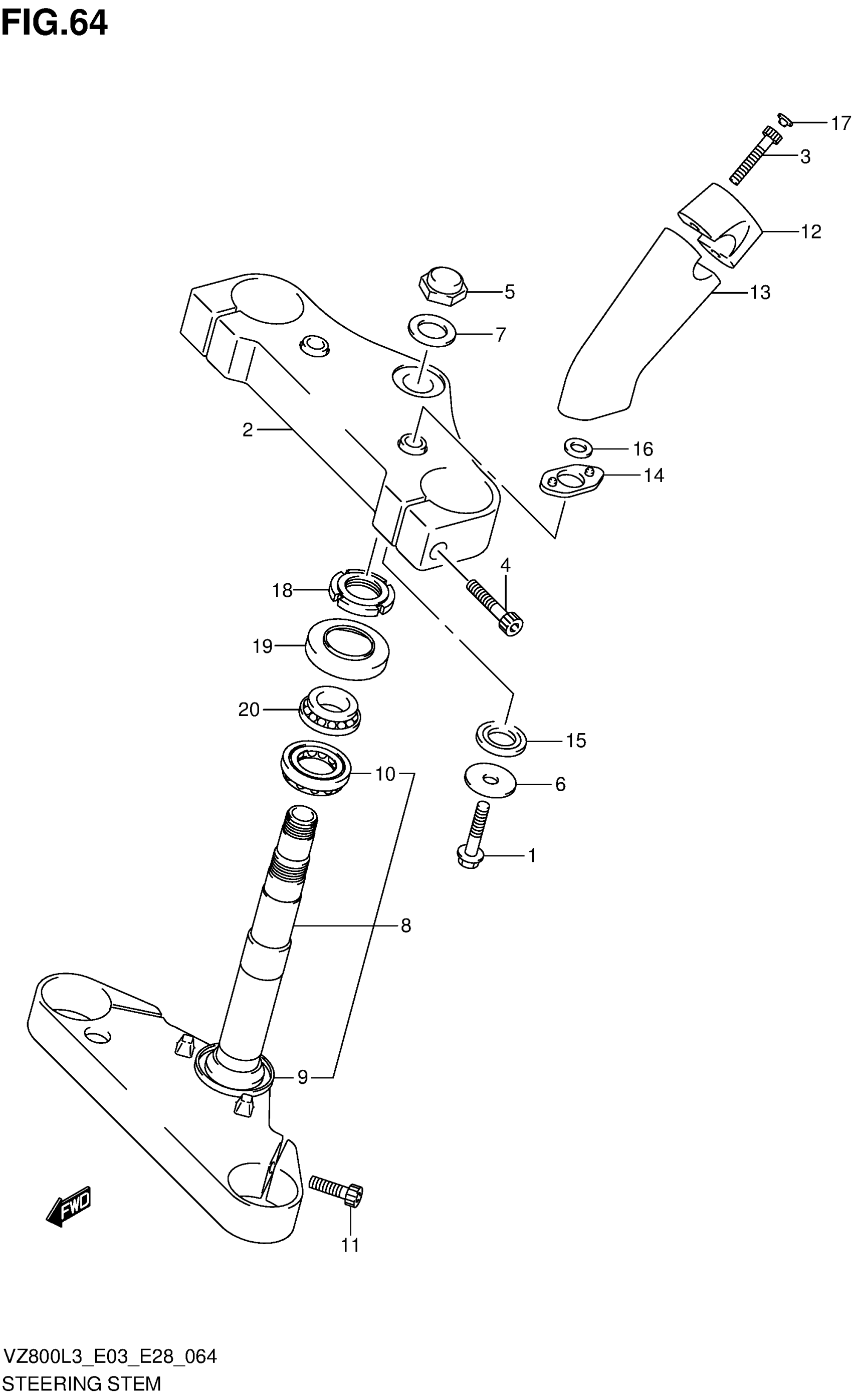

Suzuki VZ800L3 (2013) STEERING STEM Diagram

#

Description
Price

1

BOLT

51226-39G20

Unavailable

2

BRACKET, UPPER

51311-39G00

Unavailable

3

BOLT, HOLDER HANDLE UPPER

51328-39G20

$11.77

4

BOLT, HOLDER HANDLE UPPER

51328-39G20

$11.77

5

NUT, CAP

51353-24B00

$30.67

6

WASHER

51355-16G00

$5.77

7

WASHER (22.5X35.9X1.6)

51356-10D03

$7.50

8

BRACKET, UNDER

51410-39G40

$835.70

9

SEAL, STEERING LOWER

51644-12C00

$9.44

10

BEARING (30X55X17)

09267-30010

$48.11

11

BOLT, BRACKET UNDER

51434-39G00

$8.70

12

HOLDER, HANDLE

56211-39G00

$97.05

13

HOLDER, HANDLE

56221-40H00

Unavailable

14

RUBBER, HANDLE HOLDER

56245-39G00

$9.42

15

RUBBER, HANDLE LOWER

56245-39G20

$9.42

16

WASHER

08322-01107

$2.15

17

CAP (OD:11)

09250-06011

$2.50

18

NUT, STEERING STEM

51631-28000

$17.37

19

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

20

BEARING (25X47X15)

09267-25009

$52.18
