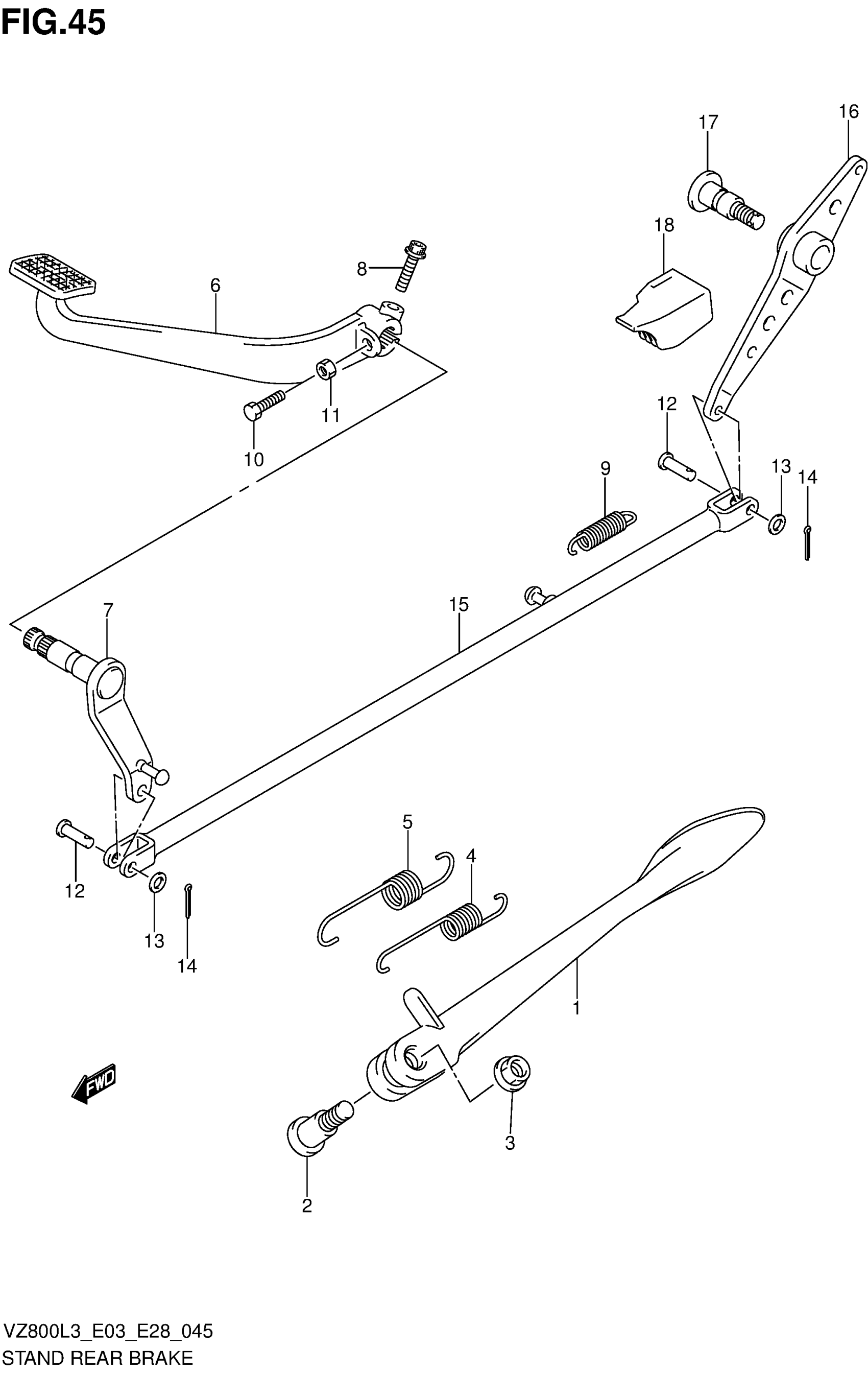

Suzuki VZ800L3 (2013) STAND REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42310-39G00

$219.40

2

BOLT (10X37.5)

09111-10058

$6.09

3

NUT, PROP STAND

42321-03FK0

$4.73

4

SPRING | NO.1

09443-14066

$4.97

5

SPRING | NO.2

09443-19012

$5.31

6

PEDAL, BRAKE

43110-41F00

$135.67

7

ARM, BRAKE ROD

43120-41F00

$69.90

8

BOLT

07120-0625A

$2.50

9

SPRING

09443-12049

$9.24

10

BOLT

01500-06207

$1.99

11

.NUT

08310-00067

$1.83

12

PIN (6X18.2)

09200-06068

$3.71

13

WASHER

08322-0106B

$2.24

14

COTTER PIN

04111-2015A

$1.22

15

ROD, FRONT

43130-41F00

$70.07

16

LINK, REAR BRAKE

43140-41F00

$69.02

17

SHAFT, BRAKE PEDAL

43142-27C00

$21.12

18

RUBBER,BRAKE LINK This part replaces 43151-41F00.

43151-41F01

$9.72
