2013 Suzuki VZ800L3 Front Fork Damper Diagram

← All diagrams

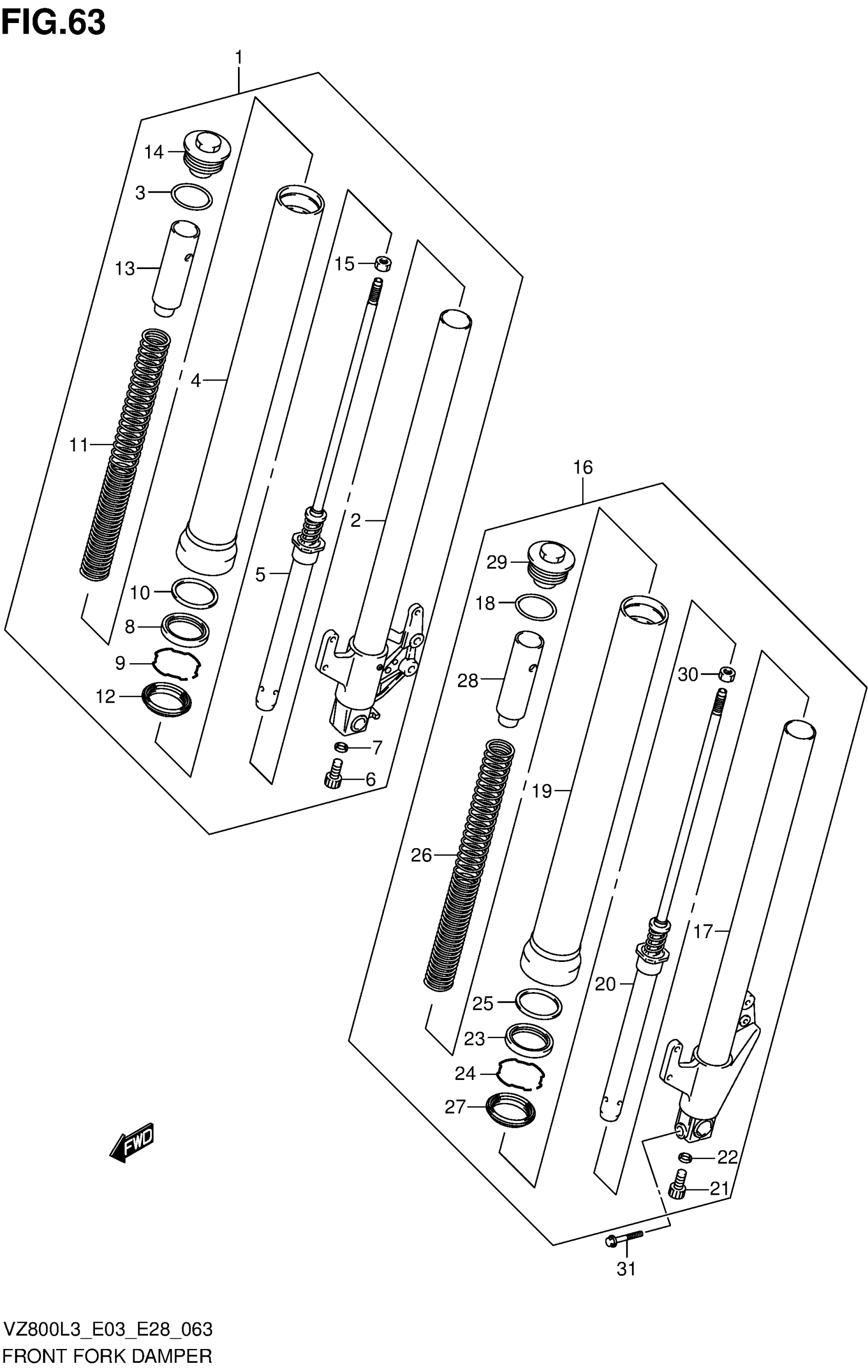

Find the part on the Front Fork Damper diagram for your 2013 Suzuki VZ800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ800L3 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-39G20

1
Out of stock

2

TUBE, INNER RH

51110-39G20

1
Out of stock

3

O RING

51117-39G20

1
Out of stock

4

TUBE, OUTER

51130-39G20

1
Out of stock

5

CYLINDER

51146-39G20

1
Out of stock

6

BOLT

51147-05H00

1
Out of stock

7

GASKET

51148-41310

1
Out of stock

8

SEAL, OIL

51153-10G50

1
Out of stock

9

RING, OIL SEAL STOPPER

51156-49440

1
Out of stock

10

WASHER

51158-05A00

1
Out of stock

11

SPRING, FRONT

51171-39G20

1
Out of stock

12

SEAL, DUST

51173-14F00

1
Out of stock

13

SPACER, SPRING

51176-21H00

1

$30.92

In stock

14

CAP

51351-39G20

1
Out of stock

15

.NUT, ROD

51352-13A60

1
Out of stock

16

DAMPER ASSY, FRONT FORK LH

51104-39G20

1
Out of stock

17

TUBE, INNER LH

51120-39G20

—
Out of stock

18

O RING

51117-39G20

1
Out of stock

19

TUBE, OUTER

51130-39G20

1
Out of stock

20

CYLINDER

51146-39G20

1
Out of stock

21

BOLT

51147-05H00

1
Out of stock

22

GASKET

51148-41310

1
Out of stock

23

SEAL, OIL

51153-10G50

1
Out of stock

24

RING, OIL SEAL STOPPER

51156-49440

1
Out of stock

25

WASHER

51158-05A00

1
Out of stock

26

SPRING, FRONT

51171-39G20

1
Out of stock

27

SEAL, DUST

51173-14F00

1
Out of stock

28

SPACER, SPRING

51176-21H00

1

$30.92

In stock

29

CAP

51351-39G20

1
Out of stock

30

.NUT, ROD

51352-13A60

1
Out of stock

31

BOLT, AXLE STOPPER

51166-10G10

1
Out of stock
