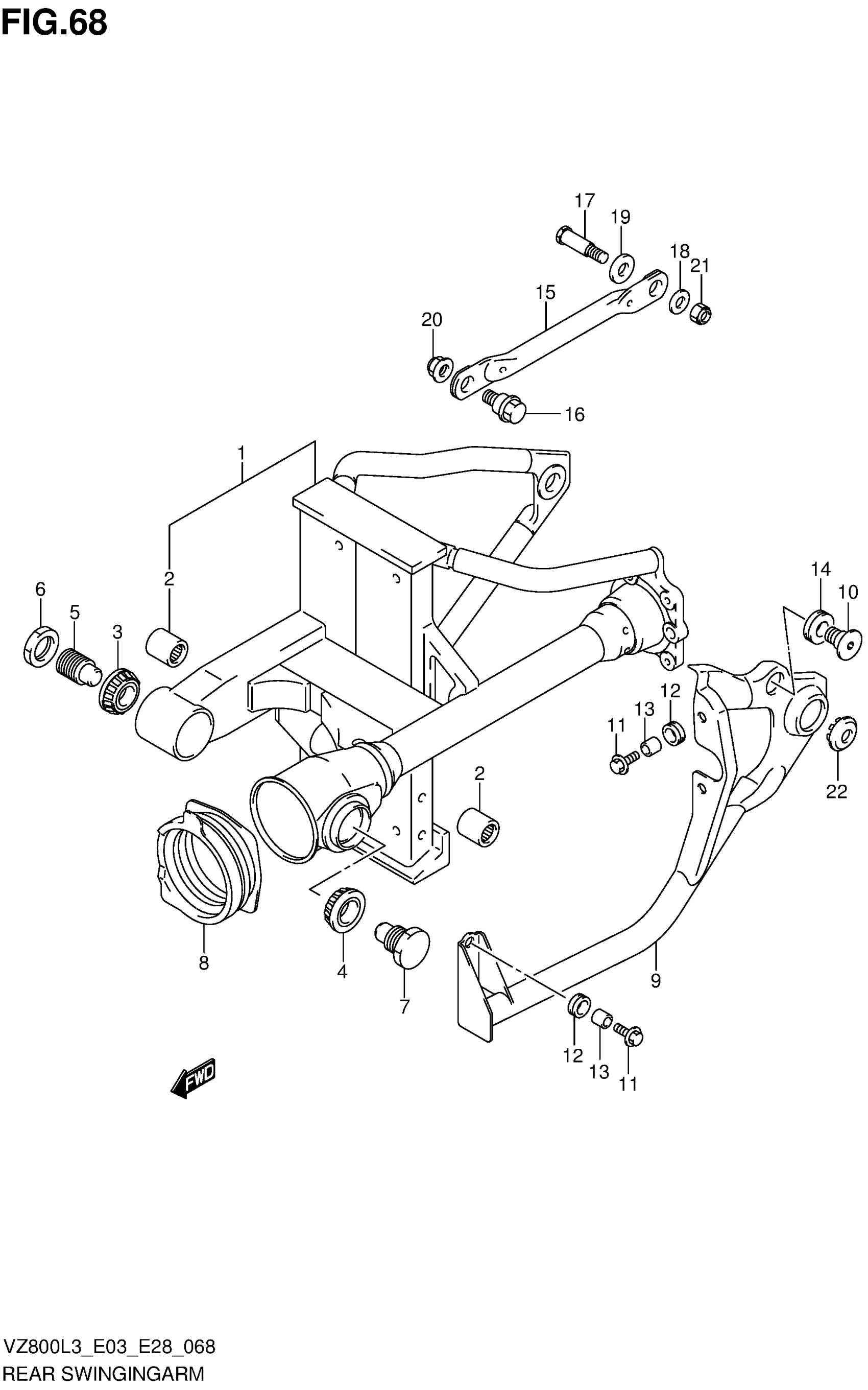

Suzuki VZ800L3 (2013) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM SET,RR (BLACK) This part replaces 61101-41890-019.

61101-41891-019

$1,409.43

2

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

3

BEARING (17X40X13.25) | RH

09265-17013

$82.55

4

BEARING (17X40X13.25) | LH

09265-17012

$69.07

5

BOLT, PIVOT RH

61213-24A00

Unavailable

6

NUT

09140-24007

$3.89

7

BOLT, PIVOT LH

61213-10F00

Unavailable

8

BOOT, SHAFT

61372-41F00

$27.97

9

COVER LH (BLACK)

61120-41F10-019

Unavailable

10

BOLT, COVER REAR

61127-41F20

$23.95

11

BOLT (6X20)

09116-06152

$2.36

12

.CUSHION This part replaces 09320-10056.

09320-10069

$1.91

13

SPACER (6.5X10X9.4)

09180-06286

$2.50

14

CUSHION This part replaces 09320-22003.

09320-22004

$3.73

15

TORQUE LINK, REAR

64310-41F00

$38.45

16

BOLT (10X22)

09111-10062

$8.27

17

BOLT (10X41)

09111-10057

$4.88

18

WASHER (10X20X2.3)

09160-10142

$2.34

19

CUSHION

09320-12501

$6.83

20

NUT

08319-3110B

$3.87

21

NUT

08319-2110A

$2.28

22

CAP

41899-42F10

$18.87
