2013 Suzuki VZ800L3 Rear Frame Diagram

← All diagrams

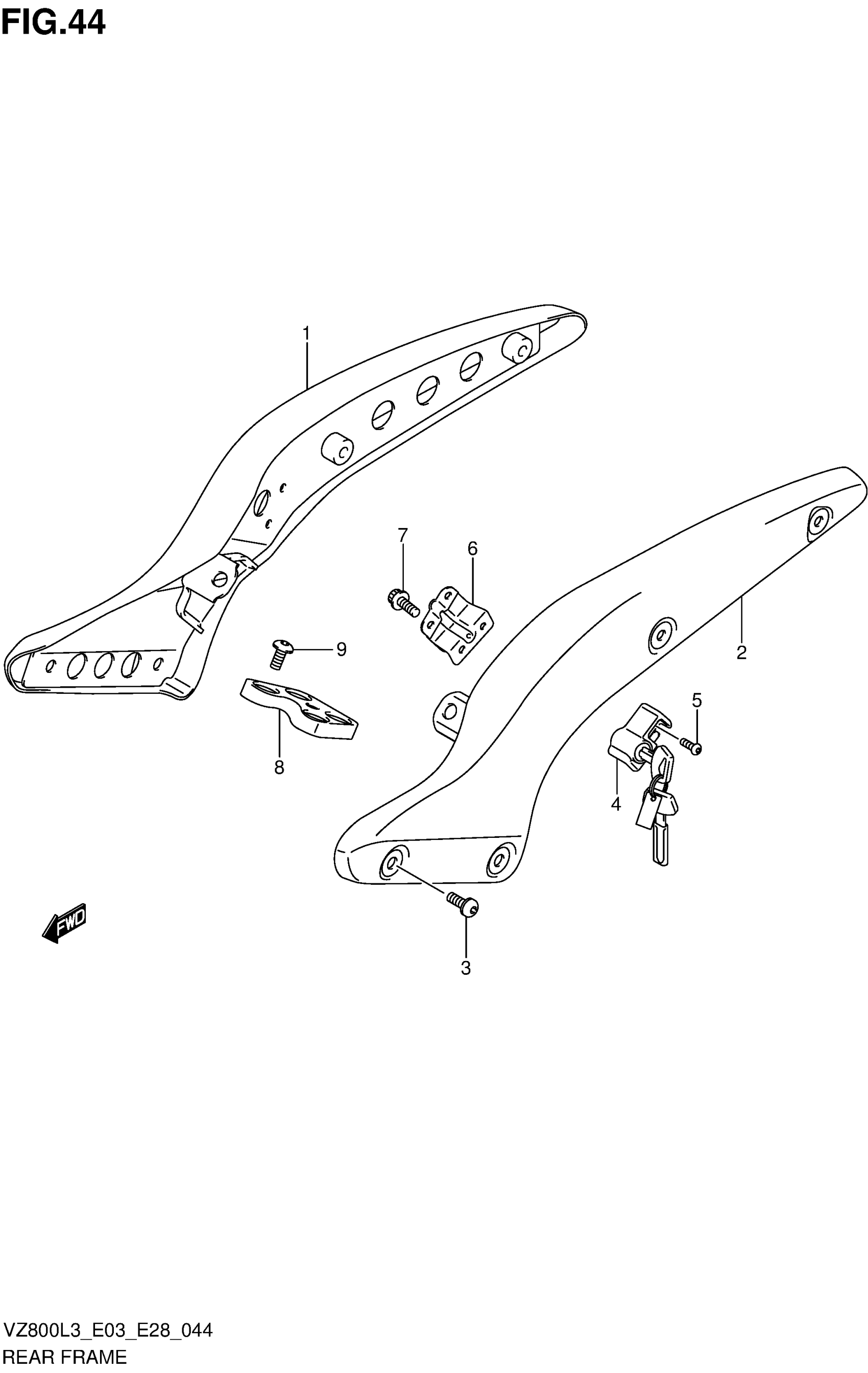

Find the part on the Rear Frame diagram for your 2013 Suzuki VZ800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ800L3 Rear Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, REAR RH

41210-39G50

1
Out of stock

2

FRAME, REAR LH

41220-39G50

1
Out of stock

3

BOLT (10X25)

09139-10003

6
Out of stock

4

LOCK SET HELMET

95700-41821

1
Out of stock

5

SCREW (6X14)

09139-06089

1
Out of stock

6

BRACKET

95710-39G00

1
Out of stock

7

BOLT

07120-0616A

2
Out of stock

8

PLATE, FUEL TANK

41313-41F60

1
Out of stock

9

BOLT (8X16)

09106-08140

4
Out of stock
