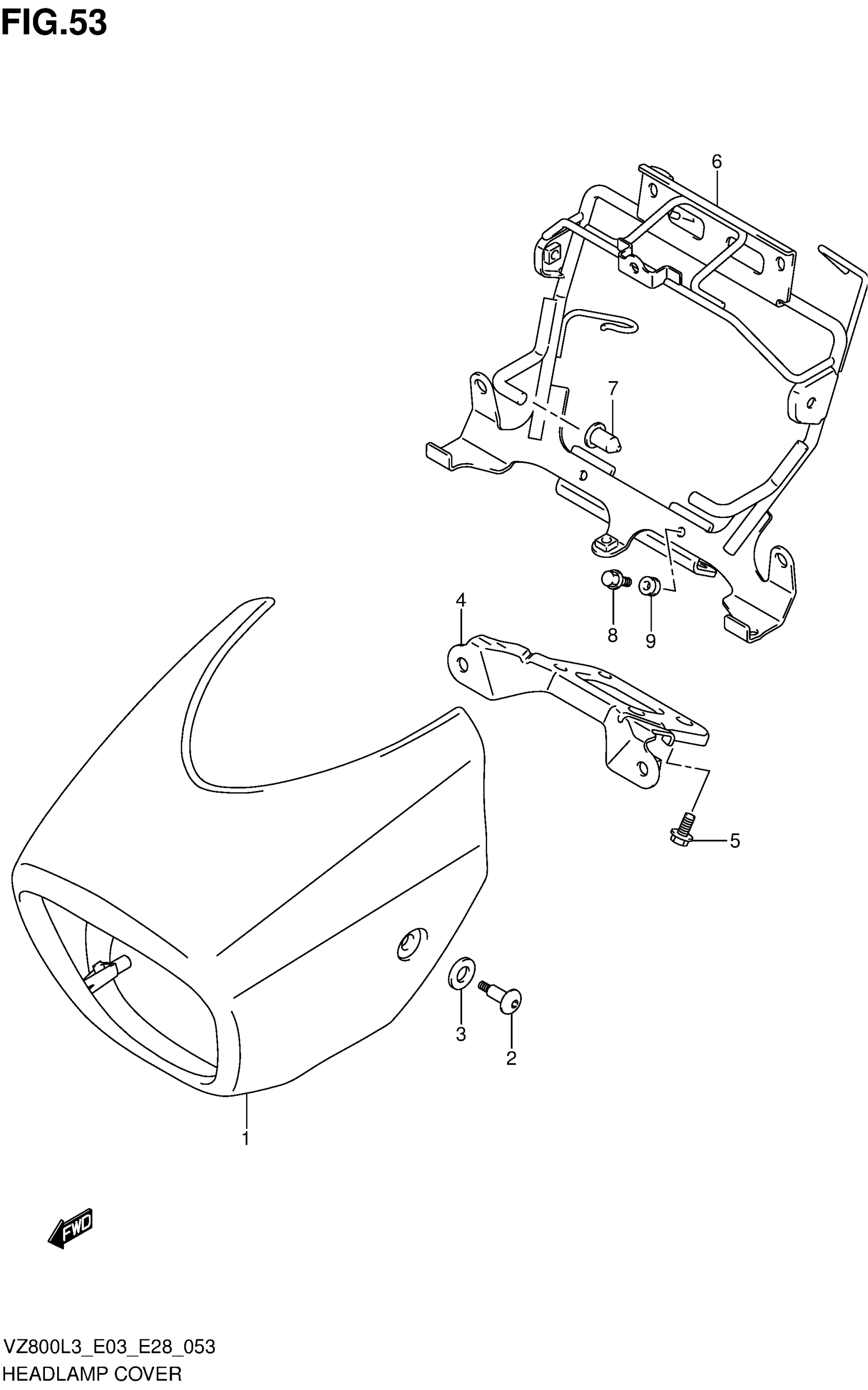

Suzuki VZ800L3 (2013) HEADLAMP COVER Diagram

#

Description
Price

1

COVER, HEADLAMP (SILVER)

51811-39G10-YMD

$246.22

1

COVER, HEADLAMP (BLACK)

51811-39G10-YVB

$249.37

2

SCREW (6X22)

09139-06191

$4.03

3

WASHER

53121-39G10

$3.84

4

BRACKET

51860-39G00

Unavailable

5

BOLT

01547-0612A

$2.03

6

BRACE, COVER

51850-39G10

Unavailable

7

CUSHION

51831-21D00

$4.58

8

BOLT (8X12)

01550-0812A

$2.32

9

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10
