GEAR SHIFTING

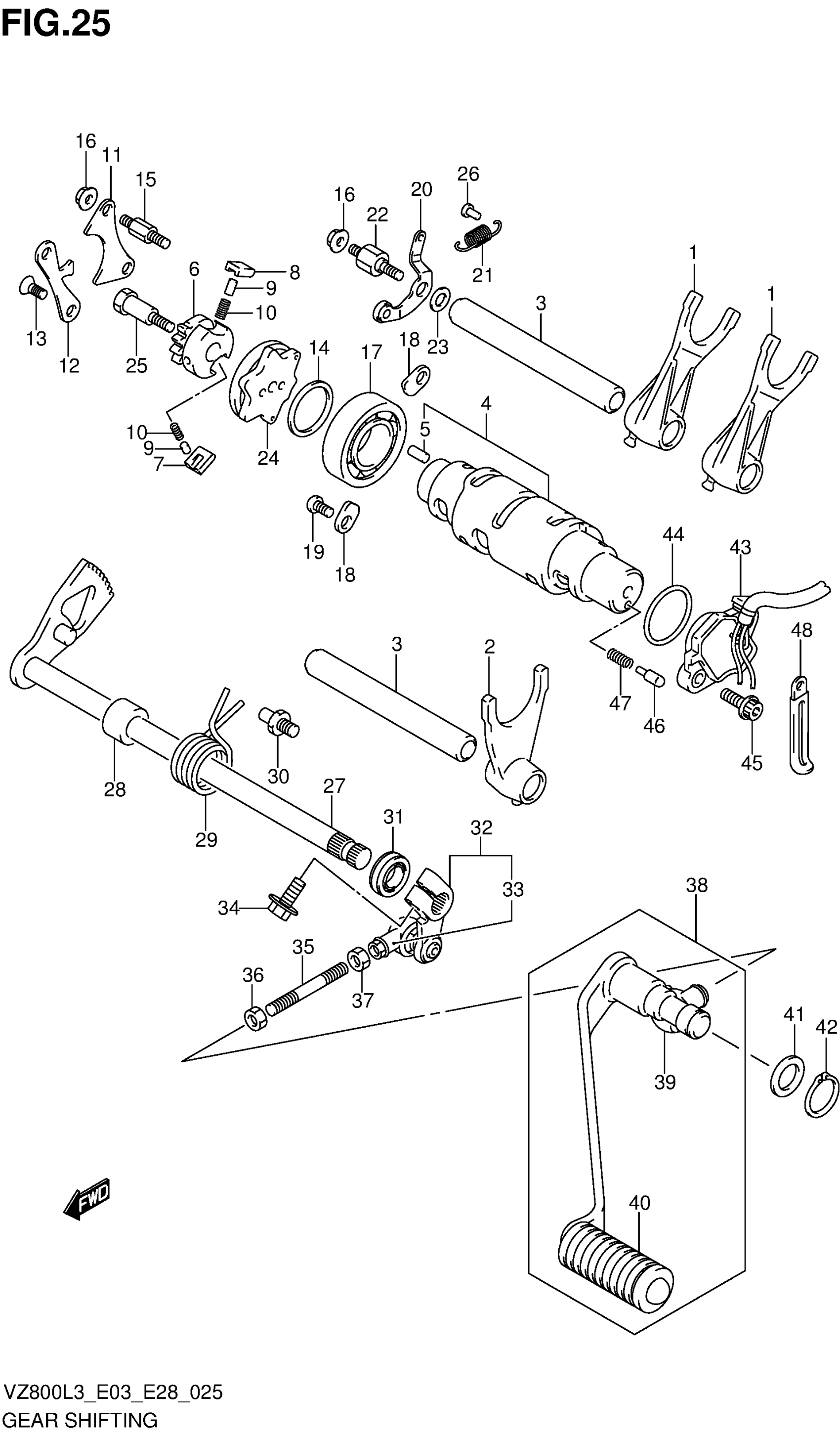

2013 Suzuki VZ800L3 Gear Shifting Diagram
Find the part on the Gear Shifting diagram for your 2013 Suzuki VZ800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FORK, GEAR SHIFTING NO.1
25211-38A10
2
FORK, GEAR SHIFTING NO.2
25221-38A10
5
PIN (4X13.8)
04221-04089
6
GEAR, GEAR SHIFT CAM DRIVEN
25322-31310
9
PIN (5X8)
09261-05003
11
LIFTER, PAWL
25331-38A00
12
GUIDE, CAM
25341-38A00
13
SCREW (6X12)
09126-06011
15
BOSS, SHIFT PAWL LIFTER
25332-38A10
16
NUT
08316-1006A
17
BEARING (25X47X8)
09262-25006
18
RETAINER, BEARING
24741-21A00
19
SCREW (6X12)
09125-06122
20
STOPPER, CAM
25350-38A00
22
SUPPORT, CAM STOPPER
25355-38A10
23
WASHER
08211-06141
24
PLATE, GEAR SHIFT CAM
25380-38A02
26
RIVET
09223-04004
30
STOPPER, ARM
25671-01011
31
OIL SEAL (12X22X9)
09285-12006
33
.COVER, DUST This part replaces 25526-47000.
25526-47001
34
BOLT
01547-0620A
39
.COVER, DUST This part replaces 25526-47000.
25526-47001
42
CIRCLIP
08331-3114A
45
BOLT
07120-0516A
46
PIN (5X15.5)
09209-05011
47
SPRING
09440-04010
