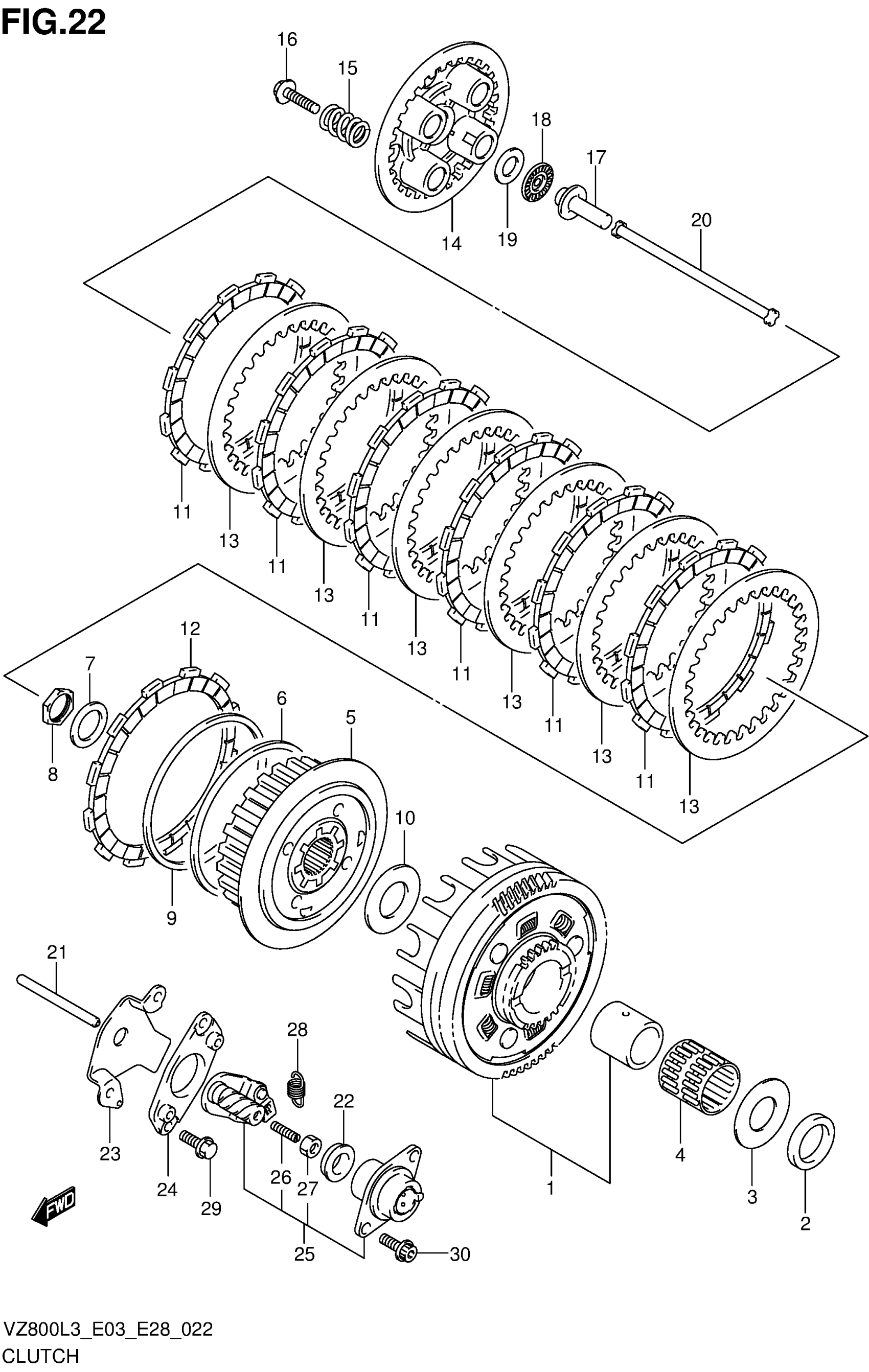

Find the part on the Clutch diagram for your 2013 Suzuki VZ800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VZ800L3 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38840

1
Out of stock

2

SPACER (25X38X6.5)

09180-25077

1
Out of stock

3

WASHER (25X50X2.5)

09160-25055

1
Out of stock

4

BEARING (35X40X35.8)

09263-35017

1
Out of stock

5

HUB, SLEEVE

21410-41F00

1
Out of stock

6

SEAT, WAVE WASHER

21471-37400

1
Out of stock

7

WASHER

09164-22007

1
Out of stock

8

NUT

09140-22008

1
Out of stock

9

WASHER (110.5X119X1.2)

09164-00004

1
Out of stock

10

WASHER (25X50X2.5)

09160-25055

1
Out of stock

11

PLATE, DRIVE NO.1 (T:3.0)

21441-37400

6
Out of stock

12

PLATE, DRIVE NO.2 (T:3.5)

21442-37401

1
Out of stock

13

PLATE, DRIVEN (T:1.6)

21451-14A00

6
Out of stock

14

DISC, PRESSURE

21462-27A00

1
Out of stock

15

SPRING, CLUTCH

21413-41F00

4
Out of stock

16

BOLT (6X30)

09116-06203

4
Out of stock

17

PIECE, PUSH

23121-31E00

1
Out of stock

18

BEARING (15X28X2)

09263-15003

1
Out of stock

19

WASHER (15.5X28X1)

09160-15045

1
Out of stock

20

ROD, PUSH RH

23110-27A00

1
Out of stock

21

ROD, PUSH LH

23111-45C00

1
Out of stock

22

OIL SEAL (6X34X10.5)

09283-06010

1
Out of stock

23

RETAINER,CL PUSH ROD OIL SEAL

23117-45C00

1
Out of stock

24

BRACKET, RELEASE SCREW

23130-45C00

1
Out of stock

25

SCREW ASSY, CLUTCH RELEASE

23200-41F00

1
Out of stock

26

SCREW (6X25)

09134-06010

1
Out of stock

27

.NUT

08310-00067

1
Out of stock

28

SPRING

09443-09050

1
Out of stock

29

BOLT

07120-0620B

2
Out of stock

30

BOLT

07120-0616B

2
Out of stock
