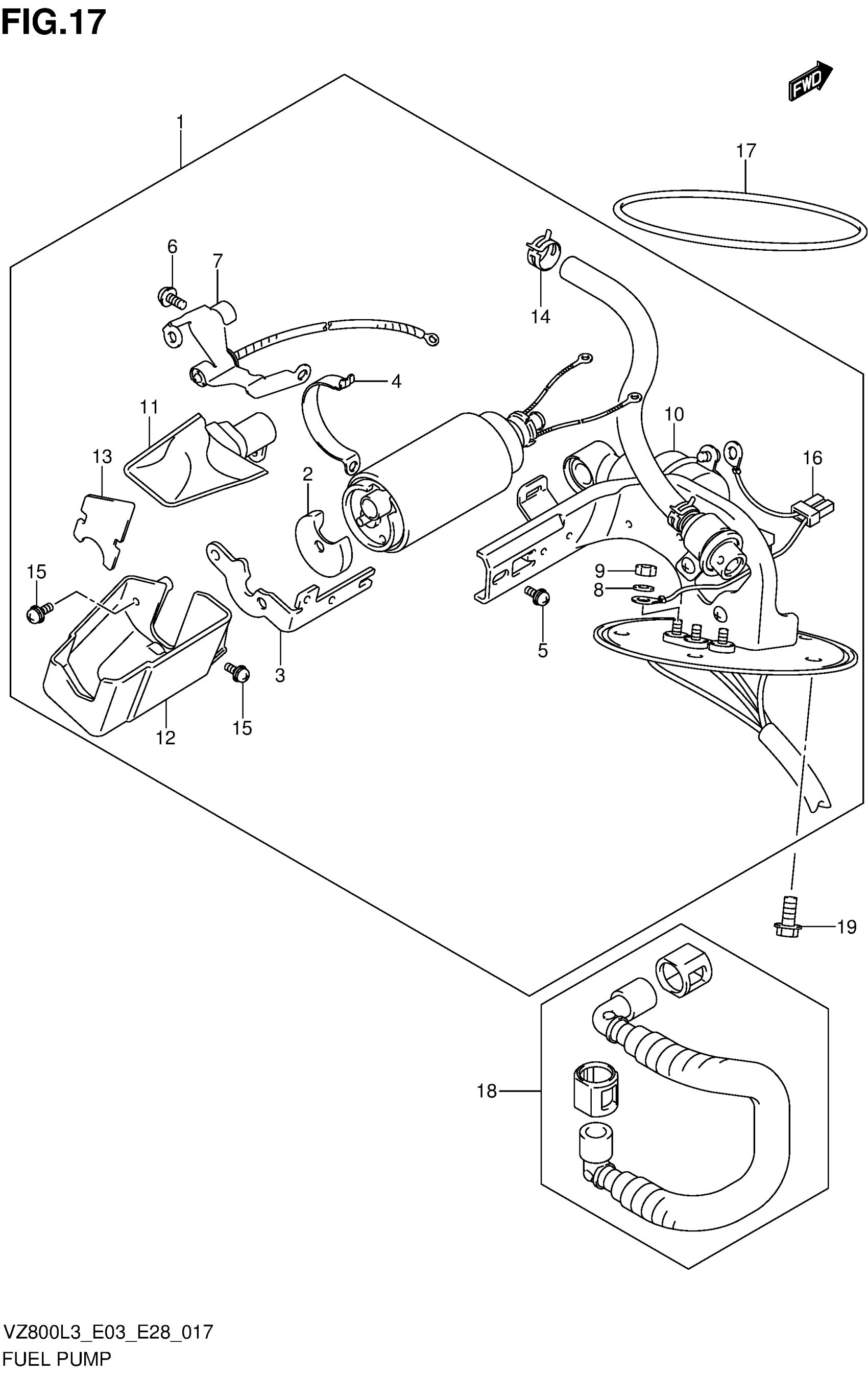

Suzuki VZ800L3 (2013) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, FUEL

15100-39G10

$749.10

2

CUSHION

15111-41F10

$17.67

3

HOLDER

15112-39G00

Unavailable

4

BAND, FUEL PUMP

15115-10F00

Unavailable

5

SCREW

15116-10F00

$5.58

6

SCREW

15116-10F10

Unavailable

7

THERMISTOR

15170-39G10

$213.37

8

SPRING WASHER

15172-35F00

$7.20

9

NUT

15173-35F00

Unavailable

10

PLATE ASSY

15410-39G00

Unavailable

11

STRAINER, FUEL

15420-39G00

$102.82

12

VESSEL

15425-39G00

Unavailable

13

COVER

15426-39G00

Unavailable

14

CLIP

15427-39G00

Unavailable

15

SCREW

15429-41F20

Unavailable

16

HARNESS

15185-39G10

Unavailable

17

O-RING

15201-35F00

$27.60

18

HOSE, FUEL This part replaces 15810-39G02.

15810-39G03

$55.57

19

BOLT

07120-0612A

$2.50
