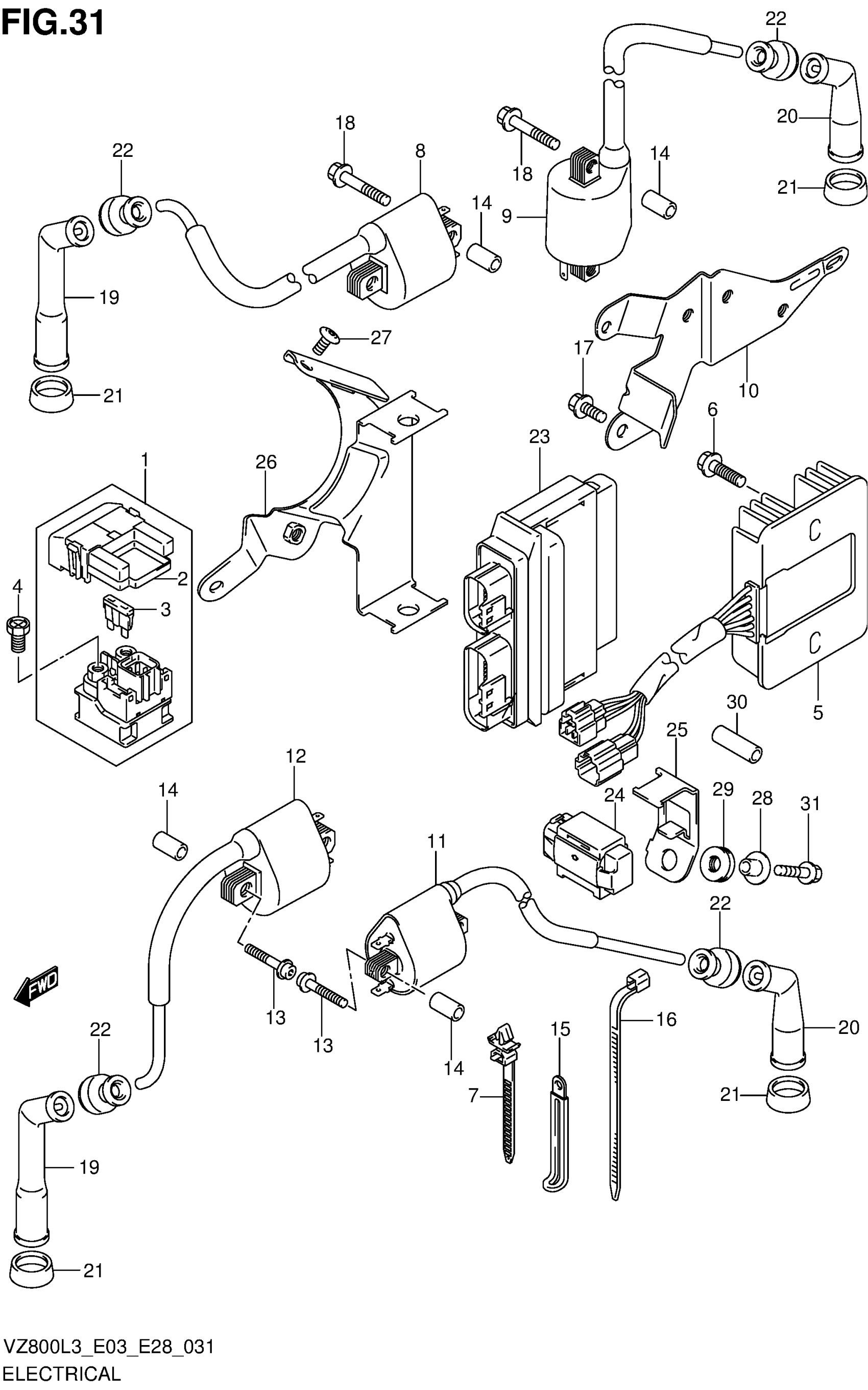

Suzuki VZ800L3 (2013) ELECTRICAL (VZ800L3 E28) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$67.32

2

COVER

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

SCREW

02162-0620B

$2.28

7

CLAMP (L:90)

09407-11402

$1.80

8

COIL ASSY, IGNITION REAR

33410-39G00

$124.28

9

COIL ASSY, IGNITION REAR

33410-39G10

$124.28

10

BRACKET, IGNITION COIL REAR

33414-39G00

Unavailable

11

COIL ASSY, IGNITION FRONT

33420-39G00

$124.28

12

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$86.43

13

BOLT (5X35)

09106-05033

$3.50

14

SPACER (6.4X10X18)

09180-06195

$3.68

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

16

CLAMP (L:190)

09407-19401

$3.05

17

BOLT

01547-0610A

$2.45

18

BOLT

01547-0635A

$2.30

19

CAP ASSY, SPARK PLUG (CENTER)

33510-11410

$25.95

20

CAP ASSY, SPARK PLUG (SIDE)

33510-38B00

$31.72

21

SEAL, SPARK PLUG

33541-47D00

$7.83

22

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

23

CONTROL UNIT, FI

32920-39GG0

Unavailable

24

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

25

BRACKET, FUEL CUT SENSOR

33961-41F00

Unavailable

26

BRACKET, FI CONT UNIT

44880-43H00

Unavailable

27

SCREW (6X12)

09139-06108

Unavailable

28

SPACER (6.2X8.4X6.9)

09180-06325

$3.79

29

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

30

HOSE,5X10X600 | L:600->10 This part replaces 09352-50823-600.

44421-13ER0

$10.06

31

BOLT

01547-0616A

$2.03
