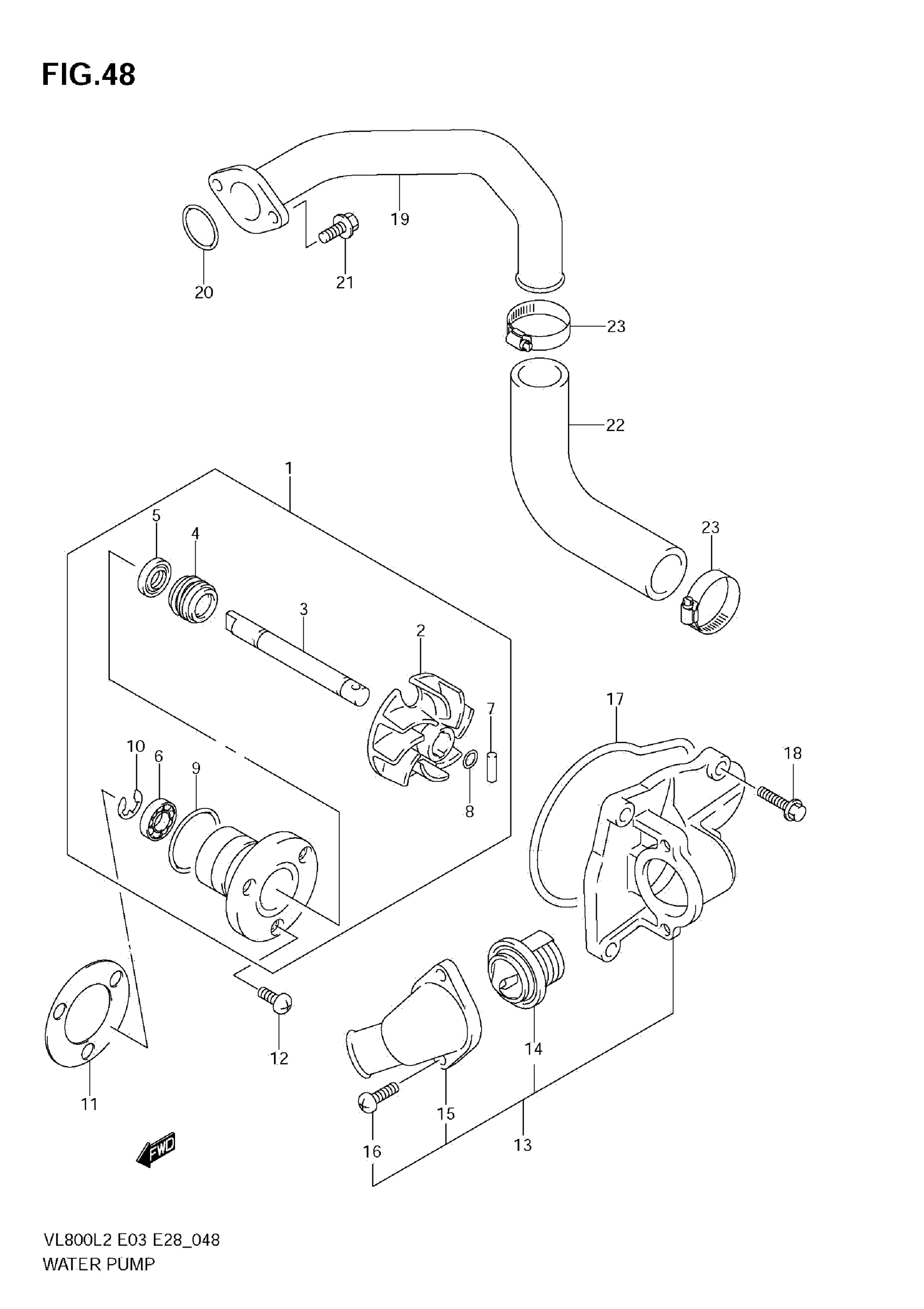

Suzuki VZ800L2 (2012) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-38A10.

17400-38A11

$160.95

2

IMPELLER

17491-38A00

$27.97

3

SHAFT

17511-38A00

Unavailable

4

.SEAL,MECHANICAL This part replaces 17470-02F10.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5)

09283-10004

$4.96

6

BEARING (10X22X6)

09262-10004

$32.70

7

PIN

17516-38A00

Unavailable

8

O RING

17515-38A00

$1.92

9

.O RING This part replaces 17417-38A00.

17417-38A01

$3.23

10

.E-RING

08332-1108A

$1.78

11

GASKET, WATER PUMP

17431-38A10

$5.98

12

SCREW

02112-0612B

$1.93

13

CAP ASSY, WATER PUMP

17410-41F30

Unavailable

14

THERMOSTAT WATER This part replaces 17670-33400.

17670-33401

$35.61

15

CONNECTOR

17412-41F00

Unavailable

16

SCREW

02112-0616A

$1.49

17

O RING

17435-38A00

$6.28

18

BOLT

01547-0620A

$2.03

19

PIPE, CYLINDER IN

17890-41F00

Unavailable

20

O RING (D:2.3,ID:24.4)

09280-24007

$1.91

21

BOLT

01547-0616A

$2.03

22

HOSE, WATER PUMP OUT

17858-38A10

Unavailable

23

CLAMP

09402-32512

$12.85
