2012 Suzuki VZ800L2 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

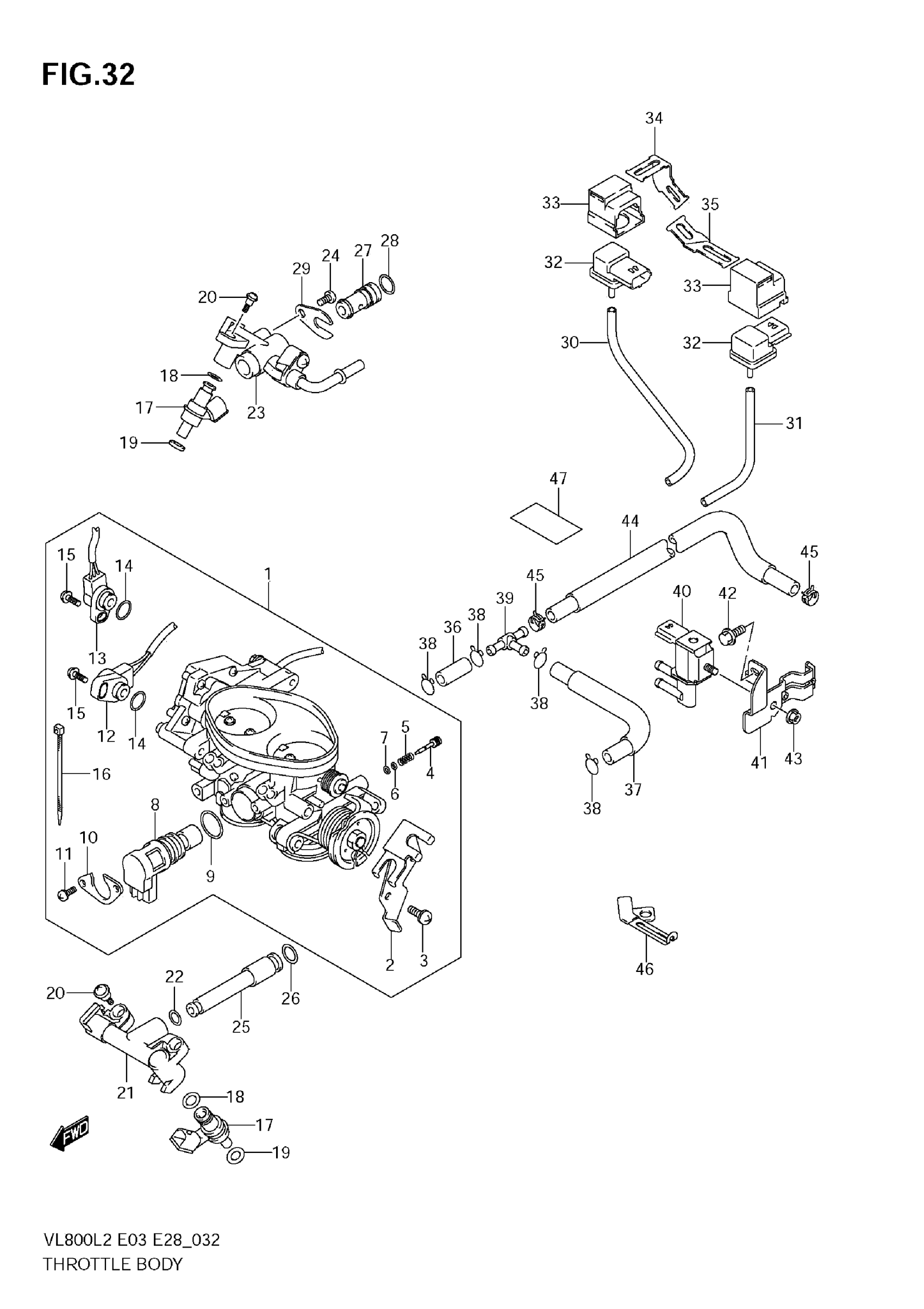

2012 Suzuki VZ800L2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, THROTTLE This part replaces 13401-41F30.

13401-41F32

1
Out of stock

2

PLATE, STAY

13565-41F20

1
Out of stock

3

SCREW

13601-21H00

2
Out of stock

4

SCREW

13269-18G00

2
Out of stock

5

SPRING

13271-43E00

2
Out of stock

6

WASHER

13291-26E00

2
Out of stock

7

O RING

13295-26E00

2
Out of stock

8

.VALVE ASSY, ISC This part replaces 18117-15H11.

18117-15H12

1
Out of stock

9

O RING

18119-05H00

1
Out of stock

10

PLATE, STAY

13428-15H00

1
Out of stock

11

SCREW

13605-15H00

2
Out of stock

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

1
Out of stock

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F00.

13580-41F02

1
Out of stock

14

O RING

13575-40F00

2
Out of stock

15

SCREW

13605-40F00

2
Out of stock

16

CLAMP (L:145)

09407-14407

1
Out of stock

17

INJECTOR ASSY

15710-26GA0

2
Out of stock

18

.O-RING

15721-21H00

2
Out of stock

19

.RING,SEAL

15722-21H00

2
Out of stock

20

SCREW

13602-34F50

4
Out of stock

21

PIPE SET, FUEL FR

13473-41FA0

1
Out of stock

22

.O-RING

15721-24F00

1
Out of stock

23

PIPE SET, FUEL RR

13473-41FB0

1
Out of stock

24

SCREW

13602-10F10

1
Out of stock

25

JOINT

13473-41FC0

1
Out of stock

26

O-RING

15721-10G00

1
Out of stock

27

PLUG, STRAIGHT

13474-41F20

1
Out of stock

28

O-RING

15721-41F20

1
Out of stock

29

PLATE

13475-41F20

1
Out of stock

30

HOSE

13683-41FA0

1
Out of stock

31

HOSE

13683-41FD0

1
Out of stock

32

SENSOR, PRESSURE

18591-42F00

2
Out of stock

33

HOLDER

18595-42F20

2
Out of stock

34

BRACKET, BOOST SENSOR FR

18598-41F00

1
Out of stock

35

BRACKET, BOOST SENSOR RR

18599-39G00

1
Out of stock

36

TUBE, RUBBER

13683-41FC1

1
Out of stock

37

TUBE,RUBBER This part replaces 13682-41F30.

13682-41F31

1
Out of stock

38

CLIP

13693-24F00

4
Out of stock

39

.NIPPLE

13685-48B00

1
Out of stock

40

VALVE, CANISTER

18117-52G00

1
Out of stock

41

BRACKET, VALVE

18119-39G00

1
Out of stock

42

BOLT

01550-0612B

1
Out of stock

43

NUT

08316-1006A

1
Out of stock

44

HOSE, CANISTER PURGE

13680-39G00

1
Out of stock

45

CLIP (ID:10.5,H:8)

09401-10409

2
Out of stock

46

CLAMP

44480-41F00

1
Out of stock

47

TAPE,HARNESS (28X50X0.13)

36611-16G00

1
Out of stock
