Description

Price

1

TANK ASSY, FUEL (BLACK)

44100-43H00-YVB

$1,315.05

2

EMBLEM, RH

68111-41F31

$80.57

3

EMBLEM, LH

68121-41F31

$80.57

4

CAP SET,FUEL TA This part replaces 44200-41830.

44200-41832

$179.58

5

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

6

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

7

CLAMP (L:248)

09407-25402

$4.19

8

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.02

9

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$4.97

10

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.07

11

WASHER (8.5X33X1.5)

09160-08146

$2.58

12

BOLT (8X35)

01550-0835A

$2.80

13

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$116.39

14

SHIELD, HEAT NO.1

44192-39G00

$166.93

15

SHIELD, HEAT NO.2

44191-43H00

$98.98

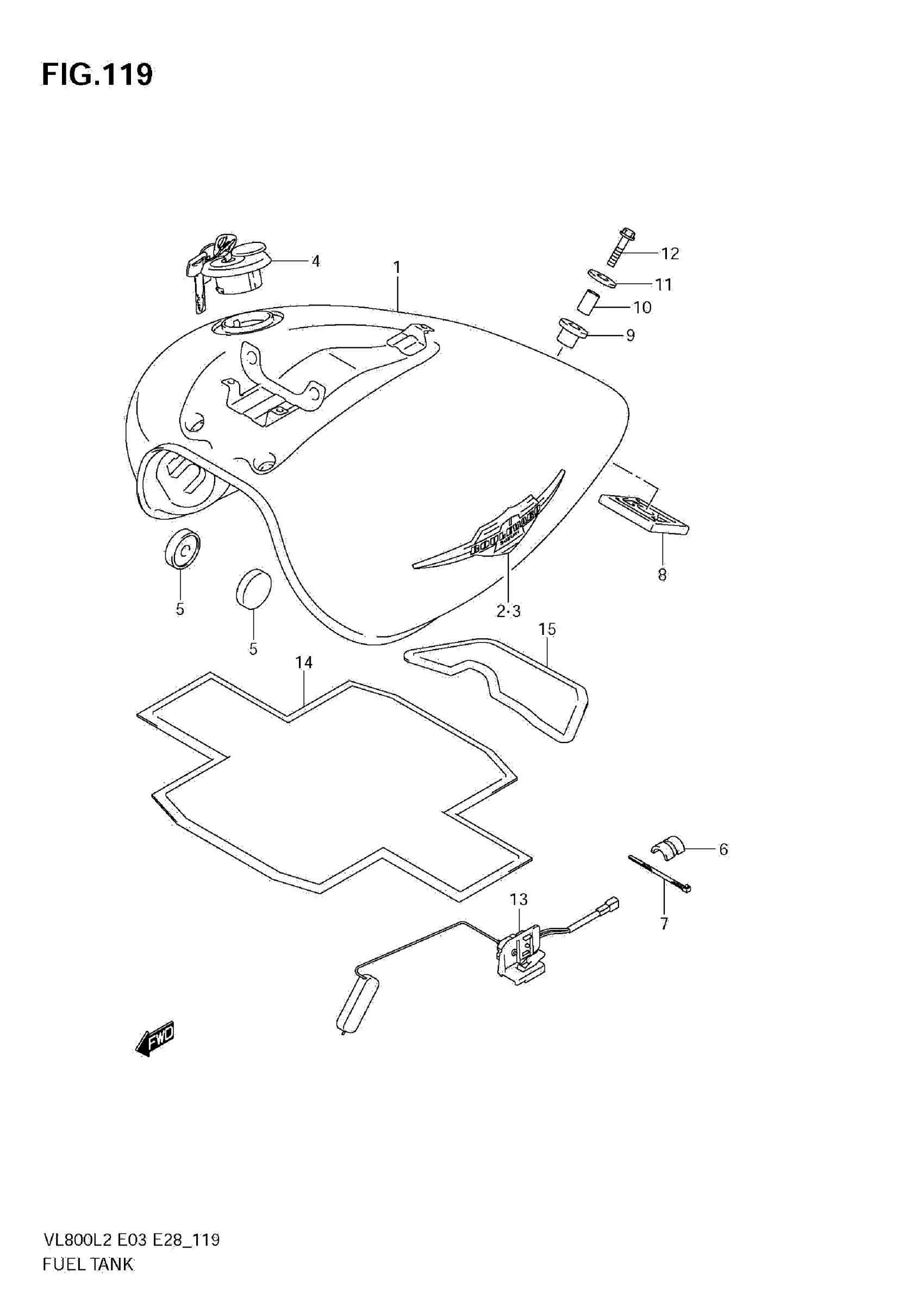

Suzuki VZ800L2 (2012) FUEL TANK (VL800 E03) Diagram
