2012 Suzuki VZ800L2 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

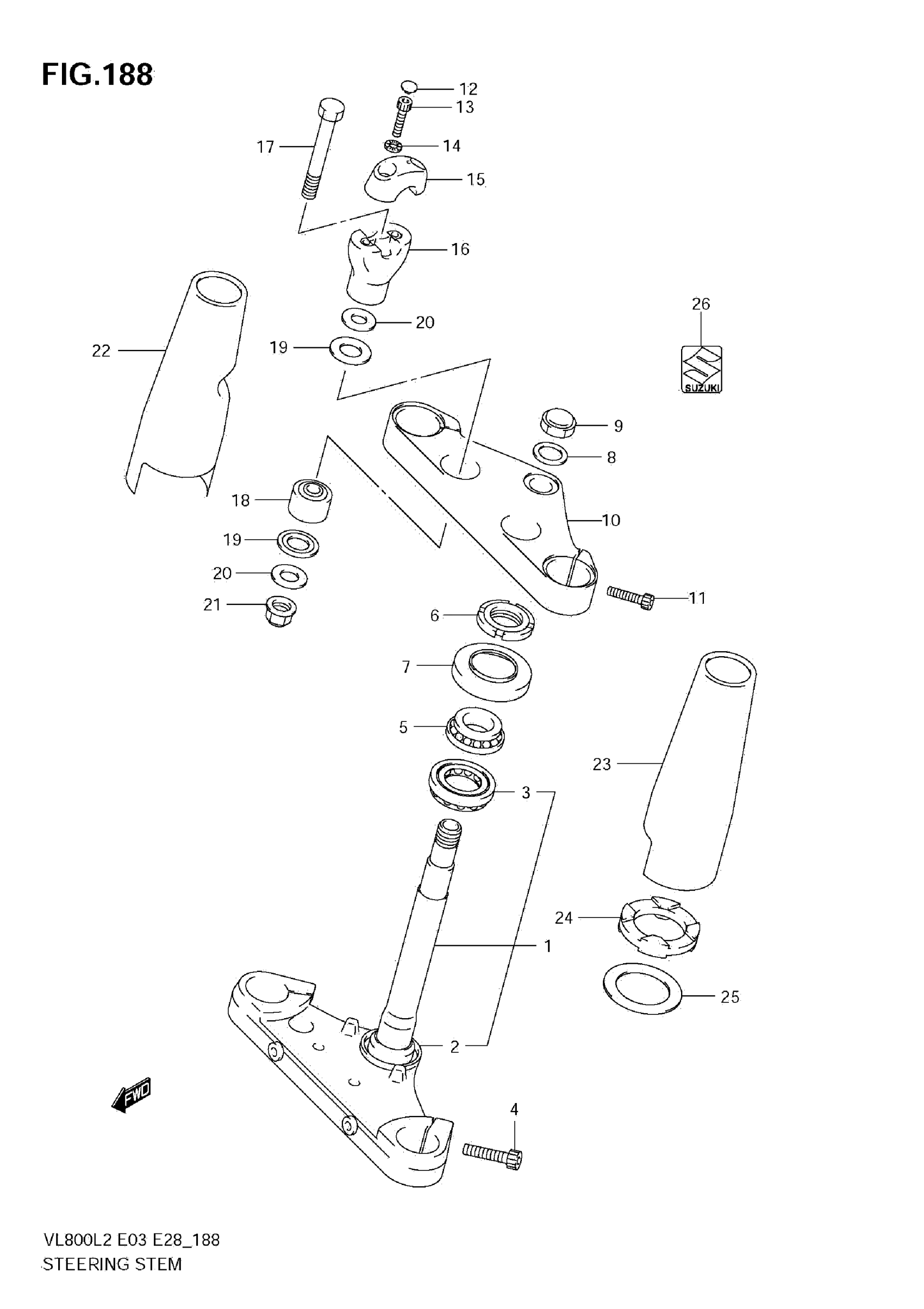

2012 Suzuki VZ800L2 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING

51410-41F50

1
Out of stock

2

SEAL, STEERING LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT

07130-1030B

2
Out of stock

5

BEARING (25X47X15)

09267-25009

1
Out of stock

6

NUT, STEM

51631-28000

1
Out of stock

7

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

8

WASHER, STEM

51356-24B01

1
Out of stock

9

NUT, STEM

51353-24B00

1

$34.62

In stock

10

HEAD, STEERING STEM

51311-41F40

1
Out of stock

11

BOLT

51321-06G00

2
Out of stock

12

CAP (OD:11)

09250-06011

4
Out of stock

13

BOLT This part replaces 51321-10F00.

07130-08307

4
Out of stock

14

WASHER

09164-08015

4
Out of stock

15

HOLDER, HANDLE UPPER

56211-41F20

2
Out of stock

16

HOLDER, HANDLE LOWER

56221-41F20

2
Out of stock

17

BOLT, STAY

51226-41F20

2
Out of stock

18

DAMPER, RUBBER

56240-41F20

2
Out of stock

19

SEAT RUBBER

56245-41F20

4
Out of stock

20

WASHER

51354-41F20

4
Out of stock

21

NUT

56246-41F20

2
Out of stock

22

COVER, UPPER, R

51530-41F20

1
Out of stock

23

COVER, UPPER, L

51540-41F20

1
Out of stock

24

SEAT, RUBBER

51468-10F00

2
Out of stock

25

WASHER

51467-10F00

2
Out of stock

26

EMBLEM, "S"

68281-35F00

1
Out of stock
