2012 Suzuki VZ800L2 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

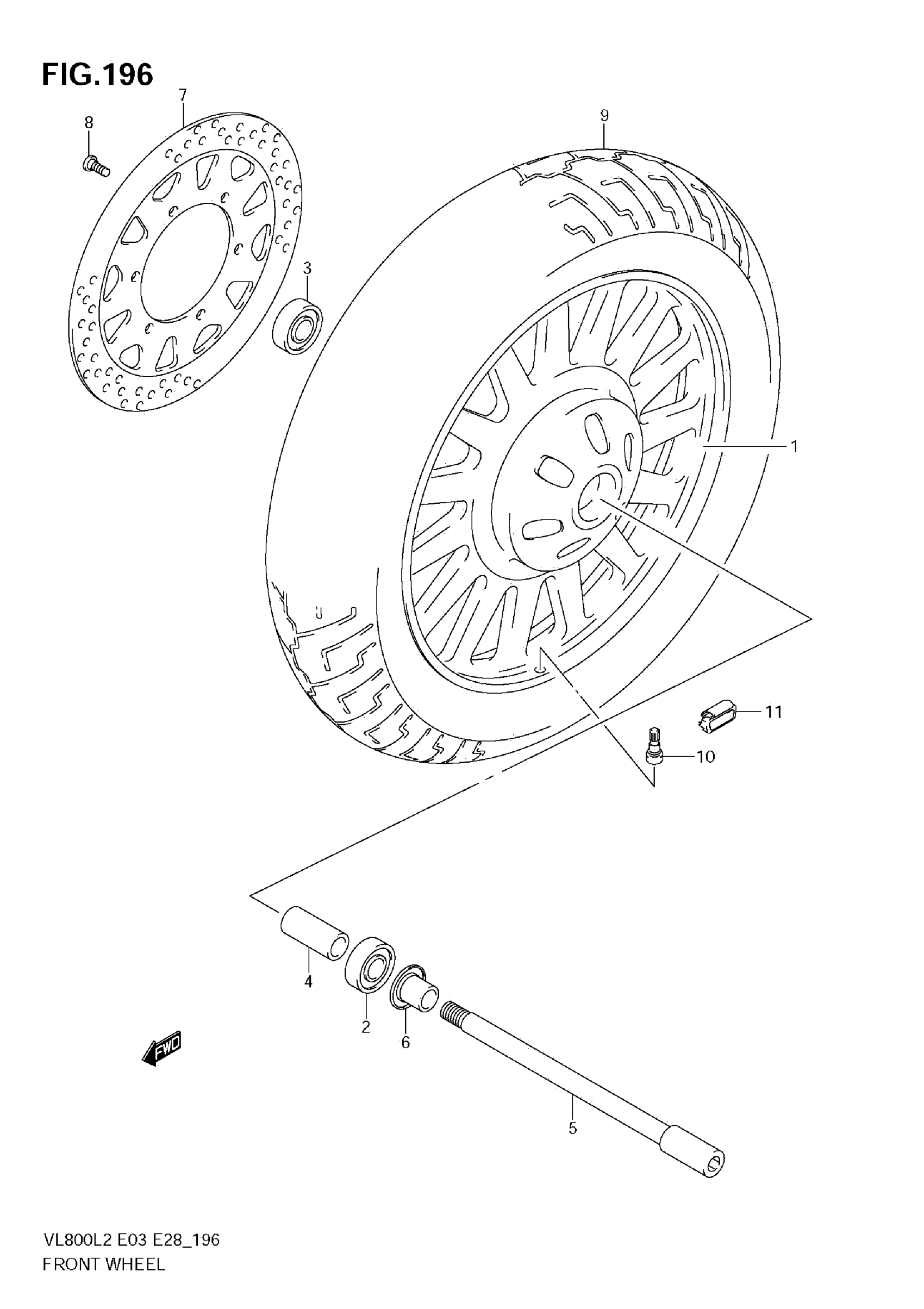

2012 Suzuki VZ800L2 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (16M/CXMT3.00)

54111-41F10-20H

1
Out of stock

2

1

$17.05

In stock

3

BEARING | RH

08143-62037

1
Out of stock

4

SPACER (17.5X25X102)

09180-17080

1
Out of stock

5

AXLE, FRONT

54711-41F00

1
Out of stock

6

SPACER, AXLE LH

54740-32C00

1
Out of stock

7

DISC, FRONT BRAKE RH

59211-41F00

1
Out of stock

8

BOLT (8X21)

09106-08160

6
Out of stock

9

TIRE,FR(130/90 | GS-23F D This part replaces 55110-41F20.

55110-41F21

1
Out of stock

10

VALVE ASSY, WHEEL RIM

43130-24A00

1
Out of stock

11

BALANCER, WHEEL NO.1

43222-73H10

1
Out of stock

11

BALANCER, WHEEL NO.2

43224-73H10

1
Out of stock

11

BALANCER, WHEEL NO.3

43226-73H10

1
Out of stock
