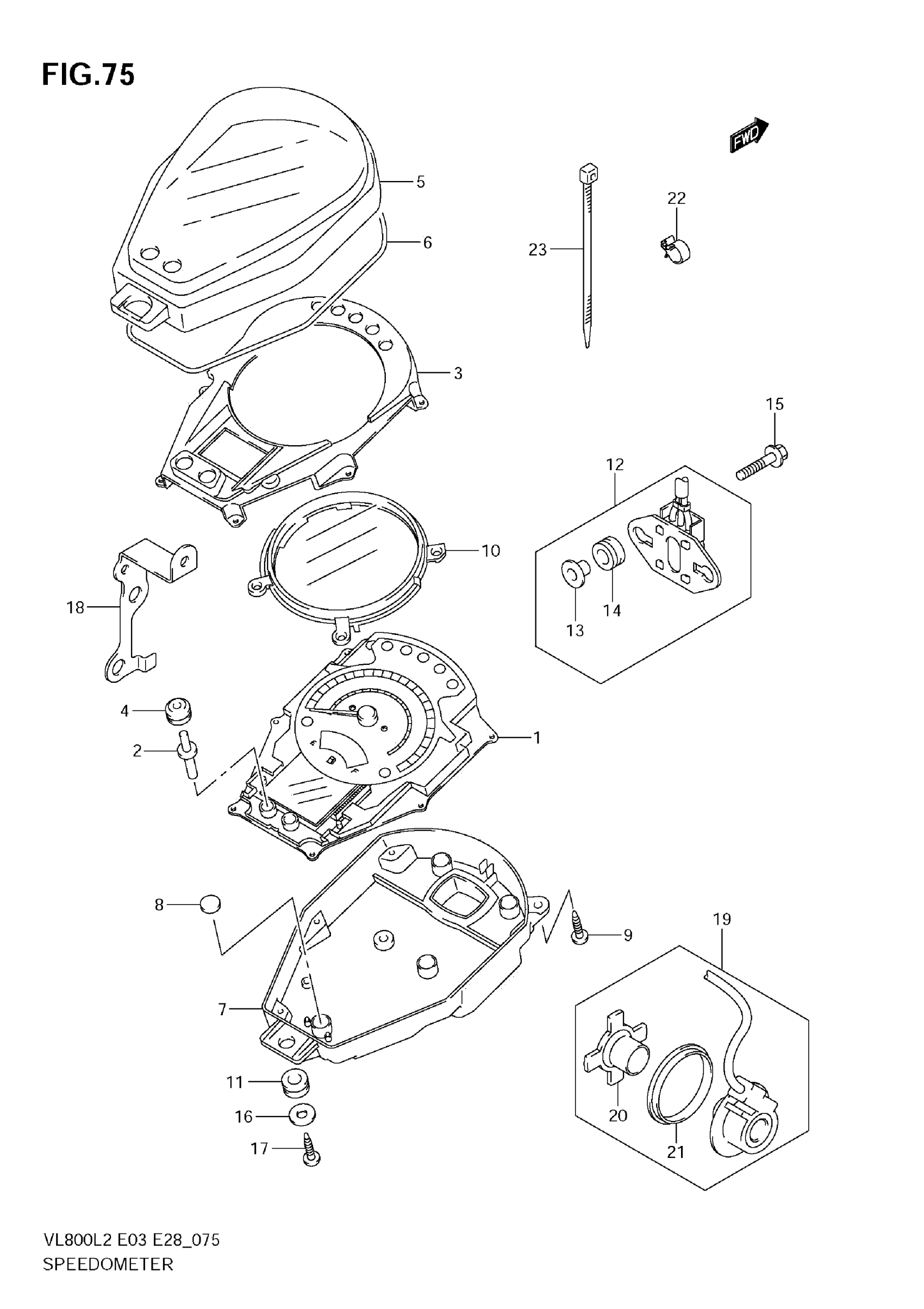

Suzuki VZ800L2 (2012) SPEEDOMETER (VL800T E03) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-43H50

$843.10

2

KNOB

34124-16G00

$9.42

3

PLATE, WINDOW

34125-43H40

$64.68

4

BUSHING

34126-44G00

$10.48

5

CASE ASSY

34151-43H00

$178.35

6

PACKING, RUBBER

34153-43H00

$28.18

7

CASE, LOWER

34156-43H00

Unavailable

8

CUSHION, METER

34167-13E00

Unavailable

9

SCREW (3X12)

34183-29F00

$3.84

10

RING

34193-43H00

$122.58

11

.CUSHION

34996-43410

$4.35

12

RESISTOR ASSY This part replaces 36510-39F00.

36510-39F01

$72.30

13

SPACER (6.5X10X11.6)

09180-06319

$3.85

14

CUSHION

09320-10015

$2.54

15

BOLT (6X25)

09116-06047

Unavailable

16

WASHER (5.5X16X1.2)

09160-05037

$1.49

17

SCREW

03541-0516A

$1.49

18

GUIDE, SPEED SENSOR

34938-41F50

Unavailable

19

SENSOR, SPEEDO

34990-41F10

$249.50

20

OIL SEAL (44X55X6)

09286-44001

$11.67

21

MAGNET

34983-27G00

$32.36

22

CLAMP

09403-06410

$2.53

23

CLAMP (L:145)

09407-14407

$3.57
