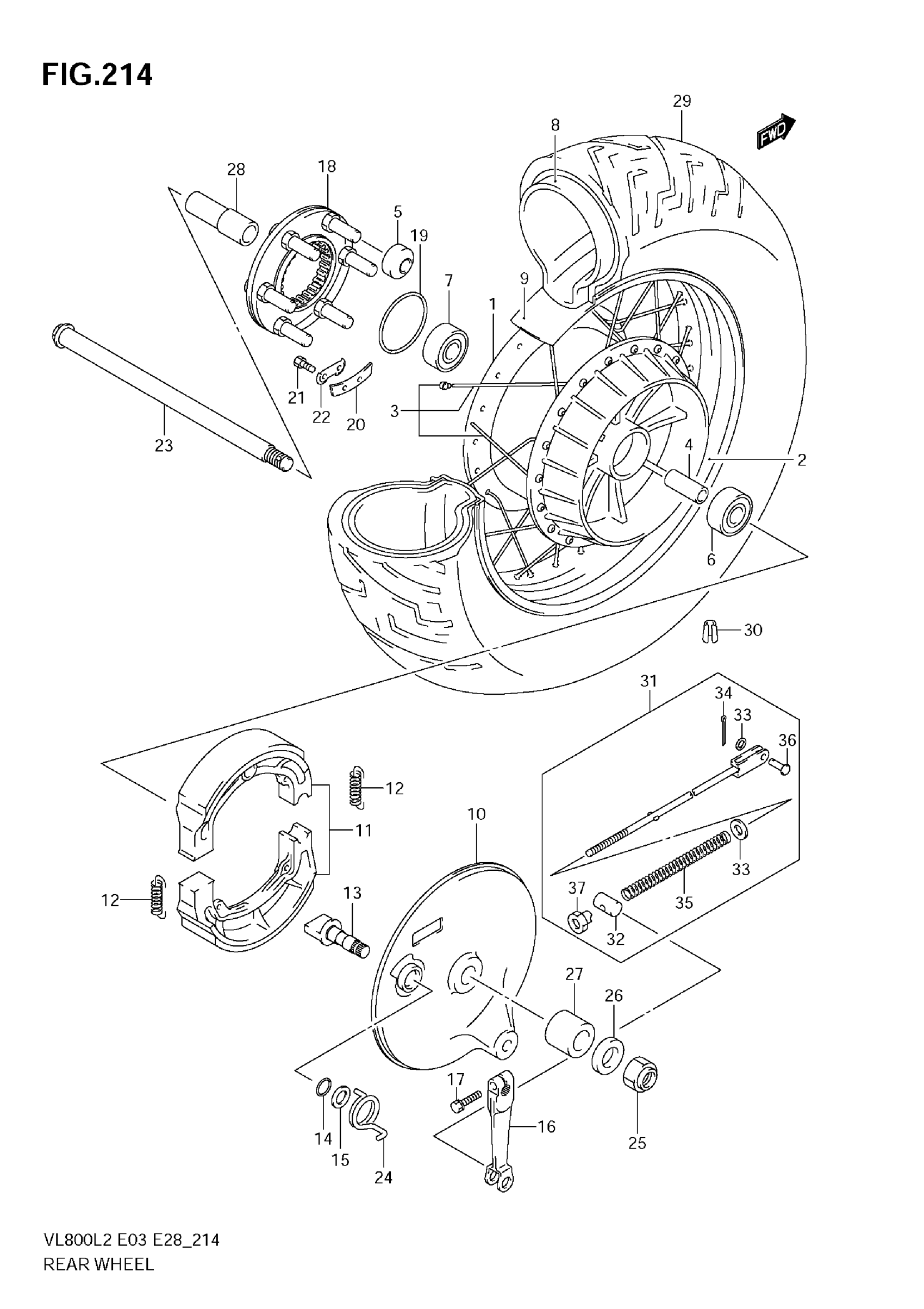

Find the part on the Rear Wheel diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki VZ800L2 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

64110-41F20

1
Out of stock

2

RIM,REAR WHEEL (15M/CXMT4.00)

65311-41F00

1
Out of stock

3

SPOKE SET, REAR WHEEL

65320-41F00

1
Out of stock

4

SPACER (17.5X25X113)

09180-17092

1
Out of stock

5

BUSH

09319-12019

6
Out of stock

6

BEARING This part replaces 08123-63037.

08123-6303B

1
Out of stock

7

BEARING

08143-63037

1
Out of stock

8

TUBE ASSY,WHEEL INNER This part replaces 65200-41F00.

65200-41F01

1
Out of stock

9

PROTECTOR, WHEEL INNER TUBE This part replaces 65261-41F00.

65261-41F10

1
Out of stock

10

PANEL, REAR BRAKE ANCHOR (SILVER)

64210-38A70-20H

1
Out of stock

11

SHOE SET, BRAKE

64400-38820

1
Out of stock

12

SPRING, SHOE

55420-30000

2
Out of stock

13

CAM, BRAKE

64441-38A20

1
Out of stock

14

O RING (D:2.4,ID:14.8)

09280-15003

1
Out of stock

15

WASHER (15.5X24X1.6)

09160-15048

1
Out of stock

16

LEVER, BRAKE CAM

64451-38A01

1
Out of stock

17

BOLT

01570-06257

1
Out of stock

18

JOINT, HUB DRIVEN

64680-45113

1
Out of stock

19

O RING (D:2.1,ID:65)

09280-65003

1
Out of stock

20

WASHER, THRUST

64677-45110

3
Out of stock

21

BOLT (6X16)

09119-06049

6
Out of stock

22

WASHER

09169-06030

3
Out of stock

23

AXLE, REAR (L:302)

64711-19F00

1
Out of stock

24

SPRING

09448-33006

1
Out of stock

25

NUT

08319-2116A

1
Out of stock

26

WASHER (17X30X3.2)

09160-17050

1
Out of stock

27

SPACER, RH

64741-41F00

1
Out of stock

28

SPACER, LH

64772-34201

1
Out of stock

29

TIRE (170/80-15M/C 77H) | GS-23R This part replaces 65100-41F00.

65100-41F01

1
Out of stock

30

BALANCER WHEEL (15G)

55411-26G00

1
Out of stock

30

BALANCER WHEEL (30G)

55413-41F00

1
Out of stock

31

ROD ASSY, REAR BRAKE

43300-41F00

1
Out of stock

32

PIN (13X18)

09209-13018

1
Out of stock

33

WASHER

08322-0106B

2
Out of stock

34

COTTER PIN

04111-2015A

1
Out of stock

35

SPRING

09440-09004

1
Out of stock

36

PIN

09200-06013

1
Out of stock

37

NUT

09150-06010

1
Out of stock
