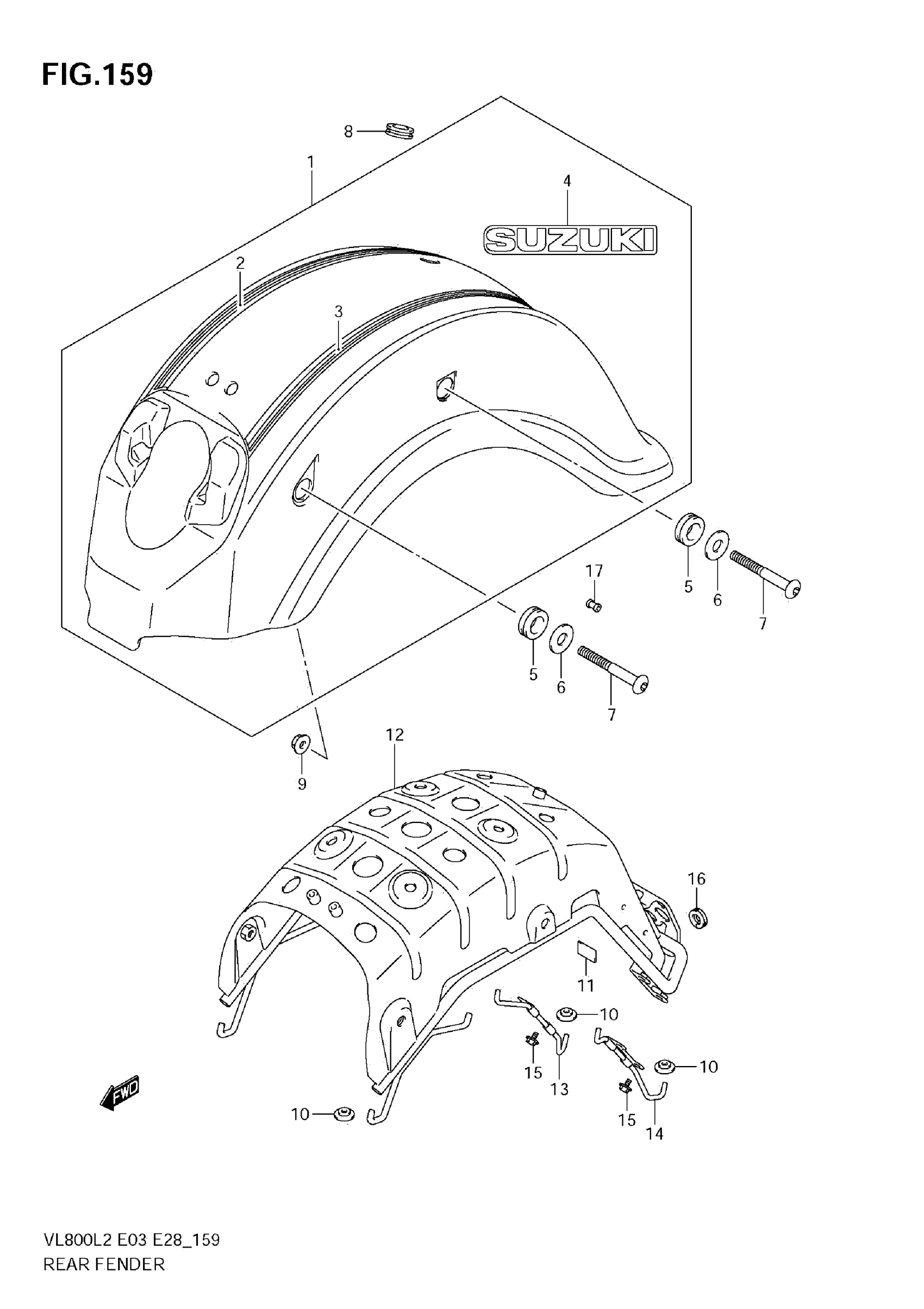

Suzuki VZ800L2 (2012) REAR FENDER (VL800T E03) Diagram

#

Description
Price

1

FENDER, REAR (WHITE/BLUE)

63110-43H20-AAB

Unavailable

1

FENDER,RR This part replaces 63110-43H20-AAC.

63110-43H21-AAC

$736.43

2

TAPE SET, RH (MOONLAND/SILVER) | FOR AAB

68170-43H00-AAD

Unavailable

2

TAPE SET, RH (BLUE/SILVER) | FOR AAC

68170-43H00-AAE

Unavailable

3

TAPE SET, LH (MOONLAND/SILVER) | FOR AAB

68710-43H00-AAD

Unavailable

3

TAPE SET, LH (BLUE/SILVER) | FOR AAC

68710-43H00-AAE

Unavailable

4

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

5

CUSHION

47191-24F00

$4.86

6

WASHER (15.5X26X2.3)

09160-15002

$1.70

7

BOLT

63161-41F00

$8.85

8

CUSHION

09320-15008

$3.56

9

NUT

08316-1008B

$2.65

10

CUSHION

09320-06026

$4.45

11

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.78

12

PLATE, REAR FENDER

63130-43H00

$468.58

13

BRACKET, LOWER RH

63150-43H00

$46.25

14

BRACKET, LOWER LH

63160-43H00

$46.25

15

BOLT

01550-0610B

$2.43

16

GROMMET

09308-10017

$5.65

17

PLUG (OD:9)

09250-07004

$3.72
