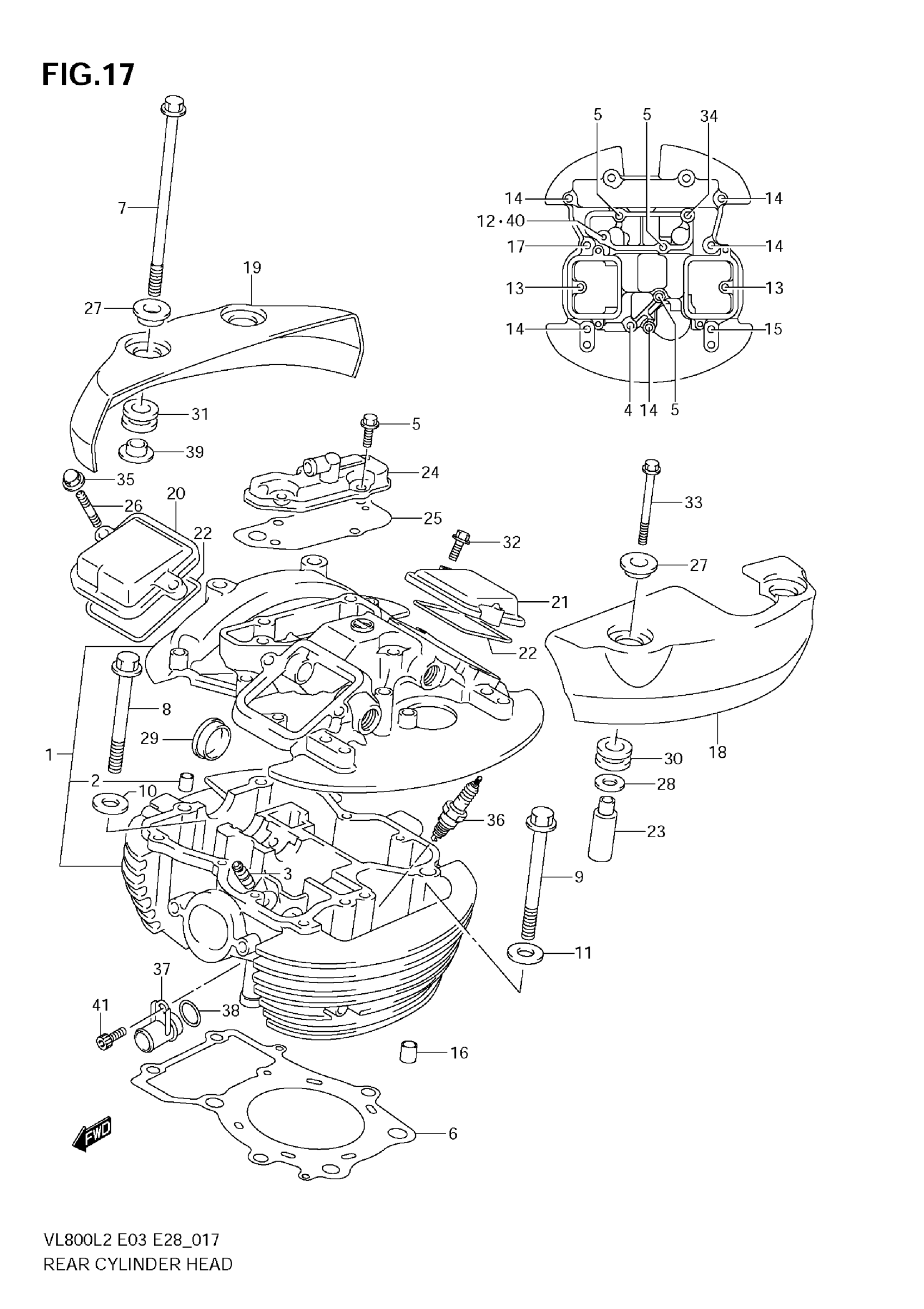

Suzuki VZ800L2 (2012) REAR CYLINDER HEAD (VL800T E03) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR

11103-39G60

Unavailable

2

PIN (8.4X11X14)

09206-11004

$4.84

3

GUIDE, VALVE (OS 0.3) | OPT

11115-41F70

$45.97

4

BOLT (6X50)

09103-06304

$2.77

5

BOLT (6X55)

09103-06305

Unavailable

6

GASKET, CYLINDER HEAD REAR

11142-41F00

$36.21

7

BOLT (8X250)

09103-08370

$17.60

8

BOLT (10X155)

09103-10133

$10.32

9

BOLT (10X165)

09103-10134

$10.32

10

WASHER (8.5X24X1.6)

09160-08130

$2.01

11

WASHER (10.5X22X2.3)

09160-10039

$2.24

12

BOLT

01547-0655A

$2.43

13

BOLT

01550-0625A

$1.97

14

BOLT

01550-0630A

$2.31

15

BOLT

01550-0640A

$2.43

16

KNOCK PIN

04211-13189

$2.19

17

BOLT

07120-0630B

$3.19

18

CAP, CYLINDER HEAD COVER RR

11173-41FA0

Unavailable

19

CAP, CYLINDER HEAD COVER RR

11174-41F00

Unavailable

20

CAP, INSPECTION INTAKE

11175-38A11

$26.03

21

CAP, INSPECTION EXHAUST

11176-38A11

$26.03

22

GASKET, INSPECTION CAP

11177-38A00

$4.09

23

SPACER, HEAD COVER CAP

11179-10F10

$13.73

24

COVER, BREATHER

11186-41FB0

Unavailable

25

GASKET, BREATHER COVER

11187-41F20

$8.62

26

STUD BOLT

09108-06102

$4.43

27

WASHER (6.5X18X1.6)

09160-06084

$1.77

28

WASHER (9.5X20X1)

09160-09016

$2.50

29

PLUG (OD:30)

09241-30004

$5.97

30

CUSHION

09320-09016

$1.97

31

CUSHION

09320-13015

$2.80

32

BOLT

01547-0620A

$2.01

33

BOLT

01547-06557

$2.34

34

BOLT

01547-0620A

$2.01

35

NUT

09159-06093

Unavailable

36

SPARK PLUG, DPR7EA-9 (NGK)

09482-00354

$3.04

36

SPARK PLUG, DPR9EA-9 (NGK) | OPT

09482-00330

$2.85

36

SPARK PLUG, X27EPR-U9 (ND) | OPT

09482-00331

$5.77

36

SPARK PLUG, DPR8EA-9 (NGK) | OPT

09482-00334

$2.80

36

SPARK PLUG, X24EPR-U9 (ND) | OPT

09482-00335

$4.90

37

UNION, CYLINDER HEAD JOINT

17891-41F10

$20.75

38

O RING (D:2.4,ID:15.8)

09280-16005

$2.24

39

BUSH

09301-08007

$7.38

40

GASKET (5.8X13X1.2)

09168-06023

$2.01

41

BOLT

07130-0612A

$2.50
