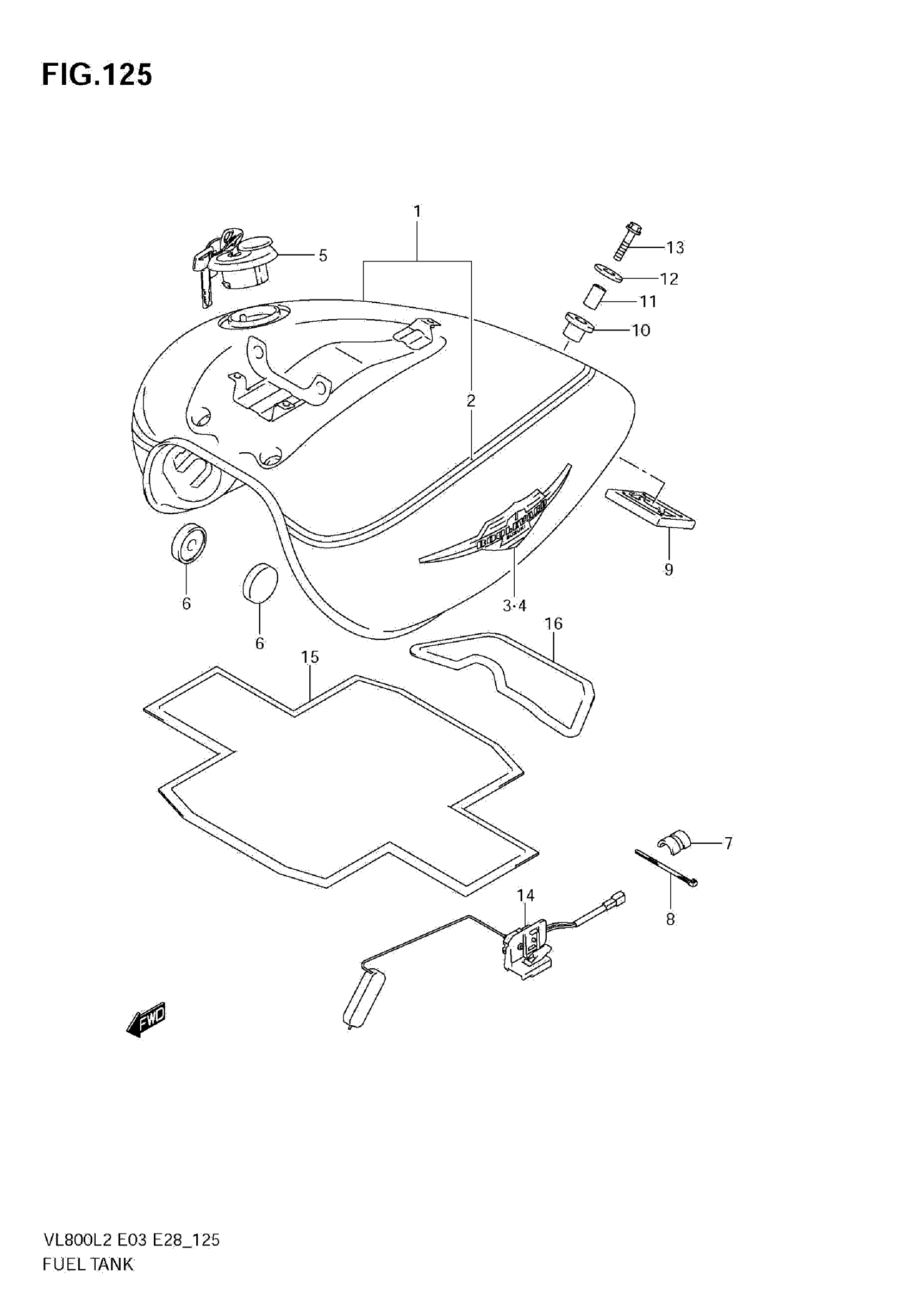

Suzuki VZ800L2 (2012) FUEL TANK (VL800T E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE/BLUE)

44100-43HD0-AAB

Unavailable

1

TANK ASSY, FUEL (RED/SILVER)

44100-43HD0-AAC

$1,264.72

2

TAPE SET (MOONLAND/SILVER) | FOR AAB

68110-41F30-AAD

Unavailable

2

TAPE SET (BLUE/SILVER) | FOR AAC

68110-41F30-AAE

Unavailable

3

EMBLEM, RH

68111-41F31

$71.38

4

EMBLEM, LH

68121-41F31

$71.38

5

CAP SET,FUEL TA This part replaces 44200-41830.

44200-41832

$164.45

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

8

CLAMP (L:248)

09407-25402

$4.64

9

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

10

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

11

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

12

WASHER (8.5X33X1.5)

09160-08146

$2.60

13

BOLT (8X35)

01550-0835A

$3.04

14

GAUGE ASSY,FUEL This part replaces 34810-41F11.

34810-41F12

$112.19

15

SHIELD, HEAT NO.1

44192-39G00

$148.62

16

SHIELD, HEAT NO.2

44191-43H00

$87.70
