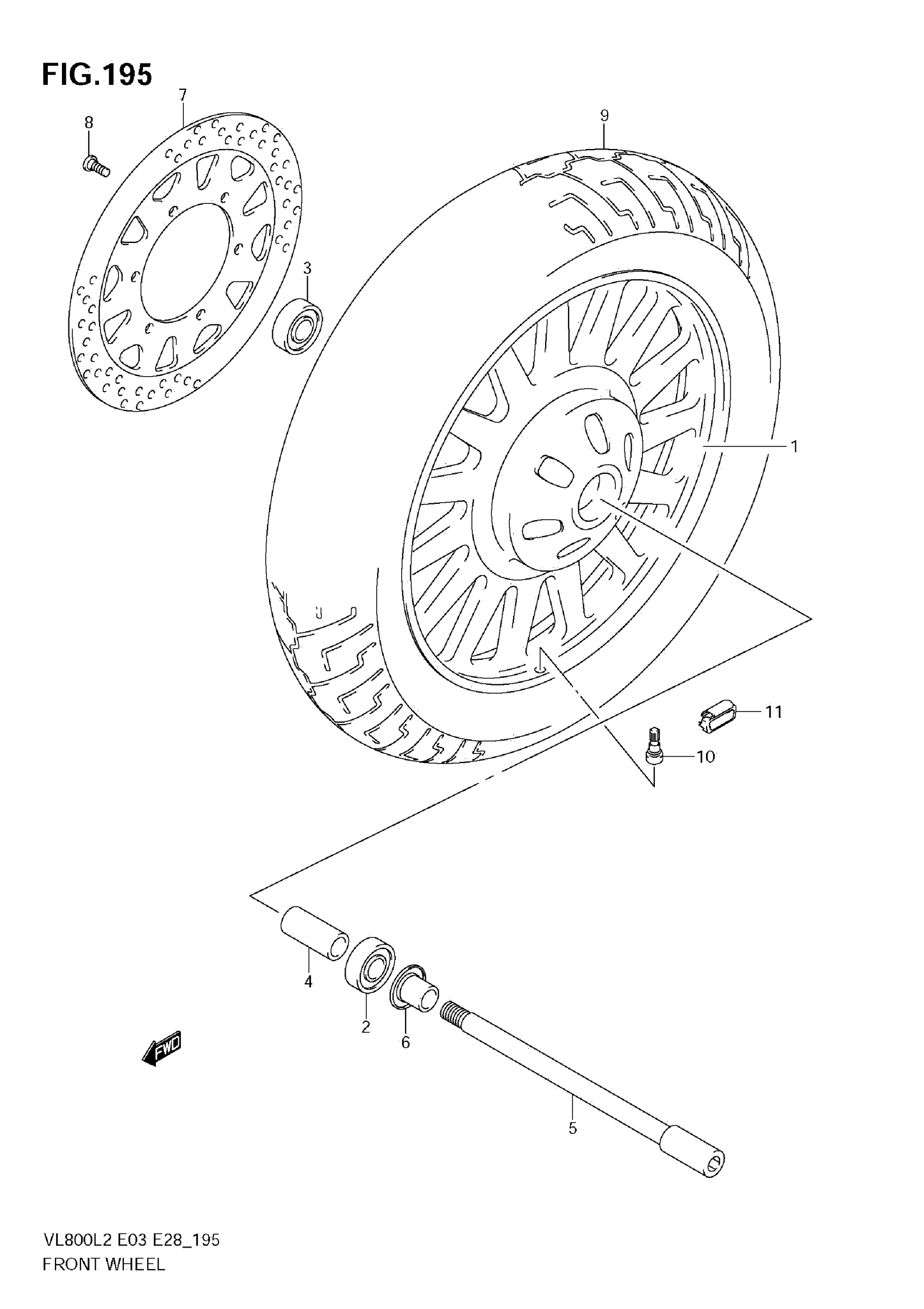

Suzuki VZ800L2 (2012) FRONT WHEEL (VL800C E28) Diagram

#

Description

Price

1

WHEEL, FRONT (16M/CXMT3.00)

54111-41F10-20H

Unavailable

2

BEARING | LH This part replaces 08133-62037.

08133-6203B

$17.61

3

BEARING | RH

08143-62037

$18.47

4

SPACER (17.5X25X102)

09180-17080

$29.57

5

AXLE, FRONT

54711-41F00

$110.67

6

SPACER, AXLE LH

54740-32C00

$18.43

7

DISC, FRONT BRAKE RH

59211-41F00

$361.30

8

BOLT (8X21)

09106-08160

$3.57

9

TIRE,FR(130/90 | GS-23F D This part replaces 55110-41F20.

55110-41F21

Unavailable

10

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

11

BALANCER, WHEEL NO.1

43222-73H10

$5.82

11

BALANCER, WHEEL NO.2

43224-73H10

$5.50

11

BALANCER, WHEEL NO.3

43226-73H10

$6.42
