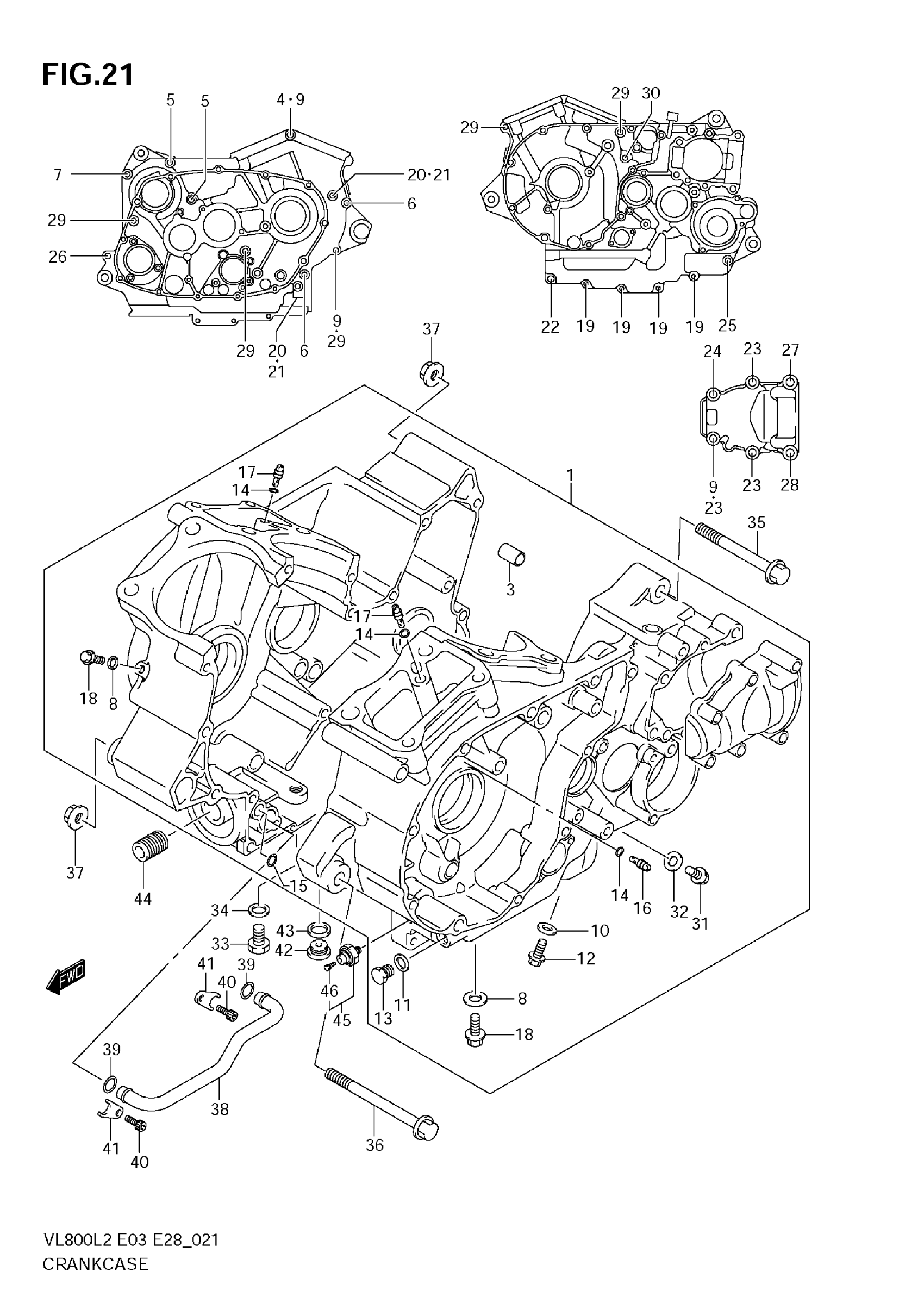

Suzuki VZ800L2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-39830

Unavailable

2

WASHER (48.1X64X1.94) | NOT ILLUSTRATED

09160-48001

Unavailable

2

WASHER (48.1X64X1.96) | NOT ILLUSTRATED

09160-48002

Unavailable

2

WASHER (48.1X64X1.99) | NOT ILLUSTRATED

09160-48003

Unavailable

2

WASHER (48.1X64X2.01) | NOT ILLUSTRATED

09160-48004

Unavailable

2

WASHER (48.1X64X2.04) | NOT ILLUSTRATED

09160-48005

Unavailable

2

WASHER (48.1X64X2.06) | NOT ILLUSTRATED

09160-48006

$30.35

2

WASHER (48.1X64X2.09) | NOT ILLUSTRATED

09160-48007

Unavailable

2

WASHER (48.1X64X2.11) | NOT ILLUSTRATED

09160-48008

Unavailable

2

WASHER (48.1X64X2.14) | NOT ILLUSTRATED

09160-48009

Unavailable

2

WASHER (48.1X64X2.16) | NOT ILLUSTRATED

09160-48010

$30.35

3

PIN (8.4X11X20)

09206-11007

$2.37

4

BOLT (8X160)

09103-08405

Unavailable

5

BOLT (8X120)

09103-08406

Unavailable

6

BOLT (8X105)

09103-08179

Unavailable

7

BOLT (8X95)

09103-08164

$4.77

8

GASKET (5.8X13X1.2)

09168-06023

$2.35

9

GASKET (8.2X14X1)

09168-08016

$1.65

10

GASKET (10X14X3.6)

09168-10002

$2.13

11

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

12

PLUG (10X12)

09247-10008

$1.97

13

PLUG (14X12)

09247-14026

$3.76

14

O RING (D:1.2,ID:4)

09280-04004

$1.91

15

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

16

JET,T/M OIL GALLERY

09493-20014

$16.87

17

JET, OIL GALLERY (14)

09493-28010

$16.57

18

BOLT

01550-0610A

$1.97

19

BOLT

01547-0640A

$2.32

20

BOLT (8X12)

01550-0812A

$2.32

21

GASKET (8.2X14X1)

09168-08016

$1.65

22

BOLT (8X35)

01550-0835A

$3.04

23

BOLT

01550-0840A

$3.05

24

BOLT

01550-0850A

$3.67

25

.BOLT

01550-0855A

$3.05

26

BOLT

01550-0860A

$4.17

27

.BOLT

01550-0855A

$3.05

28

BOLT

01550-0865A

$3.51

29

BOLT (8X95)

09103-08105

$3.87

30

BOLT

01550-0875A

$3.55

31

BOLT (8X12)

09103-08407

Unavailable

32

GASKET (8.2X14X1)

09168-08016

$1.65

33

PLUG (12X20) | OIL DRAIN

09247-12011

$4.64

34

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

35

BOLT (10X135)

09103-10706

$11.48

36

BOLT (10X160)

09103-10705

Unavailable

37

NUT

09159-10113

$4.68

38

PIPE, OIL GALLERY

11451-38A00

Unavailable

39

O RING (D:3.1,ID:14.8)

09280-15008

$2.15

40

BOLT (6X12)

09106-06075

$2.48

41

CLAMP

11461-38A00

Unavailable

42

PLUG (16X12)

09248-16013

$4.82

43

GASKET (16X22X2)

09168-16002

$1.91

44

UNION,OIL STAND

16591-06B01

$7.05

45

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

46

BOLT

37822-33D00

$4.35
