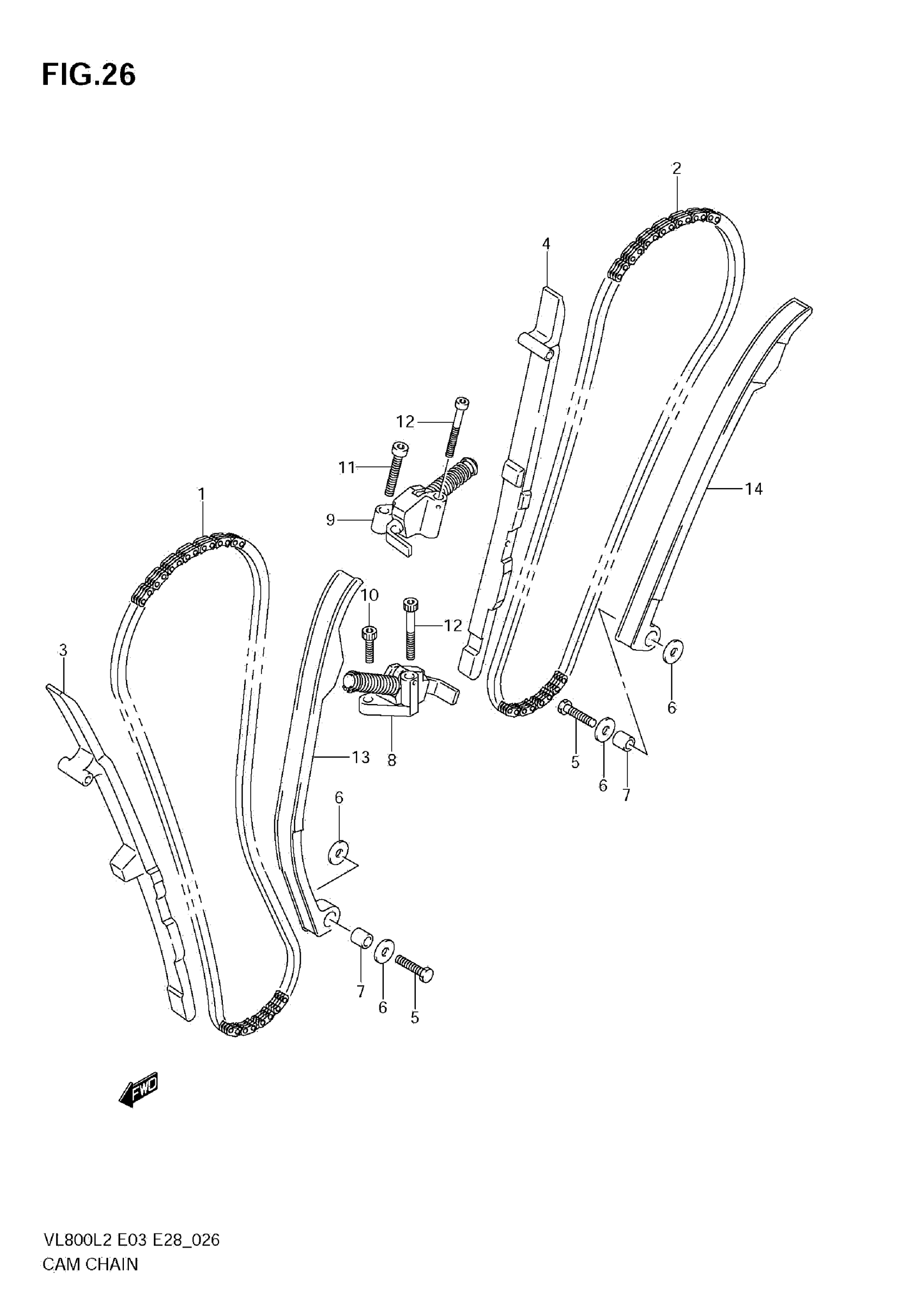

Suzuki VZ800L2 (2012) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE FRONT

12760-41F01

$185.62

2

CHAIN, CAM SHAFT DRIVE REAR

12760-38A21

$187.13

3

GUIDE,CAM CHAIN FRONT This part replaces 12772-41F00.

12772-41F01

$44.00

4

GUIDE,CAM CHAIN REAR This part replaces 12771-41F00.

12771-41F01

$44.90

5

BOLT (6X26)

09100-06129

$2.38

6

WASHER

08211-06182

$1.92

7

SPACER (6X11X11)

09180-06148

Unavailable

8

ADJUSTER ASSY, TENSIONER FRONT

12831-38A01

$150.35

9

ADJUSTER ASSY, TENSIONER REAR

12832-41F01

$150.35

10

BOLT

07130-0620A

$2.50

11

BOLT

07130-0630A

$3.72

12

BOLT

07130-0645A

Unavailable

13

TENSIONER,CAM CHAIN FRONT This part replaces 12811-41F00.

12811-41F01

$45.45

14

TENSIONER, CAM CHAIN REAR

12816-38A01

$60.97
