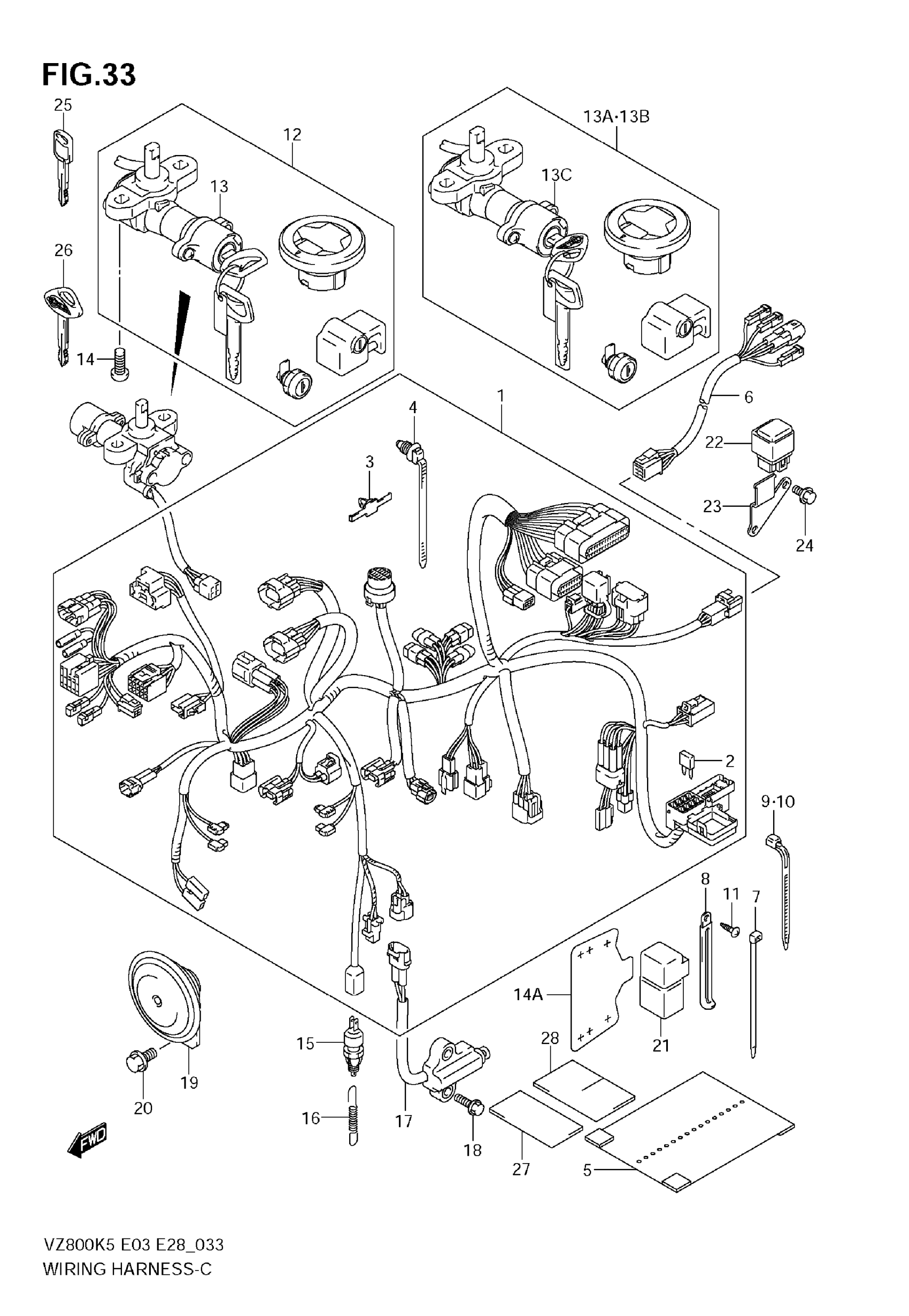

Suzuki VZ800 (2009) WIRING HARNESS (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

HARNESS,WIRING | MODEL K5 E3,E28,E33 This part replaces 36610-39G30.

36610-39G31

Unavailable

1

HARNESS,WIRING | MODEL K6 E3,E28 This part replaces 36610-39G30.

36610-39G31

Unavailable

1

HARNESS, WIRING | MODEL K6 E33

36610-39G40

Unavailable

1

HARNESS,WIRING | MODEL K7/K8 E3,E28,E33; Includes Item(s) 2 - 4 This part replaces 36610-39G80.

36610-39G81

$912.22

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

CLAMP

09407-05410

Unavailable

4

CLAMP

09407-17403

$4.91

5

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

6

WIRE,REAR COMB This part replaces 36858-39G00.

36858-39G01

$90.23

7

CLAMP (L:145)

09407-14407

$3.57

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

8

CLAMP (L:135)

09404-06435

$3.68

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:190)

09407-19401

$3.05

11

SCREW

03541-0410B

$1.98

12

LOCK SET | MODEL K5

37100-41880

Unavailable

12

LOCK SET | MODEL K5 E33; Includes Item(s) 13

37100-41890

Unavailable

13

LOCK ASSY, STEERING | MODEL K5

37100-41F90

Unavailable

13A

LOCK SET | MODEL K6/K7/K8 This part replaces 37101-41890.

37101-41893

$405.56

13B

LOCK SET | MODEL K6/K7/K8 E33; Includes Item(s) 13C

37102-41810

Unavailable

13C

.LOCK ASSY,STEERING | MODEL K6/K7/K8 This part replaces 37100-41F70.

37100-41F71

$152.57

14

SCREW, STEERING LOCK

09139-08016

$3.37

14A

PROTECTOR, IGNITION SWITCH

37187-41F10

$12.17

15

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

16

SPRING, STOP LAMP

09443-06073

$3.42

17

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

18

BOLT | MODEL K5 This part replaces 01550-06203.

01550-0620A

$1.97

18

BOLT | MODEL K6/K7/K8

09103-06279

Unavailable

19

HORN ASSY | MODEL K5/K6

38500-41F10

Unavailable

19

HORN ASSY | MODEL K7/K8

38500-41F20

$74.56

20

BOLT

01550-0816B

$2.73

21

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

22

RELAY ASSY, HEAD LAMP | MODEL K7

38740-24A00

$63.30

23

BRACKET, HEAD LAMP | MODEL K7

38741-39G00

Unavailable

24

BOLT, BRACKET | MODEL K7

01550-0612B

$2.39

25

KEY, BLANK | OPT

37146-41F10

$24.93

26

KEY, BLANK "BOULEVARD" | OPT

37146-41FA0

$50.63

27

TAPE,HARNESS (28X50X0.13) | 28X50X0.13

36611-16G00

$3.03

28

TAPE, WIRING HARNESS | 30X50X3.0

36920-33C00

Unavailable
