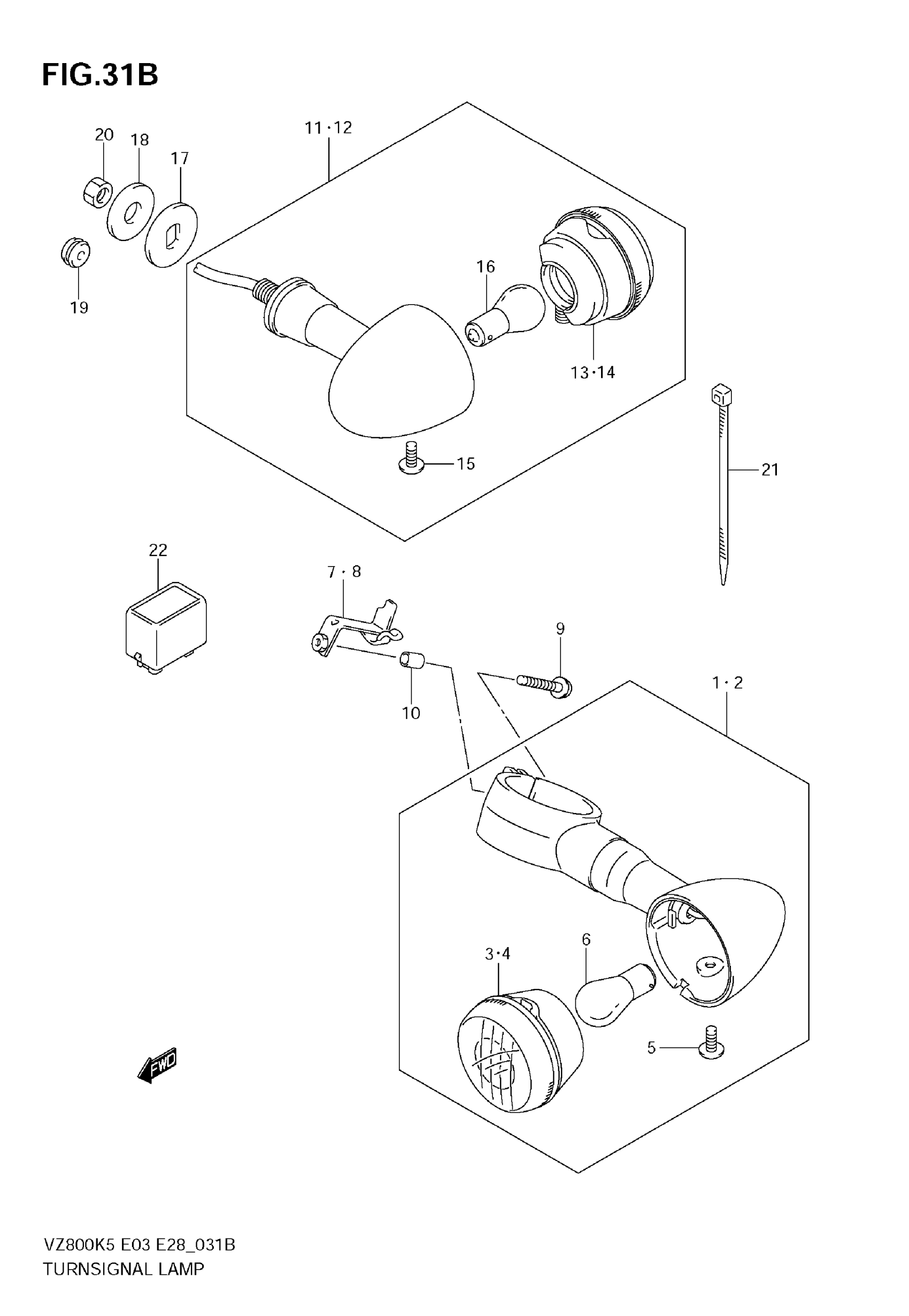

Suzuki VZ800 (2009) TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9) Diagram

#

Description
Price

1

FRONT TURNSIGNAL ASSY, RH

35601-48EB0

$216.60

2

FRONT TURNSIGNAL ASSY, LH | Includes Item(s) 3 - 6

35602-48EB0

$154.34

3

LENS | FOR RH

35610-48EB0

$56.78

4

LENS | FOR LH

35630-48EB0

$58.95

5

SCREW

35623-38AA0

$4.67

6

BULB (12V23/8W) | FOR AMBER

09471-12224

$43.65

7

BRACKET, FRONT, RH

35671-39G00

$9.50

8

BRACKET, FRONT, LH

35681-39G00

$9.50

9

SCREW

09136-06082

$2.13

10

SPACER (6.4x9.2x12)

09180-06121

$2.17

11

LAMP ASSY, REAR RH

35603-38AF0

$179.57

12

LAMP ASSY,RR TURNSIGNAL LH | Includes Item(s) 13 - 16 This part replaces 35604-38AF0.

35604-38AF1

$119.88

13

LENS | FOR RH

35630-38AF0

$56.78

14

LENS | FOR LH

35610-38AF0

$56.78

15

SCREW

35623-38AA0

$4.67

16

BULB (12V21W) | FOR AMBER

09471-12186

$16.18

17

SPACER, REAR TURNSIGNAL

35695-17C00

$3.69

18

WASHER (10.5X30X2.3)

09160-10501

$2.33

19

GROMMET

09308-05015

$2.25

20

NUT

08310-0010B

$2.95

21

CLAMP (L:145)

09407-14407

$2.80

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
