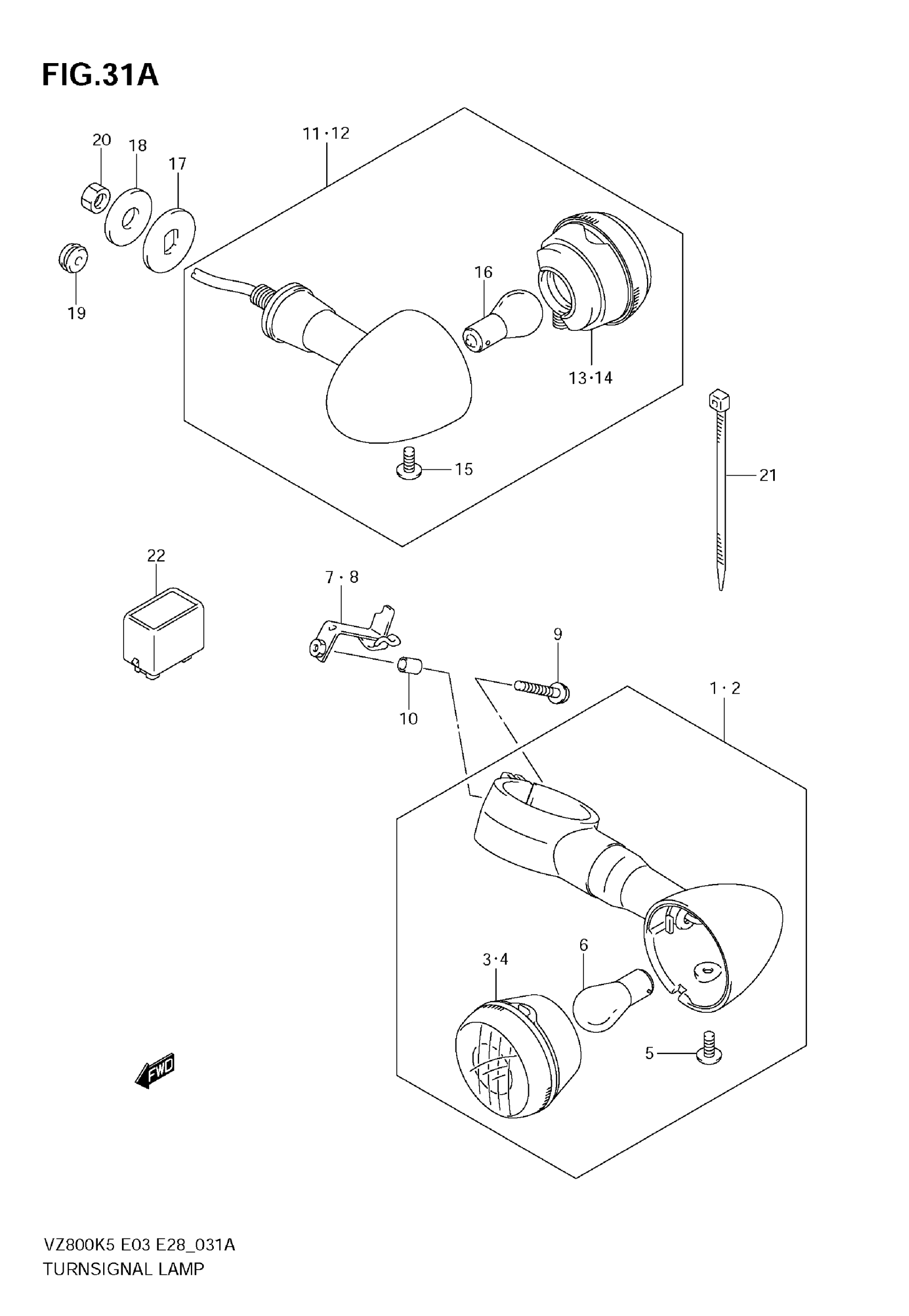

Suzuki VZ800 (2009) TURNSIGNAL FRONT & REAR LAMP (VZ800K9) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-48E70

$171.20

2

LAMP ASSY,FRONT TURNSIGNAL,L | Includes Item(s) 3 - 6

35602-48E70

$174.42

3

LENS | FOR RH

35610-38AA0

$30.10

4

LENS | FOR LH

35630-38AA0

$30.53

5

SCREW

35623-38AA0

$4.89

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.26

7

BRACKET, FRONT, RH

35671-39G00

$9.50

8

BRACKET, FRONT, LH

35681-39G00

$9.50

9

SCREW

09136-06082

$2.67

10

SPACER (6.4x9.2x12)

09180-06121

$2.17

11

LAMP ASSY,RR TU This part replaces 35603-38AE0.

35603-38AE1

$114.57

12

LAMP ASSY,RR TURNSIGNAL LH | Includes Item(s) 13 - 16 This part replaces 35604-38AE0.

35604-38AE1

$113.63

13

LENS | FOR RH

35630-38AE1

$30.53

14

LENS | FOR LH

35610-38AE1

$30.10

15

SCREW

35623-38AA0

$4.89

16

BULB (12V21W)

09471-12045

$3.06

17

SPACER, REAR TURNSIGNAL

35695-17C00

$3.86

18

WASHER (10.5X30X2.3)

09160-10501

$2.40

19

GROMMET

09308-05015

$2.23

20

NUT

08310-0010B

$2.95

21

CLAMP (L:145)

09407-14407

$2.84

22

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$85.27
