Description

Price

1

BODY ASSY,THROT | E3,E28 This part replaces 13401-41F20.

13401-41F23

$753.69

1

BODY, THROTTLE | E33; Includes Item(s) 2 - 16 This part replaces 13401-41F30.

13401-41F32

$1,065.28

2

PLATE, STAY

13565-41F20

Unavailable

3

SCREW

13601-21H00

Unavailable

4

SCREW

13269-18G00

$11.83

5

SPRING

13271-43E00

Unavailable

6

WASHER

13291-26E00

$2.93

7

O RING

13295-26E00

$4.34

8

.VALVE ASSY, ISC This part replaces 18117-15H10.

18117-15H12

$362.80

9

O RING

18119-05H00

$3.95

10

PLATE, STAY

13428-15H00

Unavailable

11

SCREW

13605-15H00

$7.12

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

$249.45

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F00.

13580-41F02

$137.27

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

BAND

09407-14407

$3.57

17

INJECTOR ASSY

15710-26GA0

$263.01

18

.O-RING

15721-21H00

$9.09

19

.RING,SEAL

15722-21H00

$11.25

20

SCREW

13602-34F50

$3.65

21

PIPE SET, FUEL FR

13473-41FA0

$77.10

22

.O-RING

15721-24F00

$9.09

23

PIPE SET, FUEL RR

13473-41FB0

$103.83

24

SCREW

13602-10F10

$3.70

25

JOINT

13473-41FC0

$13.62

26

O-RING

15721-10G00

$9.09

27

PLUG, STRAIGHT

13474-41F20

$6.88

28

O-RING

15721-41F20

$22.38

29

PLATE

13475-41F20

$5.58

30

HOSE

13683-41FA0

$23.47

31

HOSE

13683-41FD0

Unavailable

32

SENSOR, PRESSURE

18591-42F00

$301.32

33

HOLDER

18595-42F20

Unavailable

34

BRACKET, BOOST SENSOR FR

18598-41F00

Unavailable

35

BRACKET, BOOST SENSOR RR

18599-39G00

Unavailable

36

TUBE, RUBBER | E33

13683-41FC1

Unavailable

37

TUBE,RUBBER | E33 This part replaces 13682-41F30.

13682-41F31

$15.48

38

CLIP | E33

13693-24F00

$3.22

39

.NIPPLE | E33

13685-48B00

$12.15

40

VALVE, CANISTER | E33

18117-52G00

$149.32

41

BRACKET, VALVE | E33

18119-39G00

Unavailable

42

BOLT | E33

01550-0612B

$2.39

43

NUT | E33

08316-1006A

$2.19

44

HOSE, CANISTER PURGE | E33

13680-39G00

Unavailable

45

CLIP (ID:10.5,H:8) | E33

09401-10409

$2.26

46

CLAMP | E33

44480-41F00

Unavailable

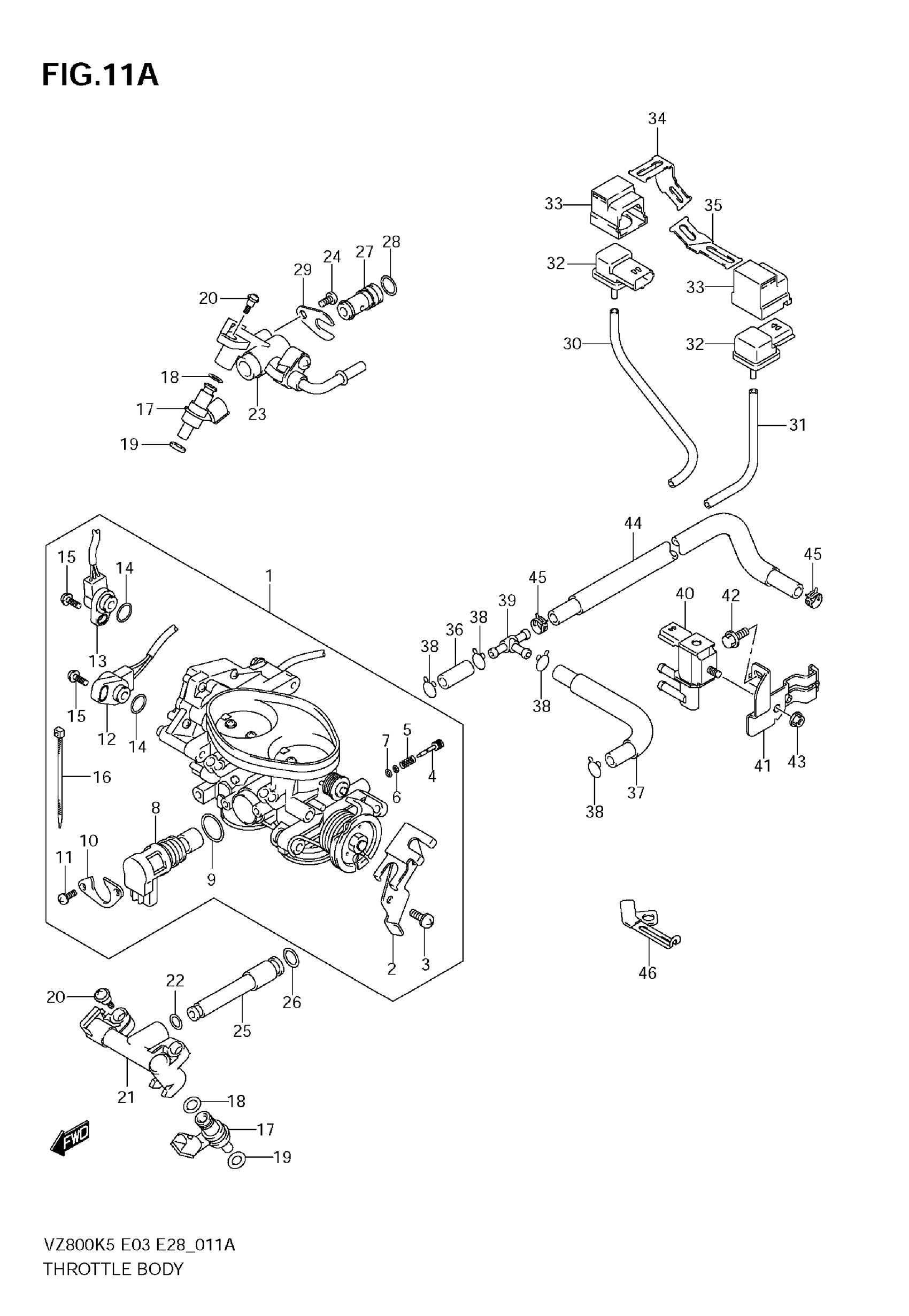

Suzuki VZ800 (2009) THROTTLE BODY (MODEL K9) Diagram

BODY ASSY,THROT | E3,E28 This part replaces 13401-41F20.

BODY, THROTTLE | E33; Includes Item(s) 2 - 16 This part replaces 13401-41F30.

PLATE, STAY

SCREW

SCREW

SPRING

WASHER

O RING

.VALVE ASSY, ISC This part replaces 18117-15H10.

O RING

PLATE, STAY

SCREW

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F00.

O RING

SCREW

BAND

INJECTOR ASSY

.O-RING

.RING,SEAL

SCREW

PIPE SET, FUEL FR

.O-RING

PIPE SET, FUEL RR

SCREW

JOINT

O-RING

PLUG, STRAIGHT

O-RING

PLATE

HOSE

HOSE

SENSOR, PRESSURE

HOLDER

BRACKET, BOOST SENSOR FR

BRACKET, BOOST SENSOR RR

TUBE, RUBBER | E33

TUBE,RUBBER | E33 This part replaces 13682-41F30.

CLIP | E33

.NIPPLE | E33

VALVE, CANISTER | E33

BRACKET, VALVE | E33

BOLT | E33

NUT | E33

HOSE, CANISTER PURGE | E33

CLIP (ID:10.5,H:8) | E33

CLAMP | E33
