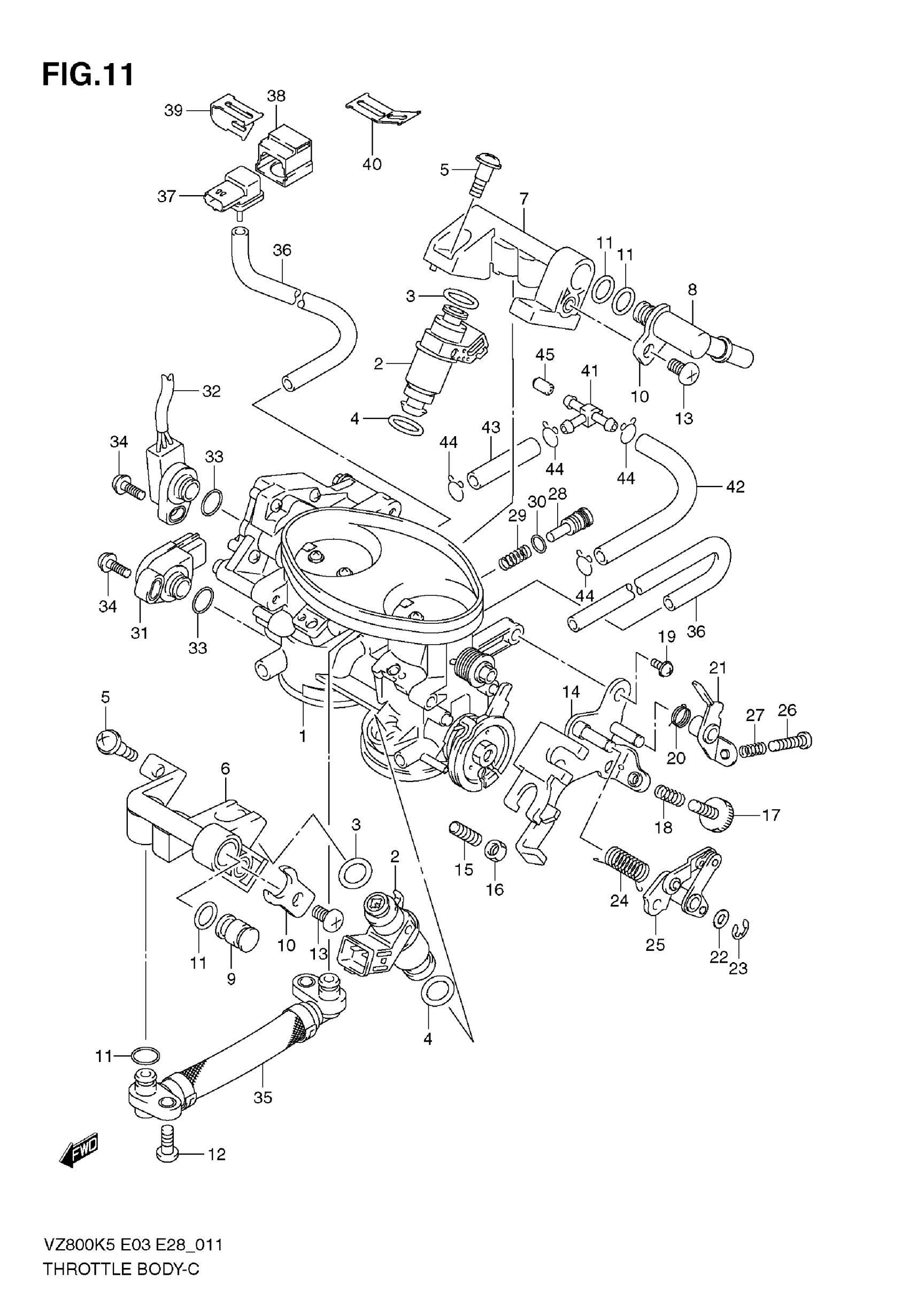

Suzuki VZ800 (2009) THROTTLE BODY (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

THROTTLE BODY K | E3,E28 This part replaces 13401-41F00.

13401-41F01

$1,078.80

1

BODY, THROTTLE | E33

13401-41F10

Unavailable

2

INJECTOR ASSY

15710-14G00

$255.33

3

O-RING

15721-10G00

$9.09

4

O RING

15722-10G00

$11.25

5

SCREW, THROTTLE COVER

13602-34F50

$3.65

6

PIPE, FUEL

13471-10F00

$40.98

7

PIPE, FUEL

13471-10F10

$44.97

8

JOINT

13473-41F00

$121.77

9

PLUG

13476-10F00

Unavailable

10

PLATE

13428-10F00

Unavailable

11

.O-RING

15721-24F00

$9.09

12

SCREW

13602-10F00

Unavailable

13

SCREW

13602-10F10

$3.70

14

PLATE, STAY

13565-41F00

Unavailable

15

SCREW

13267-10G00

Unavailable

16

NUT

13661-10G00

Unavailable

17

SCREW, IDLE

13605-10F00

Unavailable

18

SPRING

13268-35F00

$4.57

19

SCREW

13601-10G00

Unavailable

20

SPRING

13426-35F10

Unavailable

21

LINK LEVER

13414-40F00

Unavailable

22

WASHER

13427-35F10

Unavailable

23

E CLIP

13424-35F10

$3.78

24

SPRING

13426-40F00

Unavailable

25

LEVER SET, LINK

13420-40F20

Unavailable

26

STOP SCREW

13602-10F20

Unavailable

27

SPRING

13543-24F00

Unavailable

28

ADJUST SCREW

13279-10G00

Unavailable

29

SPRING

13271-10G00

Unavailable

30

O RING

13295-10G00

$4.10

31

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F20.

13580-40F22

$249.45

32

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F00.

13580-41F02

$137.27

33

O RING

13575-40F00

$4.09

34

SCREW

13605-40F00

$3.71

35

PIPE ASSY, FUEL

13680-10F00

$114.08

36

HOSE

13683-41FA0

$23.47

37

SENSOR, PRESSURE

18591-42F00

$301.32

38

HOLDER

18595-42F20

Unavailable

39

BRACKET, BOOST SENSOR FRONT

18598-41F00

Unavailable

40

BRACKET, BOOST SENSOR REAR

18599-39G00

Unavailable

41

.NIPPLE | E33

13685-48B00

$12.15

42

HOSE | E33

13683-41FB1

Unavailable

43

HOSE | E33

13683-41FC1

Unavailable

44

CLIP | E33

13693-24F00

$3.22

45

PIPE, PURGE HOSE | E33

13685-10F00

Unavailable
