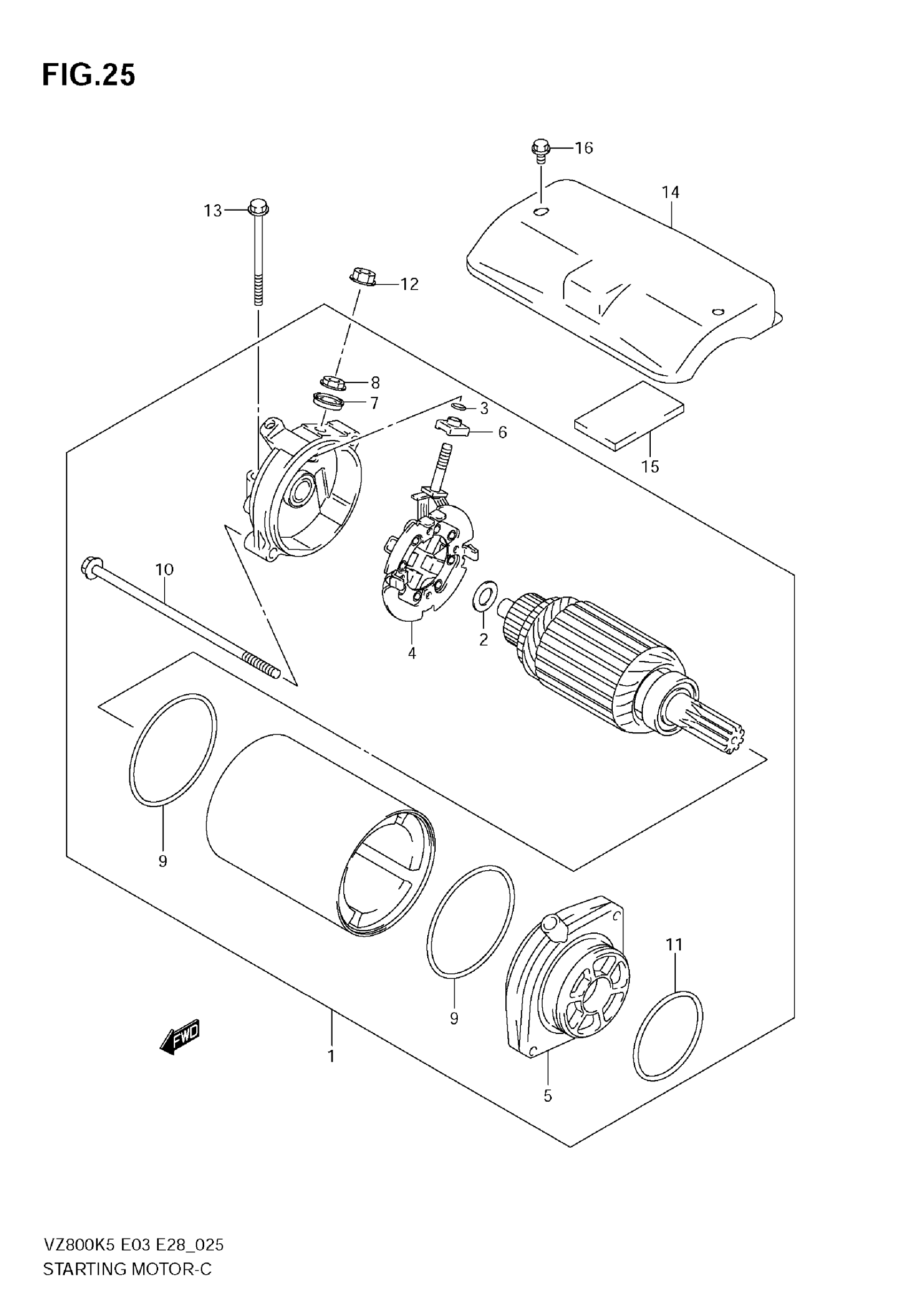

Suzuki VZ800 (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING | Includes Item(s) 2 - 11 This part replaces 31100-45C01.

31100-45C02

$565.07

2

WASHER

31170-43400

Unavailable

3

O RING

31143-38300

$5.10

4

BRUSH HOLDER SET (-)

31132-45C00

$71.38

5

BRACKET SET

31150-38A00

Unavailable

6

BUSHING

31172-38300

$6.55

7

BUSHING

31173-88C00

Unavailable

8

.NUT

08310-00067

$2.13

9

O RING

31264-44110

$11.87

10

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

11

O RING

31156-38A00

$12.47

12

NUT

08361-3506A

$1.80

13

BOLT (6X60)

09103-06261

$3.16

14

COVER, STARTING MOTOR

31210-41F00

$17.43

15

DAMPER, MOTOR COVER

31212-38A10

Unavailable

16

BOLT, COVER

01547-0508B

$2.97
