Description

Price

1

STAND, PROP

42310-39G00

$197.15

2

BOLT

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING, INNER

09443-14066

$5.50

5

SPRING, OUTER

09443-19012

$5.89

6

PEDAL, BRAKE

43110-41F00

$120.78

7

ARM, BRAKE ROD

43120-41F00

$52.65

8

BOLT, ARM

07120-0625A

$2.50

9

SPRING, RETURN

09443-12049

$10.09

10

BOLT, ADJUSTER

01500-06207

$2.28

11

.NUT

08310-00067

$2.13

12

PIN (6X18.2) | MODEL K5/K6 This part replaces 09200-06037.

09200-06068

$4.11

12

PIN | MODEL K7/K8/K9

09200-06068

$4.11

13

WASHER

08322-0106B

$2.26

14

COTTER PIN

04111-2015A

$1.49

15

ROD, FRONT

43130-41F00

$62.07

16

LINK, REAR BRAKE

43140-41F00

$61.15

17

SHAFT, BRAKE PEDAL

43142-27C00

$23.07

18

RUBBER,BRAKE LINK This part replaces 43151-41F00.

43151-41F01

$8.62

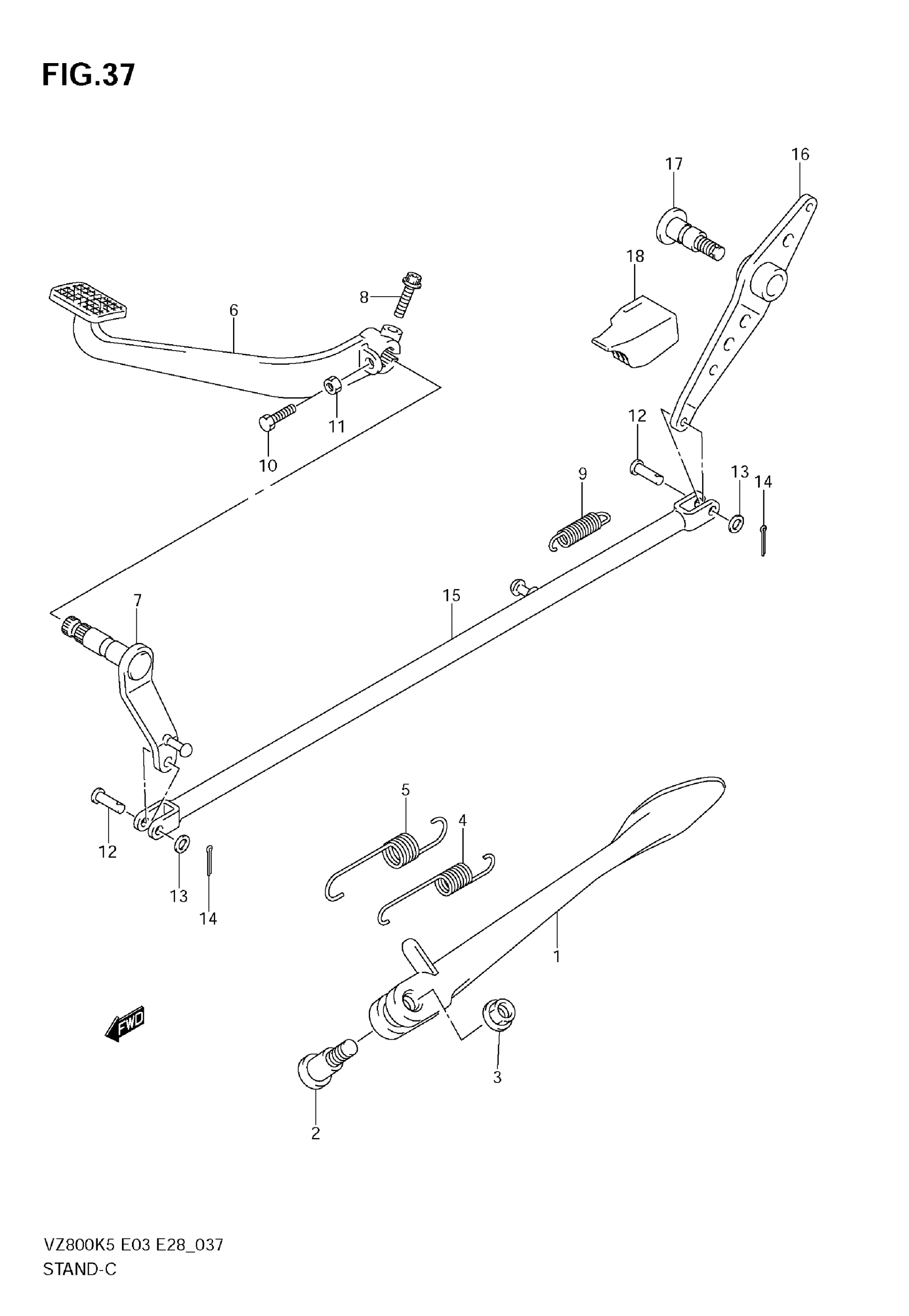

Suzuki VZ800 (2009) STAND - REAR BRAKE Diagram
