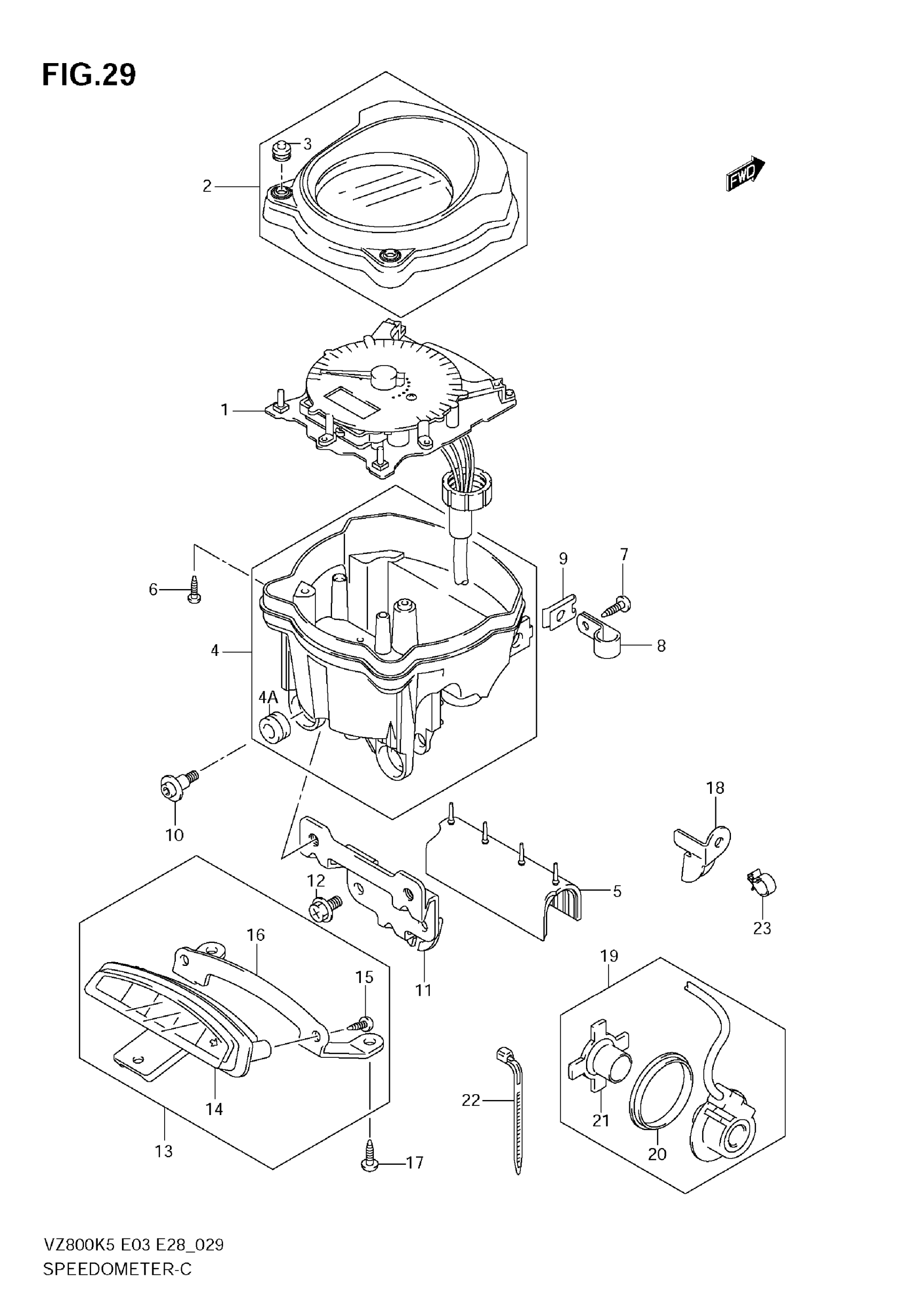

Suzuki VZ800 (2009) SPEEDOMETER (MODEL K5/K6/K7/K8) Diagram

#

Description
Price

1

SPEEDOMETER | VZ800K5/K6 This part replaces 34120-39G10.

34120-39G11

Unavailable

1

SPEEDOMETER | VZ800K7/K8

34120-39G30

Unavailable

1

SPEEDOMETER | VZ800ZK7

34120-39G50

Unavailable

1

SPEEDOMETER | VZ800ZK8

34120-39G70

Unavailable

1

SPEEDOMETER | VZ800K5/K6 E28

34120-39G00

Unavailable

1

SPEEDOMETER | VZ800K7/K8 E28

34120-39G20

Unavailable

1

SPEEDOMETER | VZ800ZK7 E28

34120-39G40

Unavailable

1

SPEEDOMETER | VZ800ZK8 E28

34120-39G60

Unavailable

2

CASE ASSY, UPPER | Includes Item(s) 3

34150-39G00

Unavailable

3

SWITCH, RUBBER

34124-39G00

$8.42

4

CASE ASSY, LOWER | Includes Item(s) 4A

34111-39G00

Unavailable

4A

CUSHION, METER

34955-33E00

$3.56

5

ATTACHMENT, RUBBER

34188-39G00

Unavailable

6

SCREW (3X16)

34383-35F00

$3.23

7

SCREW (4x12)

03541-0412A

$1.49

8

CLAMP

34176-19F20

Unavailable

9

NUT COWL

94484-24F00

$4.03

10

SCREW, SPEEDOMETER

34149-18G00

$2.53

11

BRACKET, SPEEDOMETER

34162-39G00

Unavailable

12

SCREW, BRACKET

02162-0612B

$2.19

13

BOX ASSY, PILOT LAMP | MODEL K5/K6

36380-39G00

Unavailable

13

BOX ASSY, PILOT LAMP | MODEL K7/K8; Includes Item(s) 14 - 16 This part replaces 36380-39G10.

36380-39G11

$221.93

14

CASE UNIT | MODEL K5/K6

36381-39G00

Unavailable

14

.CASE UNIT | MODEL K7/K8 This part replaces 36381-39G10.

36381-39G11

Unavailable

15

SCREW

03241-0512A

$1.49

16

BRACKET

36386-39G00

Unavailable

17

SCREW, PILOT BOX

03511-0512B

$2.26

18

GUIDE

34938-39G00

Unavailable

19

SENSOR, SPEED | Includes Item(s) 20 - 21

34990-39G00

$258.98

20

SEAL

09286-44001

$11.67

21

MAGNET

34983-27G00

$32.36

22

CLAMP (L:145)

09407-14407

$3.57

23

CLIP, SENSOR LEAD

09403-06410

$2.53
