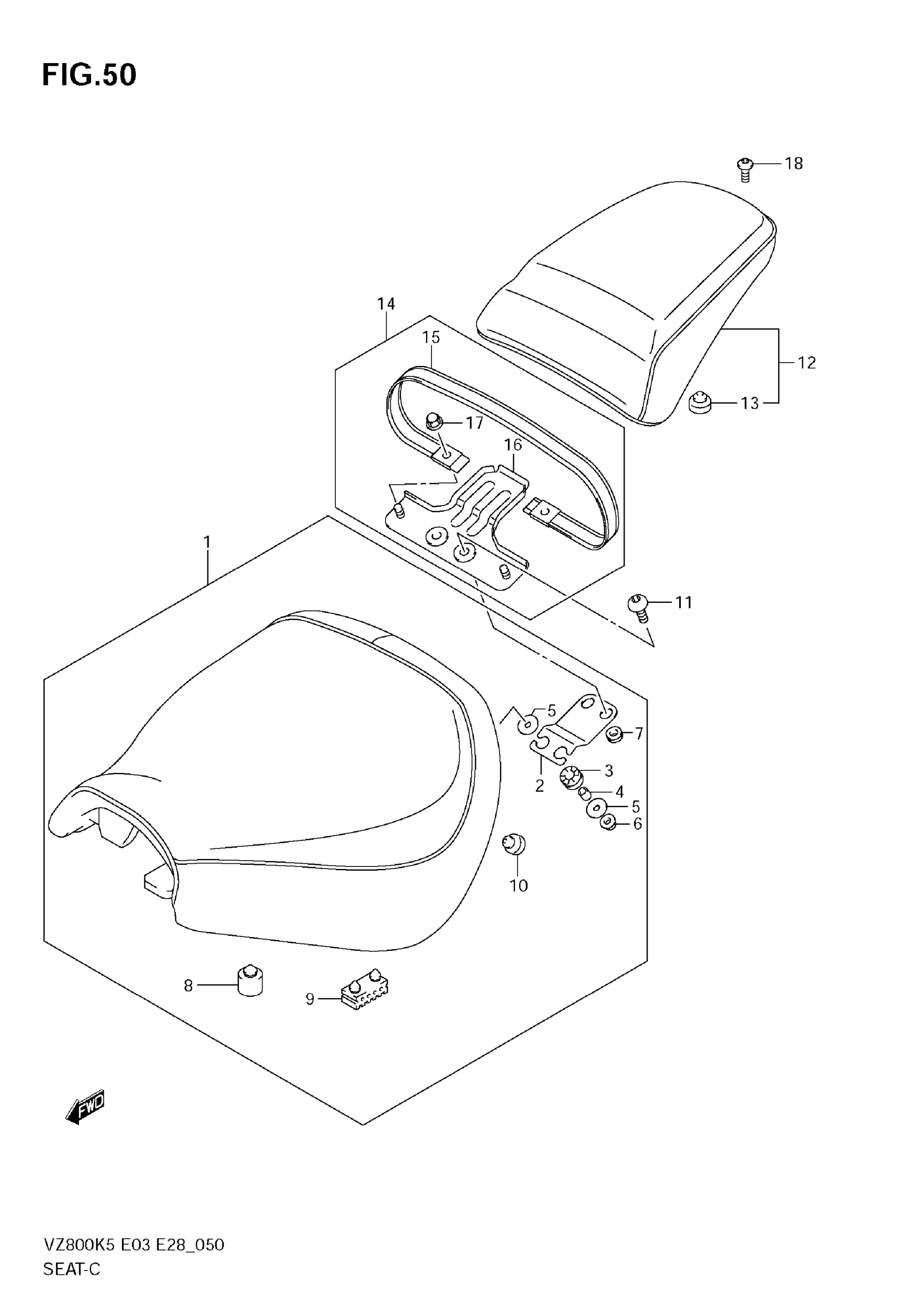

Suzuki VZ800 (2009) SEAT (VZ800) Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 10 This part replaces 45100-39G00-48H.

45100-39G01-48H

$349.37

2

BRACKET, SEAT

45115-39G00

Unavailable

3

CUSHION

45149-41F00

$10.45

4

SPACER

09180-07004

$2.30

5

WASHER

09160-06501

$1.86

6

NUT

08316-1006B

$2.50

7

CUSHION, SEAT BRACKET

09320-10057

$4.52

8

CUSHION, FRONT

09321-10039

$5.35

9

CUSHION, CENTER

45149-31300

$3.56

10

CUSHION, REAR

09321-10002

$2.22

11

BOLT, REAR (8X16)

09106-06064

$6.02

12

SEAT ASSY,PILLI | Includes Item(s) 13 This part replaces 45300-39G00-48H.

45300-39G01-48H

$236.85

13

CUSHION

09321-10002

$2.22

14

BAND ASSY,SEAT | Includes Item(s) 15 - 17 This part replaces 45180-39G00-P21.

45180-39G01-P21

$57.50

15

BAND This part replaces 45181-39G00.

45181-39G01

$27.42

16

BRACKET, SEAT BAND

45185-39G00

$45.37

17

NUT

08313-2006B

$2.85

18

BOLT, REAR (8X16)

09106-08140

$6.38
