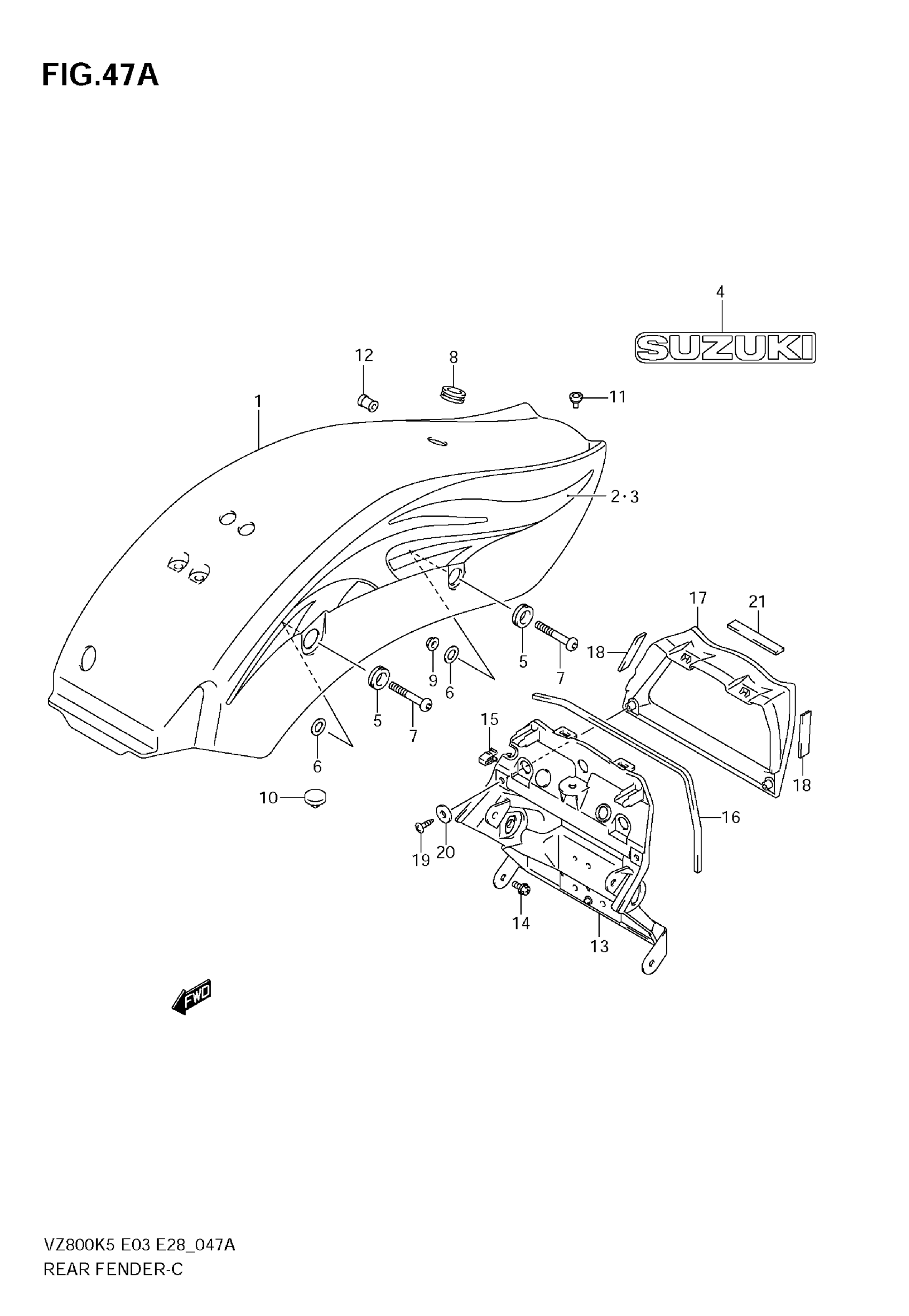

Suzuki VZ800 (2009) REAR FENDER (VZ800ZK7) Diagram

#

Description
Price

1

FENDER,REAR FRO | Includes Item(s) 2 - 4 This part replaces 63110-39GA0-YHG.

63110-39GA1-YHG

Unavailable

2

TAPE, RH

68175-39GA0-DLY

Unavailable

3

TAPE, LH

68176-39GA0-DLY

Unavailable

4

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

5

CUSHION

47191-24F00

$5.09

6

WASHER

09160-15002

$1.76

7

BOLT

63161-41F00

$9.25

8

CUSHION, PILLION SEAT

09320-15008

$3.69

9

NUT This part replaces 08316-10083.

08316-1008B

$2.74

10

CUSHION, UPPER NO.1

63114-39G00

Unavailable

11

CUSHION This part replaces 09321-08022.

09321-08026

$0.74

12

CUSHION, GRIP

63119-39G00

Unavailable

13

FENDER, REAR This part replaces 63112-39G01.

63112-39G02

$62.54

14

BOLT

09111-06090

$2.71

15

CLIP

09409-08326

$2.53

16

CUSHION, REAR

63116-39G00

$6.88

17

COVER, REAR FENDER

63113-39G00

Unavailable

18

CUSHION, COVER

63117-39G00

$5.27

19

SCREW This part replaces 03541-05163.

03541-0516A

$1.41

20

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

21

CUSHION, FENDER REAR

63118-39G00

$5.43
